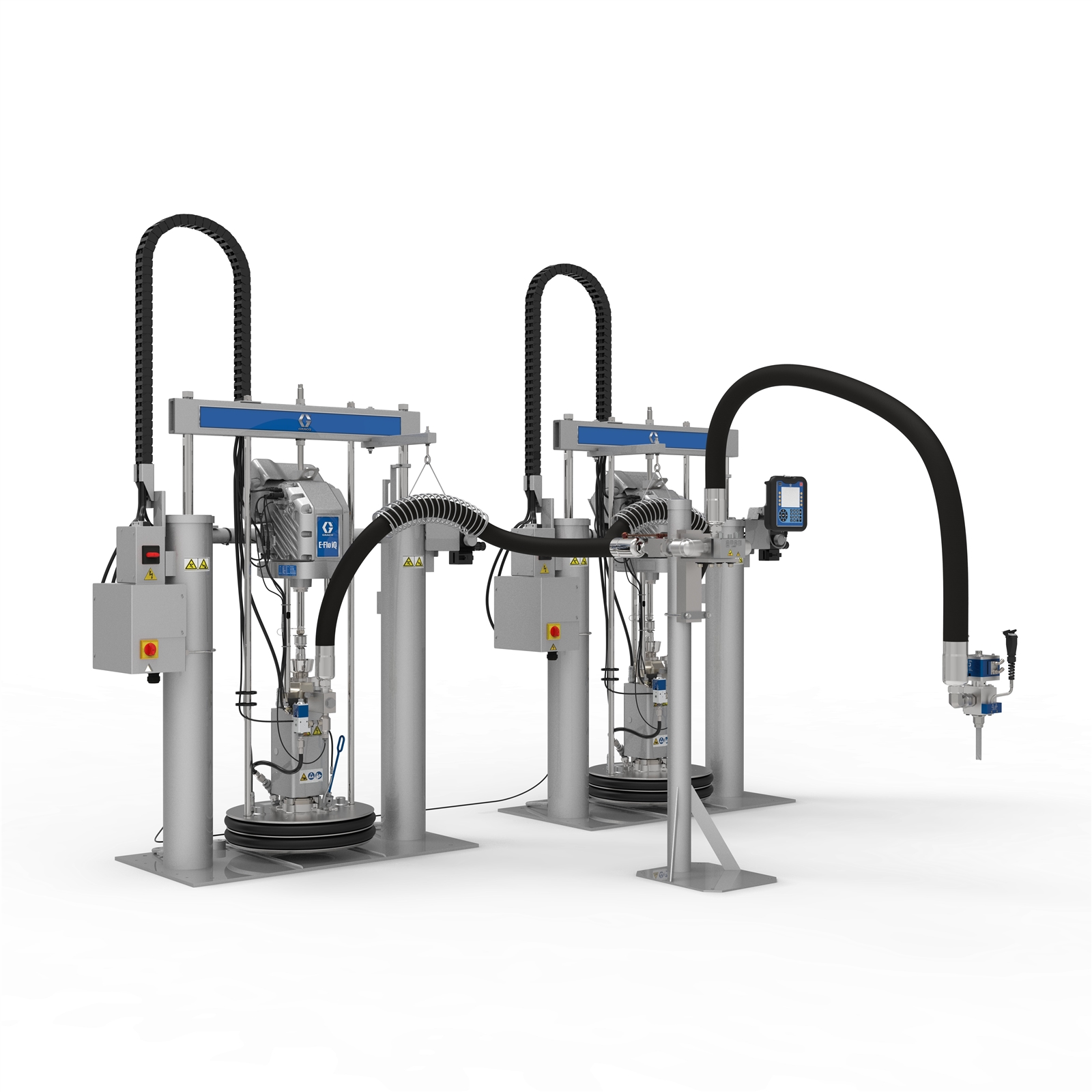

Tandem E-Flo iQ System for Urethanes, Check-Mate 200cc, Heated 55 Gal., D200s, two 20 ft hoses, 20 ft hose (WIP)

GG 26B560

E-FLO IQ SYSTEM, IQU, TDM, 1H20, 2H20

Graco 26B560 Tandem E-Flo iQ System for Urethanes, Check-Mate 200cc, Heated 55 Gal., D200s, two 20 ft hoses, 20 ft hose (WIP)

The E-Flo iQ Metering & Dispensing System our tank-to-tip metering system for single component urethanes. This dispensing solution was designed to meter directly from the drum, making it an intelligent system that delivers sustained in-plant performance, minimizes maintenance costs and reduces system complexity.

• Tandem Heated E-Flo iQ Urethane Supply Sytem
  • Delivers consistent control and accurate performance
  • Quiet electric servo-driven motor for lower sound levels
  • Provides continuous dispensing without the need to reload
  • Check-Mate Severe Duty lower for long life and reliable material movement
• High-Quality Hoses
  • Graco heated hoses are insulated for an accurate and uniform material temperature.
  • Equipped with a total of 60 ft of hose (two 20 ft hoses for pumps to manifold and one 20 ft hose from manifold to valve)
• Axial Rotating Dispense Valves Suited for Urethane Dispense
  • Triangular head ideal for urethane and sealant dispense for automotive window and windshield glazing
  • Delivers reliable and consistent beads in high flow applications
  • Compact and lightweight design allows for lower payload
  • Rotating valve prevents twining and reduces wear
  • Remote mounted solenoid

• Air Inlet Size (in): 1
• Air Inlet Size (mm): 25

• Ambient/Warm Melt/Hot Melt: Warm Melt
• Applicator Type: Rotating Ball/Seat

• Configuration: Tandem

• Container Size: Drum

• Fluid Outlet Size (cm): 2.54
• Fluid Outlet Size (in): 1.0
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT

• Gateway: EtherNet/IP User Interface, PROFINET User Interface, PROFIBUS User Interface, DeviceNet User Interface

• Input Cycle Rate (Hz): 50/60

• Material Container Volume (gal): 55
• Material Container Volume (l): 200

• Maximum Air Inlet Pressure (bar): 9
• Maximum Air Inlet Pressure (kPa): 900
• Maximum Air Inlet Pressure (MPa): 0.9
• Maximum Air Inlet Pressure (psi): 125

• Maximum Ambient Temperature ( degree C): 49
• Maximum Ambient Temperature ( degree F): 120

• Maximum Flow Rate (cc/min): 5000

• Maximum Flow Rate (L/min): 5.0

• Maximum Fluid Temperature ( degree C): 70
• Maximum Fluid Temperature ( degree F): 158
• Maximum Fluid Viscosity (cP): 3000000

• Maximum Fluid Temperature ( degree C): 70
• Maximum Fluid Temperature ( degree F): 158
• Maximum Fluid Viscosity (cP): 3000000

• Maximum Fluid Working Pressure (bar): 240
• Maximum Fluid Working Pressure (MPa): 28
• Maximum Fluid Working Pressure (psi): 3500
• Maximum Hose Length (ft): 40

• Maximum Working Pressure (kPa): 28000
• Maximum Working Pressure (MPa): 28
• Maximum Working Pressure (psi): 4000

• Minimum Ambient Temperature ( degree C): 0
• Minimum Ambient Temperature ( degree F): 32

• Minimum Flow Rate (cc/min): 10
• Minimum Flow Rate (L/min): 0.01

• Minimum Fluid Viscosity (cP): 100000

• Minimum Voltage (V ac): 200

• Phase: 1, 3

• Power Rating (HP): 2.5 hp
• Power Type: Electric, Pneumatic

• Ram Post Di
