Tamper - 5 3/4" Malleab

IR 341A2M

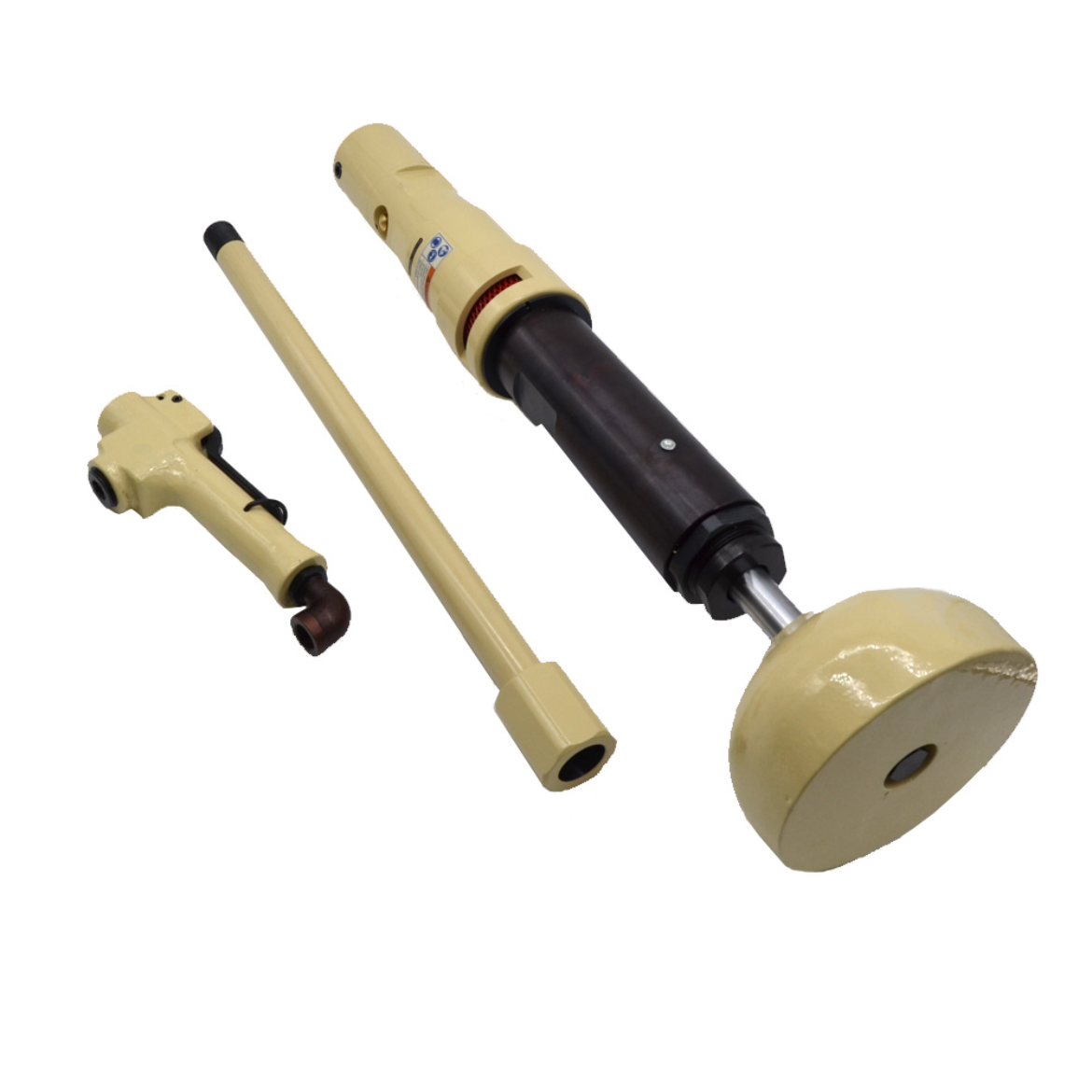

Pneumatic Backfill Tamper, 5.75" Round Malleable Butt, 4" Stroke, 1-5/8" Bore

Description: With dual-action sand wipers, a built-in muffler and a side exhaust, this tool is built for heavy use. These tools are commonly used by municipal and utility crews for compacting around both utility line repairs and new installations such as street lights, fire hydrants, and telephone poles prior to pouring concrete. In addition, this proven tool is ideal for backfilling around foundations or other tight areas.

Features And Benefits:

• Durability: With a plated piston and front-end seal to protect your tool, this Backfill Tamper can be used in the toughest environments. The sand-wiper seal prevents dirt and grit from getting inside the tool.
• Reliability: Thanks to a built-in lubricator, these tools are built to run smoothly and last, while extending overall operating life. Comes with a 1-year warranty.
• Power: Thanks to its high-power output, you'll be able to breeze through any job.
• Access: This tool is as lightweight as it is powerful making compact spaces easy to reach

Product Application and Uses:

These tools are commonly used by municipal and utility crews for compacting around both utility line repairs and new installations such as street lights, fire hydrants, and telephone poles prior to pouring concrete. In addition, this proven tool is ideal for backfilling around foundations or other tight areas.

• Includes: Malleable Butt
• Actuation/Throttle Type/Switch Type: Lever
• Air Consumption @ Load (cfm): 29
• Air Consumption @ Load (l/min): 821
• Air Inlet: 3/8" NPT
• Air Pressure (psi): 90

• Blows per Min: 1550
• Bore Diameter (in): 1-5/8
• Butt Diameter (in): 5.75
• Butt Material: Malleable/ Steel
• Butt Shape: Round

• Color: Beige
• Configuration/Handle Type: Straight
• Duty Rating: Super Duty

• Exhaust Location: Side

• Height Over Spindle (in): 6.7
• Housing Material: Steel
• Inline Oilers: Yes

• Max Pressure (bar): 6.2
• Min Hose Size (in): 1/2
• Muffler: Built In

• Power Source: Air Powered
• Product Length (in): 52.75

• Product Width (in): 7.56
• Product Weight (lb): 15.8
• Retainer Type: Latch

• Shank Opening: 7/8" Tapered Rod
• Side to Center Distance (in): 3.6
• Side to Center Distance (mm): 91

• Special Features: Time Tested Valve Design, Round Piston Rod, Built In Muffler, Optional Front End Butts Available.
• Standards/Certifications: Standards
• Steels: Yes
• Stroke Length (in): 4

• Warranty: 1-year

• Accessories: 34SR-383
• Accessories: 34SR-M183-5 3/4

• Lubrication: 10G
• Lubrication: 10P
• Parts: 241SR-122
• Parts: 341SR-312

• Parts: 34SR-85
