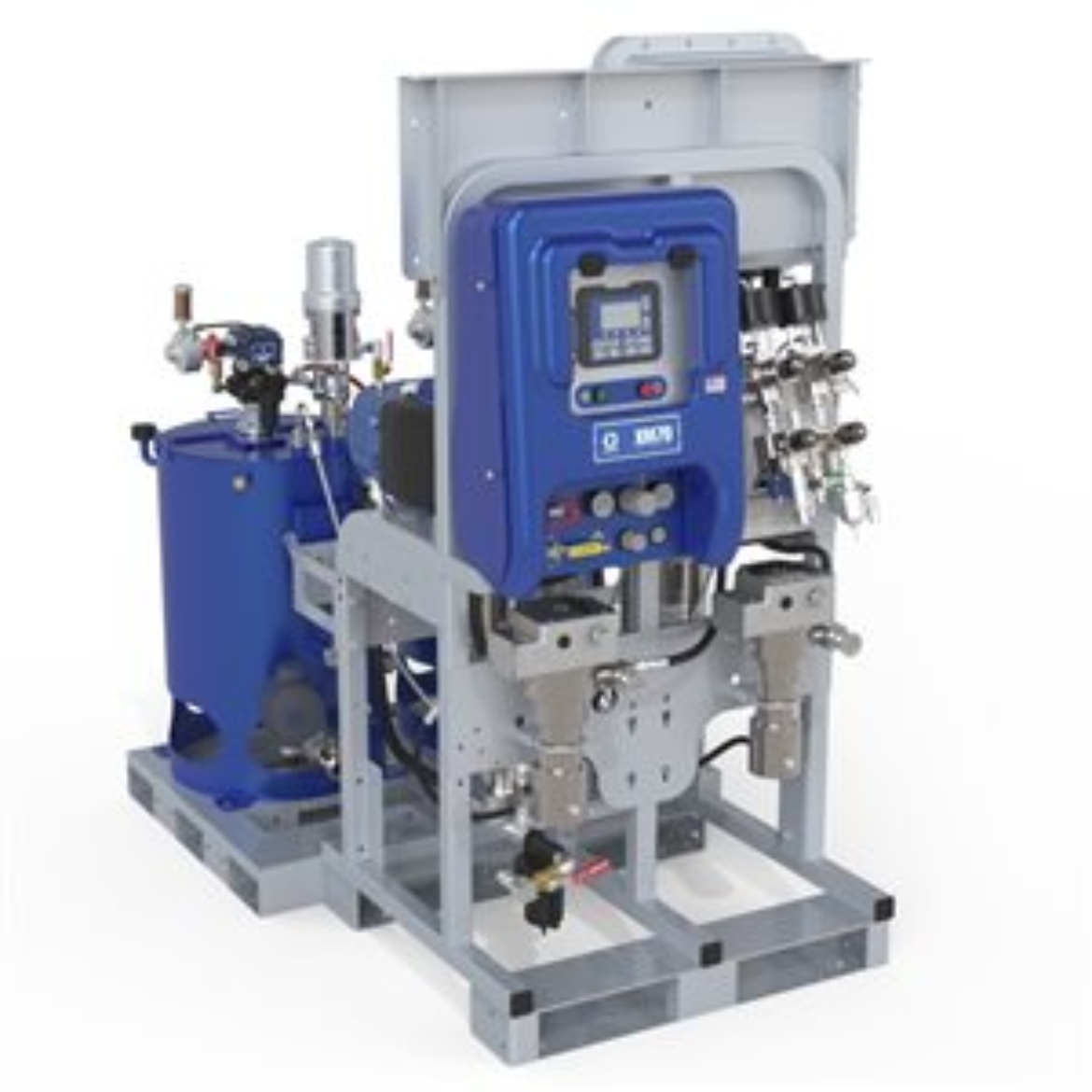

System, XM70, Skid-HF, 6300 PSI VR Ratio, Includes Haz-Loc, 480 Volt

GG XM7K2E

XM SPRAYER SYSTEM, XM70, R, 480, JB, IS, 25, E

Graco XM7K2E XM70, 480V, Alternator, EX Viscon HF Heaters, EX Junction Box, Heated Tanks, Agitators, Feed Pumps, Remote, Electric Hose Control

Engineered to handle the toughest protective coatings, the Graco XM plural-component sprayer provides precise ratio control, allows users to download historical spraying data, and handles a wide range of two-component materials.

• Variable ratio system - handles material ratios from 1:1 to 10:1
• Dosing technology assures accurate, on-ratio mixing for better yield and less waste
• Advanced, intuitive user controls provide real-time display and adjustment of ratio
• Supports multiple spray guns for added productivity

• Model: XM
• Series: 70

• Air Inlet Size (in): 3/4
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Fluid Inlet Size (in): 1-1/4
• Fluid Inlet Thread Gender: Male
• Fluid Inlet Thread Type: NPT

• Maximum Air Consumption (m3/min): 1.96 m3/min per lpm at 100psi
• Maximum Air Consumption (SCFM): 70 scfm/gpm at 100psi
• Maximum Air Inlet Pressure (bar): 10.3
• Maximum Air Inlet Pressure (psi): 150

• Maximum Flow Rate (GPM): 3
• Maximum Flow Rate (L/min): 11.4

• Maximum Fluid Temperature ( degree C): 71
• Maximum Fluid Temperature ( degree F): 160
• Maximum Fluid Viscosity (cP): 20000

• Maximum Fluid Temperature ( degree C): 71
• Maximum Fluid Temperature ( degree F): 160
• Maximum Fluid Viscosity (cP): 20000

• Maximum Mix Ratio: 10:1

• Maximum Operating Temperature ( degree C): 54
• Maximum Operating Temperature ( degree F): 130

• Maximum Working Pressure (bar): 435
• Maximum Working Pressure (MPa): 43.5
• Maximum Working Pressure (psi): 6300

• Minimum Flow Rate (GPM): 0.25
• Minimum Flow Rate (L/min): 0.95

• Minimum Mix Ratio: 1:1

• Mix Accuracy (%): 5%

• Power Source: Alternator

• Primary Fluid Heater Included: Yes
