Switch, Proximity Adapt, 7/16-20

GG 17L983

SWITCH, PROXIMITY ADAPT, 7/16-20

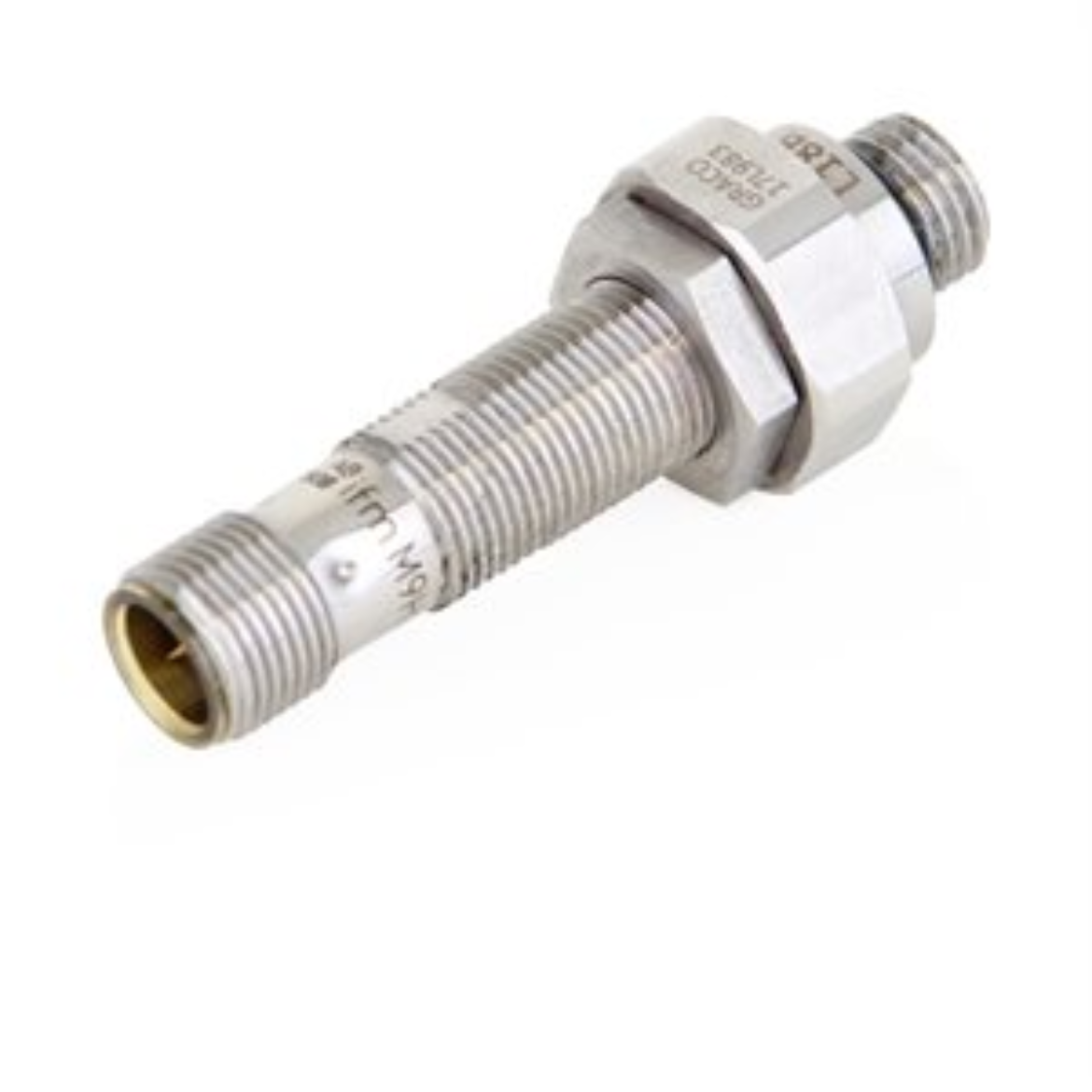

Graco 17L983 Proximity Switch, 7/16-20, 7500 psi (517.1 bar)

Magnetically-operated sensing devices for sending system data to the controller or PLC.

• Available in 115 VAC or 12-32 VDC
• Available for all series progressive families to provide cycle rates up to 200 CPM
• Pressure ratings up to 10,000 psi (690 bar)
• Select models available with UL and CSA approvals

• Model: Trabon

• Application: Off-Road Equipment, On-Road Vehicles, In-Plant Machinery

• Compatible Material: Oil, Grease

• Material: PBT (Pocan), PC (Makrolon), FPM, Stainless Steel

• Maximum Voltage (V dc): 32

• Maximum Working Pressure (bar): 517.1
• Maximum Working Pressure (kPa): 51710
• Maximum Working Pressure (MPa): 51.7
• Maximum Working Pressure (psi): 7500

• Minimum Voltage (V dc): 9.6

• Power Connection Type: M12
