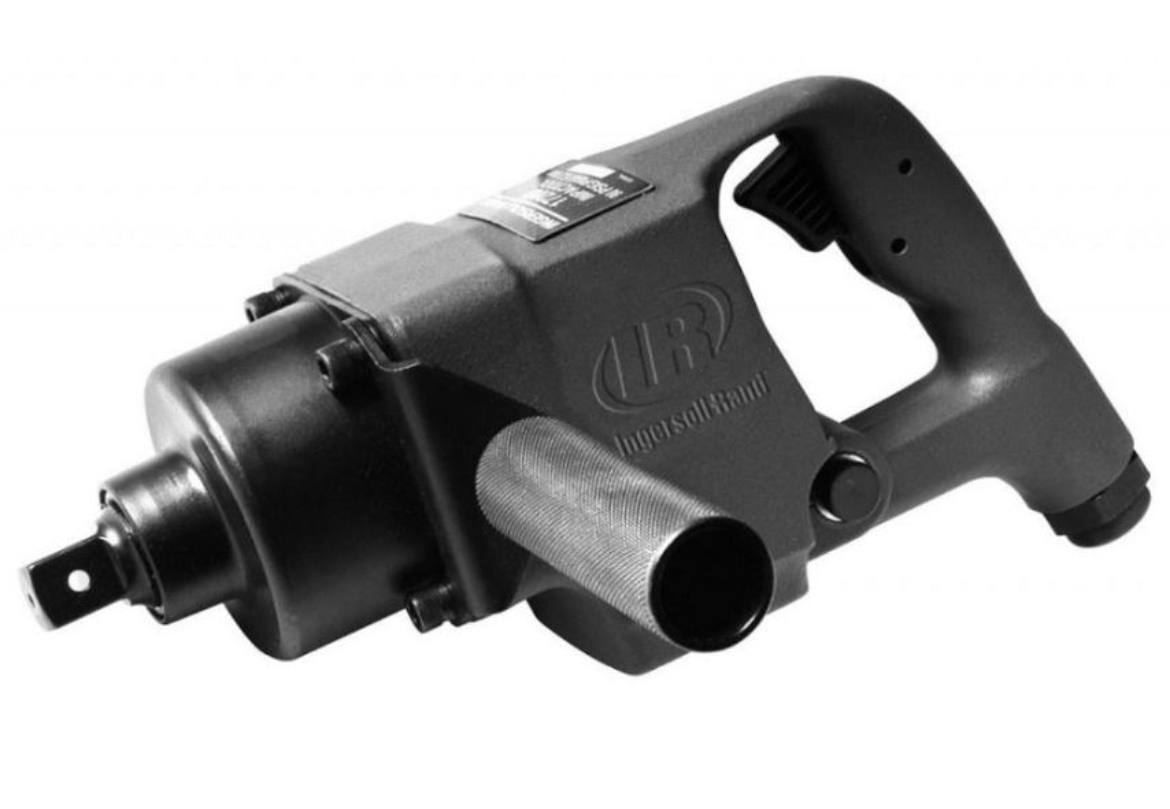

Super Duty Impactool

IR 2950B7

1-1/2" Air Impact Wrench, Heavy Duty, 3000 ft-lb Torque, Thru-hole Retainer, D-Handle Inside Trigger

Description: With a finely tuned motor and excellent power regulation, the 2950 Series is ready to assist you on even the toughest of jobs.

Features And Benefits:

• Durability: The 2950 Series features a steel hammer case and metal housing, tough enough to last through any drops or harsh weather conditions.
• Reliability: This tool's twin hammer impact mechanism provides an even blow that delivers every time. Comes with a 1-year warranty.
• Great for Outdoor Environments: This wrench contains a bronze end-plate that increases durability and is corrosion resistant.

Product Application and Uses:

Engineered to withstand the harshest working conditions in oilfields, mines, and shipyards

• Actuation/Throttle Type/Switch Type: Inside Trigger
• Air Inlet: 1/2" NPT
• Air Pressure (psi): 90
• Anvil Length: Standard
• Average Air Consumption (cfm): 70
• Average Air Consumption (l/min): 1982

• Blows per Min: 650

• Color: Grey
• Configuration/Handle Type: D-Handle
• Drive Size (in): 1-1/2
• Drive Type: Square
• Duty Rating: Heavy Duty

• End Plates: Bronze
• Exhaust Location: Bottom
• Free Speed Sound Pressure/Power Db(A): 94.9 / 105.9

• Hammer Case: Steel
• Handle Material: Composite
• Housing Material: Aluminum
• Impact Mechanism: Twin Hammer

• Max Bolt Diameter (in): 1.5
• Max Free Speed (rpm): 3750
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 3000
• Max Torque (in-lb): 35996
• Max Torque (nm): 4067
• Min Hose Size (in): 3/4
• Motor: Reverse Bias

• Number of Power Settings: Continuous
• Power Source: Air Powered
• Product Length (in): 14.5

• Product Weight (lb): 32.6
• Recommended Forward Torque Range (ft-lb): 2500
• Recommended Forward Torque Range (in-lb): 30004
• Recommended Forward Torque Range (nm): 3390
• Recommended Reverse Torque (ft-lb): 1601-2500
• Recommended Reverse Torque (nm): 2170-3390
• Retainer Type: Thru-hole

• Side to Center Distance (in): 2.5
• Side to Center Distance (mm): 64

• Speed Setting: Variable Speed
• Standards/Certifications: CE

• Tool Type: Full-size
• Vanes: 6
• Vibration Level (m/s2): 18.1
• Warranty: 1-year

• Lubrication: 10P
• Parts: 2950-42-6
• Parts: 2950-TK2

• Parts: RR10020S
