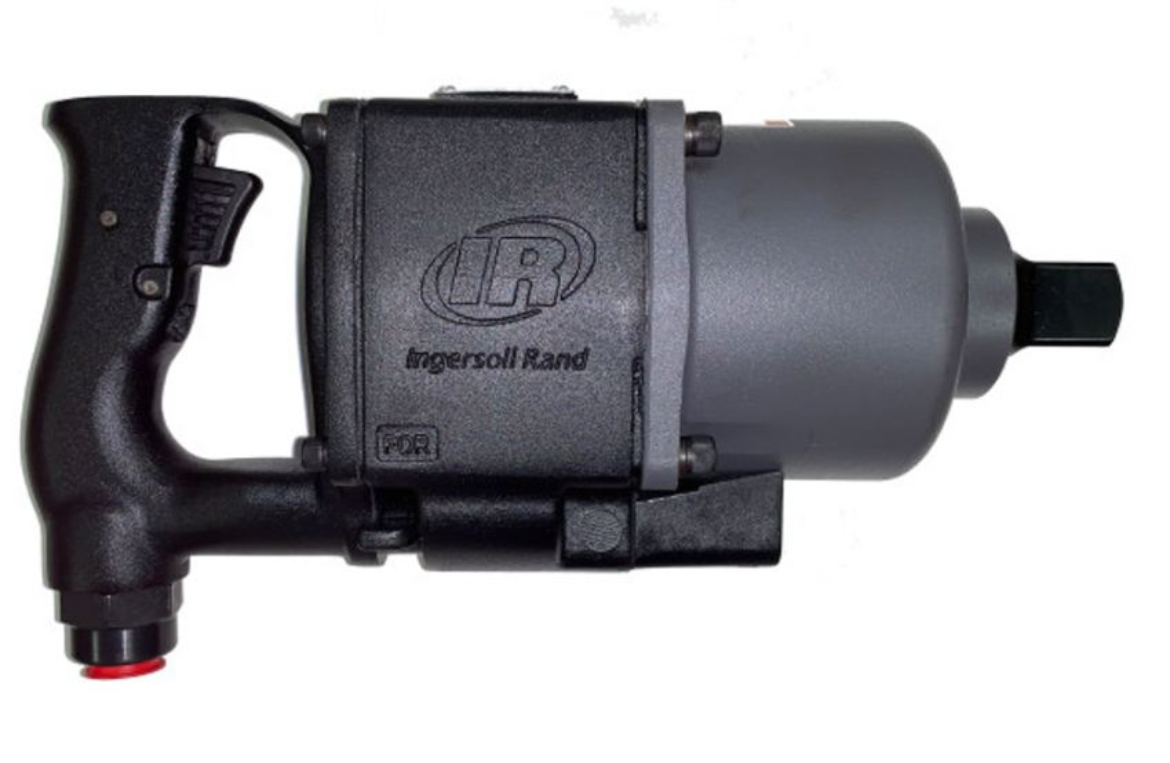

Super Duty Impactool

IR 2934B2

1" Air Impact Wrench, Super Duty, 1500 ft-lb Torque, Thru-hole Retainer, D-Handle Inside Trigger

Description: The twin hammer impact mechanism ensures this series is reliable, durable, and will produce the same output every time.

Features And Benefits:

• Durability: This Series features an iron hammer case and metal housing that'll withstand harsh conditions and drops.
• Reliability: Resistant to fluctuations in air pressures, this series will work just as well in any condition. Comes with a 1-year warranty.
• Great for Outdoor Environments: This wrench contains a bronze end-plate that increases durability and is corrosion resistant.

Product Application and Uses:

Optimized for general industrial use, rail, heavy machinery, oil and gas, and shipbuilding

• Actuation/Throttle Type/Switch Type: Inside Trigger
• Air Inlet: 1/2" NPT
• Air Pressure (psi): 90
• Anvil Length: Standard
• Average Air Consumption (cfm): 47
• Average Air Consumption (l/min): 1331

• Blows per Min: 750

• Color: Grey
• Configuration/Handle Type: D-Handle
• Drive Size (in): 1
• Drive Type: Square
• Duty Rating: Super Duty

• End Plates: Bronze
• Exhaust Location: Bottom
• Free Speed Sound Pressure/Power Db(A): 94.9 / 105.9

• Handle Material: Composite
• Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame
• Impact Mechanism: Twin Hammer
• Impacting Sound Pressure/Power Db(A): 94.5 / 105.5

• Max Bolt Diameter (in): 1.125
• Max Free Speed (rpm): 6600
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 1500
• Max Torque (in-lb): 18002
• Max Torque (nm): 2034
• Min Hose Size (in): 3/4
• Motor: Non-Biased

• Number of Power Settings: Continuous
• Power Source: Air Powered
• Product Length (in): 11.25

• Product Width (in): 4.4
• Product Height (in): 6.7
• Product Weight (lb): 18.5
• Recommended Forward Torque Range (ft-lb): 1100
• Recommended Forward Torque Range (in-lb): 13196
• Recommended Forward Torque Range (nm): 1491
• Recommended Reverse Torque (ft-lb): 500-1099
• Recommended Reverse Torque (nm): 678-1490
• Retainer Type: Thru-hole

• Side to Center Distance (in): 2.2
• Side to Center Distance (mm): 56

• Speed Setting: Variable Speed
• Standards/Certifications: CE

• Tool Type: Full-size
• Vanes: 6
• Vibration Level (m/s2): 18.8
• Warranty: 1-year

• Accessories: RR10015S

• Lubrication: 10P
• Parts: 2934-42-6
• Parts: 2934-TK3
