Airpower | STURTEVANT RICHMONT S13210 branded products

Box Head 3/4

STR 819068

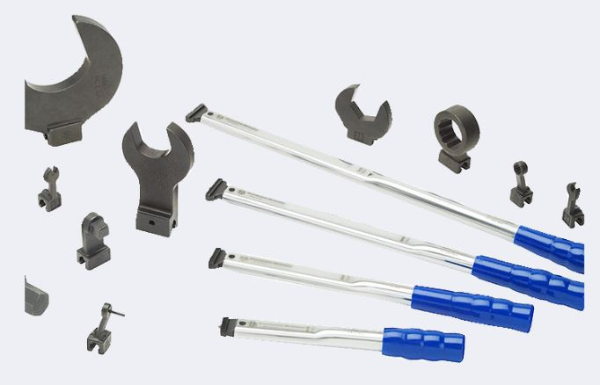

Box Head Interchangeable Heads for Torque Wrenches

Model	:	BH 3/4
Capacity	:	1800 lbf in
Dimensions Insert	:	3/4 in

A	:	2.1 in
B	:	1.3 in
C	:	0.6 in
D	:	1.0 in
E	:	0.9 in

Product Description

One piece, cast, proprietary steel selection
All of our heads fit on all of our wrenches
Our smallest head fits on our largest wrench
Our largest head fits on our smallest wrench
Fewer wrenches to buy, calibrate, repair, and manage
No need to buy multiple wrenches and heads to cover different fastener sizes within the same torque range
Sturtevant Richmont interchangeable heads have two common centerlines
Typically for sizes 32 mm and below the common centerline is 365 mm
Sizes larger than 33 mm the common centerline extends to 984 mm

$105.96

Box Head BH-15/16 Head Only

STR 819071

Box Head Interchangeable Heads for Torque Wrenches

Model	:	BH 15/16
Capacity	:	2700 lbf in
Dimensions Insert	:	15/16 in

A	:	2.2 in
B	:	1.5 in
C	:	0.7 in
D	:	1.3 in
E	:	0.9 in

Product Description

One piece, cast, proprietary steel selection
All of our heads fit on all of our wrenches
Our smallest head fits on our largest wrench
Our largest head fits on our smallest wrench
Fewer wrenches to buy, calibrate, repair, and manage
No need to buy multiple wrenches and heads to cover different fastener sizes within the same torque range
Sturtevant Richmont interchangeable heads have two common centerlines
Typically for sizes 32 mm and below the common centerline is 365 mm
Sizes larger than 33 mm the common centerline extends to 984 mm

$121.77

Box Head BH-7/8 Head Only

STR 819070

Box Head Interchangeable Heads for Torque Wrenches

Model	:	BH 7/8
Capacity	:	2400 lbf in
Dimensions Insert	:	7/8 in

A	:	2.2 in
B	:	1.4 in
C	:	0.6 in
D	:	1.3 in
E	:	0.9 in

Product Description

One piece, cast, proprietary steel selection
All of our heads fit on all of our wrenches
Our smallest head fits on our largest wrench
Our largest head fits on our smallest wrench
Fewer wrenches to buy, calibrate, repair, and manage
No need to buy multiple wrenches and heads to cover different fastener sizes within the same torque range
Sturtevant Richmont interchangeable heads have two common centerlines
Typically for sizes 32 mm and below the common centerline is 365 mm
Sizes larger than 33 mm the common centerline extends to 984 mm

$113.85

Box Head BH-1 Head Only

STR 819072

Box Head Interchangeable Heads for Torque Wrenches

Model	:	BH 1
Capacity	:	300 lbf in
Dimensions Insert	:	1 in

A	:	2.2 in
B	:	1.6 in
C	:	0.7 in
D	:	1.3 in
E	:	0.9 in

Product Description

One piece, cast, proprietary steel selection
All of our heads fit on all of our wrenches
Our smallest head fits on our largest wrench
Our largest head fits on our smallest wrench
Fewer wrenches to buy, calibrate, repair, and manage
No need to buy multiple wrenches and heads to cover different fastener sizes within the same torque range
Sturtevant Richmont interchangeable heads have two common centerlines
Typically for sizes 32 mm and below the common centerline is 365 mm
Sizes larger than 33 mm the common centerline extends to 984 mm

$121.77

Box Head BH 1-1/16 Head Only

STR 819073

Box Head Interchangeable Heads for Torque Wrenches

Model	:	BH 1 1/16
Capacity	:	3150 lbf in
Dimensions Insert	:	1-1/16 in

A	:	2.2 in
B	:	1.6 in
C	:	0.7 in
D	:	1.3 in
E	:	0.9 in

Product Description

One piece, cast, proprietary steel selection
All of our heads fit on all of our wrenches
Our smallest head fits on our largest wrench
Our largest head fits on our smallest wrench
Fewer wrenches to buy, calibrate, repair, and manage
No need to buy multiple wrenches and heads to cover different fastener sizes within the same torque range
Sturtevant Richmont interchangeable heads have two common centerlines
Typically for sizes 32 mm and below the common centerline is 365 mm
Sizes larger than 33 mm the common centerline extends to 984 mm

$126.52

Box Head BH, 1-1/8

STR 819074

Box Head Interchangeable Heads for Torque Wrenches

Model	:	BH 1 1/8
Capacity	:	3300 lbf in
Dimensions Insert	:	1-1/18 in

A	:	2.5 in
B	:	2.1 in
C	:	0.9 in
D	:	1.3 in
E	:	0.9 in

Product Description

One piece, cast, proprietary steel selection
All of our heads fit on all of our wrenches
Our smallest head fits on our largest wrench
Our largest head fits on our smallest wrench
Fewer wrenches to buy, calibrate, repair, and manage
No need to buy multiple wrenches and heads to cover different fastener sizes within the same torque range
Sturtevant Richmont interchangeable heads have two common centerlines
Typically for sizes 32 mm and below the common centerline is 365 mm
Sizes larger than 33 mm the common centerline extends to 984 mm

$126.52

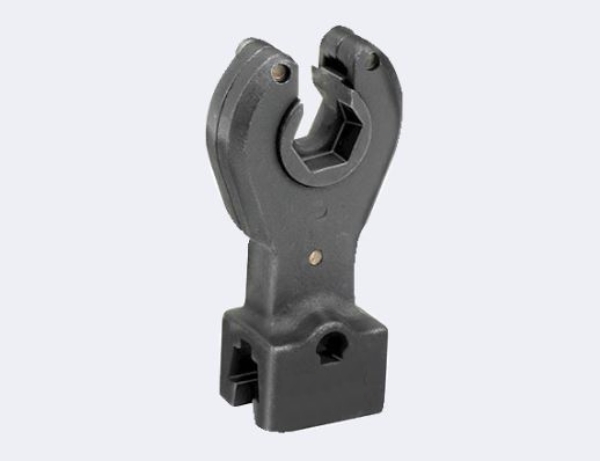

Ratchet Flare Nut Head 10 MM

STR 819086

Ratcheting Flare Nut Interchangeable Heads for Torque Wrenches

Model	:	RFN 10mm
Capacity	:	25 Nm
Dimensions Insert	:	10 mm

A	:	22.86 mm
B	:	17.78 mm
C	:	50.8 mm
D	:	7.62 mm
E	:	15.24 mm

Product Description

1 7 16 Common Centerline / 36.5 mm Common Centerline
819119: 3 7 8 Common Centerline / 984mm Common Centerline

$360.56

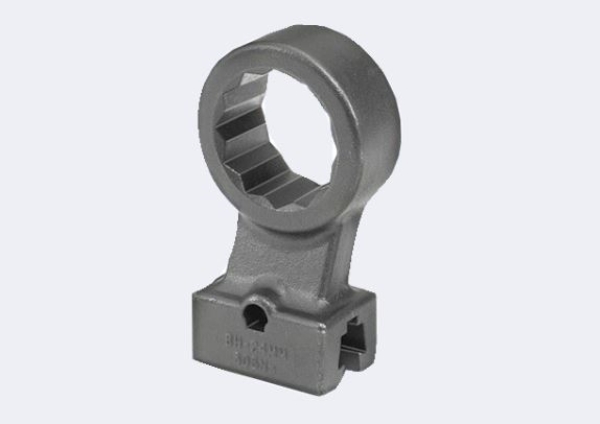

Box Head BH 1-1/4

STR 819075

Box Head Interchangeable Heads for Torque Wrenches

Model	:	BH 1 1/4
Capacity	:	3600 lbf in
Dimensions Insert	:	1-1/14 in

A	:	2.5 in
B	:	2.1 in
C	:	0.9 in
D	:	1.3 in
E	:	0.9 in

Product Description

One piece, cast, proprietary steel selection
All of our heads fit on all of our wrenches
Our smallest head fits on our largest wrench
Our largest head fits on our smallest wrench
Fewer wrenches to buy, calibrate, repair, and manage
No need to buy multiple wrenches and heads to cover different fastener sizes within the same torque range
Sturtevant Richmont interchangeable heads have two common centerlines
Typically for sizes 32 mm and below the common centerline is 365 mm
Sizes larger than 33 mm the common centerline extends to 984 mm

$142.31

Square Drive SD-3/4 Head Only

STR 819119

Square Drive Interchangeable Heads for Torque Wrenches

Model	:	SD 3/4-3 7/8
Capacity	:	4800 lbf in
Dimensions Insert	:	3/4-3-7/8 in

A	:	0.75 in
B	:	4.6 in
C	:	1.5 in
D	:	1.4 in
E	:	1.5 in

Product Description

1 7 16 Common Centerline / 36.5 mm Common Centerline
819119: 3 7 8 Common Centerline / 984mm Common Centerline

$480.73

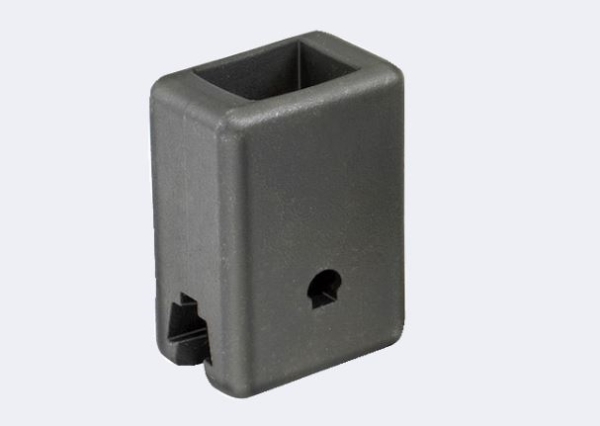

Adapter, 9mm x 12mm

STR 819136

Adaptrs for Interchangeable Heads for Torque Wrenches

Model	:		ADAPTER 9 X 12 DIN
Adapter Dimensions	:		9 X 12 in

Product Description

Adapters allow those who have interchangeable heads of the DIN style (male rectangular connector) to use them with S/R preset interchangeable head torque wrenches
Preset the torque wrench after the adapter and interchangeable head have been attached to the tool
Sturtevant Richmont interchangeable heads have two common centerlines
Typically for sizes 32 mm and below the common centerline is 365 mm
Sizes larger than 33 mm the common centerline extends to 984 mm

$91.71

Adapter, 14mm x 18mm

STR 819137

Adapters for Interchangeable Heads for Torque Wrenches

Model	:		ADAPTER 14 X 18 DIN
Adapter Dimensions	:		14 X 18 in

Product Description

Adapters allow those who have interchangeable heads of the DIN style (male rectangular connector) to use them with S/R preset interchangeable head torque wrenches
Preset the torque wrench after the adapter and interchangeable head have been attached to the tool
Sturtevant Richmont interchangeable heads have two common centerlines
Typically for sizes 32 mm and below the common centerline is 365 mm
Sizes larger than 33 mm the common centerline extends to 984 mm

$91.71

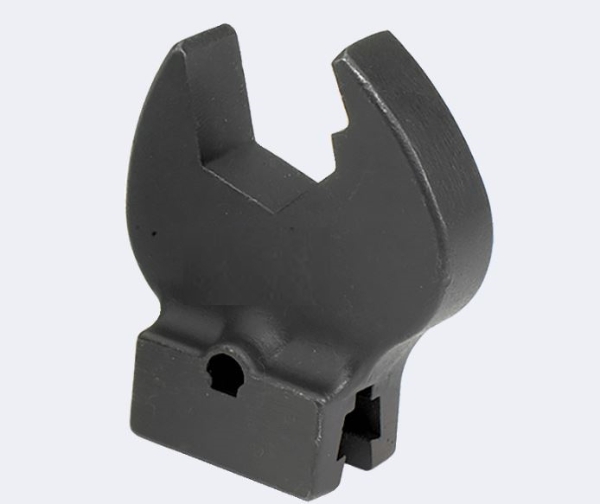

Open End Head 3/4

STR 819357

Ratcheting Open End Interchangeable Heads for Torque Wrenches

Model	:	ROE 11/16 Head - V Series
Capacity	:	480 lbf in
Dimensions Insert	:	11/16 in

A	:	1.875 in
B	:	1.5938 in
C	:	.4375 in
D	:	0.75
E	:	0.6875

Product Description

One piece, cast, proprietary steel selection
All of our heads fit on all of our wrenches
Our smallest head fits on our largest wrench
Our largest head fits on our smallest wrench
Fewer wrenches to buy, calibrate, repair, and manage
No need to buy multiple wrenches and heads to cover different fastener sizes within the same torque range
Sturtevant Richmont interchangeable heads have two common centerlines
Typically for sizes 32 mm and below the common centerline is 365 mm
Sizes larger than 33 mm the common centerline extends to 984 mm

$172.98

Open End Head 3/4

STR 819358

Ratcheting Open End Interchangeable Heads for Torque Wrenches

Model	:	ROE 3/4 Head - V Series
Capacity	:	600 lbf in
Dimensions Insert	:	3/4 in

A	:	2.0 in
B	:	1.8438 in
C	:	.5 in
D	:	1
E	:	0.8125

Product Description

One piece, cast, proprietary steel selection
All of our heads fit on all of our wrenches
Our smallest head fits on our largest wrench
Our largest head fits on our smallest wrench
Fewer wrenches to buy, calibrate, repair, and manage
No need to buy multiple wrenches and heads to cover different fastener sizes within the same torque range
Sturtevant Richmont interchangeable heads have two common centerlines
Typically for sizes 32 mm and below the common centerline is 365 mm
Sizes larger than 33 mm the common centerline extends to 984 mm

$190.22

Ratcheting Open End ROE-19mm Head Only - V Series

STR 819372

Ratcheting Open End Interchangeable Heads for Torque Wrenches

Model	:	ROE 19 MM Head - V Series
Capacity	:	68 Nm
Dimensions Insert	:	19 mm

A	:	48.26 mm
B	:	45.72 mm
C	:	10.16 mm
D	:	20.32 mm
E	:	25.4 mm

Product Description

One piece, cast, proprietary steel selection
All of our heads fit on all of our wrenches
Our smallest head fits on our largest wrench
Our largest head fits on our smallest wrench
Fewer wrenches to buy, calibrate, repair, and manage
No need to buy multiple wrenches and heads to cover different fastener sizes within the same torque range
Sturtevant Richmont interchangeable heads have two common centerlines
Typically for sizes 32 mm and below the common centerline is 365 mm
Sizes larger than 33 mm the common centerline extends to 984 mm

$183.21

LTCE 6

STR 819467

Straight Extension Interchangeable Heads for Torque Wrenches

Model	:	LTCE 6
Square	:	800 lbf in
Head Type	:	LTCE 6

A	:	6 in
B	:	1.25 in
C	:	0.375 in
D	:	1.5 in

Product Description

One piece, cast, proprietary steel selection
All of our heads fit on all of our wrenches
Our smallest head fits on our largest wrench
Our largest head fits on our smallest wrench
Fewer wrenches to buy, calibrate, repair, and manage
No need to buy multiple wrenches and heads to cover different fastener sizes within the same torque range
Sturtevant Richmont interchangeable heads have two common centerlines
Typically for sizes 32 mm and below the common centerline is 365 mm
Sizes larger than 33 mm the common centerline extends to 984 mm

$411.15

15 Deg. Angle Extension LTCE - 4 - 15

STR 819487

15 Degree Interchangeable Heads for Torque Wrenches

Model	:	LTCE 4-15
Head Depth (in)	:	3/8 in
Angle	:	15 Degrees

Product Description

Preset torque wrench must always be preset after the extension and the fastener engagement interchangeable head has been attached
15-degree bend in the extension; fastener engagement will be 15 degrees off the tool centerline
Sturtevant Richmont interchangeable heads have two common centerlines
Typically for sizes 32 mm and below the common centerline is 365 mm
Sizes larger than 33 mm the common centerline extends to 984 mm

$472.83

LTCE 6-15

STR 819504

16 Degree Interchangeable Heads for Torque Wrenches

Model

:

LTCE 6-15

Product Description

Preset torque wrench must always be preset after the extension and the fastener engagement interchangeable head has been attached
15-degree bend in the extension; fastener engagement will be 15 degrees off the tool centerline
Sturtevant Richmont interchangeable heads have two common centerlines
Typically for sizes 32 mm and below the common centerline is 365 mm
Sizes larger than 33 mm the common centerline extends to 984 mm

$480.73

HD 3/32

STR 819687

Hex Drive Interchangeable Heads for Torque Wrenches

Model	:	HD 3/32
Capacity	:	30 lbf in
Hex Size	:	3/32 in

A	:	1.7 in
B	:	0.5 in
C	:	0.8 in
D	:	0.8 in
E	:	0.8 in

Product Description

One piece, cast, proprietary steel selection
All of our heads fit on all of our wrenches
Our smallest head fits on our largest wrench
Our largest head fits on our smallest wrench
Fewer wrenches to buy, calibrate, repair, and manage
No need to buy multiple wrenches and heads to cover different fastener sizes within the same torque range
Sturtevant Richmont interchangeable heads have two common centerlines
Typically for sizes 32 mm and below the common centerline is 365 mm
Sizes larger than 33 mm the common centerline extends to 984 mm

$110.69

SDRF 1/4

STR 819341

Fine-tooth Ratchet Interchangeable Head

Model	:	SDRF 1/4
Capacity	:	250 lbf in
Square	:	1/4 in

A	:	2.32 in
B	:	0.90 in
C	:	0.75 in
D	:	0.88 in
E	:	0.69 in

Product Description

4.5 degrees of swing arc required to engage the next tooth
Smooth operation
Highly durable with black oxide exterior
Easy to rebuild with our fine-tooth ratchet renewal kit
Sealed compartment to protect the gear from debris
Both sizes feature a sealed compartment with reverse lever on back
625% shorter swing length compared to coarse 30-tooth ratchet

$153.06

LTCE 4, Extension

STR 819424

Straight Extension Interchangeable Heads for Torque Wrenches

Model	:	LTCE 4
Square	:	300 lbf in
Head Type	:	LTCE 4

A	:	4 in
B	:	1.125 in
C	:	0.375 in
D	:	1.125 in

Product Description

One piece, cast, proprietary steel selection
All of our heads fit on all of our wrenches
Our smallest head fits on our largest wrench
Our largest head fits on our smallest wrench
Fewer wrenches to buy, calibrate, repair, and manage
No need to buy multiple wrenches and heads to cover different fastener sizes within the same torque range
Sturtevant Richmont interchangeable heads have two common centerlines
Typically for sizes 32 mm and below the common centerline is 365 mm
Sizes larger than 33 mm the common centerline extends to 984 mm

$403.24

HD 3/16

STR 819692

Hex Drive Interchangeable Heads for Torque Wrenches

Model	:	HD 3/16
Capacity	:	235 lbf in
Hex Size	:	3/16 in

A	:	1.7 in
B	:	0.5 in
C	:	1.0 in
D	:	0.8 in
E	:	0.8 in

Product Description

One piece, cast, proprietary steel selection
All of our heads fit on all of our wrenches
Our smallest head fits on our largest wrench
Our largest head fits on our smallest wrench
Fewer wrenches to buy, calibrate, repair, and manage
No need to buy multiple wrenches and heads to cover different fastener sizes within the same torque range
Sturtevant Richmont interchangeable heads have two common centerlines
Typically for sizes 32 mm and below the common centerline is 365 mm
Sizes larger than 33 mm the common centerline extends to 984 mm

$110.69

HD 1/8

STR 819689

Hex Drive Interchangeable Heads for Torque Wrenches

Model	:	HD 1/8
Capacity	:	70 lbf in
Hex Size	:	1/8 in

A	:	1.7 in
B	:	0.5 in
C	:	0.8 in
D	:	0.8 in
E	:	0.8 in

Product Description

One piece, cast, proprietary steel selection
All of our heads fit on all of our wrenches
Our smallest head fits on our largest wrench
Our largest head fits on our smallest wrench
Fewer wrenches to buy, calibrate, repair, and manage
No need to buy multiple wrenches and heads to cover different fastener sizes within the same torque range
Sturtevant Richmont interchangeable heads have two common centerlines
Typically for sizes 32 mm and below the common centerline is 365 mm
Sizes larger than 33 mm the common centerline extends to 984 mm

$132.45

5/16 Head, 5/16 Hex Drive

STR 819695

Hex Drive Interchangeable Heads for Torque Wrenches

Model	:	HD 5/16
Capacity	:	850 lbf in
Hex Size	:	5/16 in

A	:	1.8 in
B	:	0.8 in
C	:	1.0 in
D	:	0.8 in
E	:	0.8 in

Product Description

One piece, cast, proprietary steel selection
All of our heads fit on all of our wrenches
Our smallest head fits on our largest wrench
Our largest head fits on our smallest wrench
Fewer wrenches to buy, calibrate, repair, and manage
No need to buy multiple wrenches and heads to cover different fastener sizes within the same torque range
Sturtevant Richmont interchangeable heads have two common centerlines
Typically for sizes 32 mm and below the common centerline is 365 mm
Sizes larger than 33 mm the common centerline extends to 984 mm

$110.69

Hex Drive interchangeable head SAE

STR 819694

Hex Drive Interchangeable Heads for Torque Wrenches

Model	:	HD 1/4
Capacity	:	450 lbf in
Hex Size	:	1/4 in

A	:	1.8 in
B	:	0.6 in
C	:	1.0 in
D	:	0.8 in
E	:	0.8 in

Product Description

One piece, cast, proprietary steel selection
All of our heads fit on all of our wrenches
Our smallest head fits on our largest wrench
Our largest head fits on our smallest wrench
Fewer wrenches to buy, calibrate, repair, and manage
No need to buy multiple wrenches and heads to cover different fastener sizes within the same torque range
Sturtevant Richmont interchangeable heads have two common centerlines
Typically for sizes 32 mm and below the common centerline is 365 mm
Sizes larger than 33 mm the common centerline extends to 984 mm

$110.69

HD 3/8

STR 819696

Hex Drive Interchangeable Heads for Torque Wrenches

Model	:	HD 3/8
Capacity	:	850 lbf in
Hex Size	:	3/8 in

A	:	1.8 in
B	:	0.8 in
C	:	1.0 in
D	:	0.8 in
E	:	0.8 in

Product Description

One piece, cast, proprietary steel selection
All of our heads fit on all of our wrenches
Our smallest head fits on our largest wrench
Our largest head fits on our smallest wrench
Fewer wrenches to buy, calibrate, repair, and manage
No need to buy multiple wrenches and heads to cover different fastener sizes within the same torque range
Sturtevant Richmont interchangeable heads have two common centerlines
Typically for sizes 32 mm and below the common centerline is 365 mm
Sizes larger than 33 mm the common centerline extends to 984 mm

$110.69

OE 1-5/16" Torque Wrench Open End Interchangeable Head

STR 819724

Open End Interchangeable Heads for Torque Wrenches

Model	:	OE 1 5/16
Capacity	:	4800 lbf in
Dimensions Insert	:	1-5/16 in

A	:	4-5/8 in
B	:	2-15/16 in
C	:	5/8 in
D	:	1-1/2 in
E	:	1 in

Product Description

One piece, cast, proprietary steel selection
All of our heads fit on all of our wrenches
Our smallest head fits on our largest wrench
Our largest head fits on our smallest wrench
Fewer wrenches to buy, calibrate, repair, and manage
No need to buy multiple wrenches and heads to cover different fastener sizes within the same torque range
Sturtevant Richmont interchangeable heads have two common centerlines
Typically for sizes 32 mm and below the common centerline is 365 mm
Sizes larger than 33 mm the common centerline extends to 984 mm

$537.66

Open End OE-1-3/8 Head Only

STR 819725

Open End Interchangeable Heads for Torque Wrenches

Model	:	OE 1 3/8
Capacity	:	4800 lbf in
Dimensions Insert	:	1-3/8 in

A	:	4-39/64 in
B	:	2-15/16 in
C	:	5/8 in
D	:	1-1/2 in
E	:	1 in

Product Description

One piece, cast, proprietary steel selection
All of our heads fit on all of our wrenches
Our smallest head fits on our largest wrench
Our largest head fits on our smallest wrench
Fewer wrenches to buy, calibrate, repair, and manage
No need to buy multiple wrenches and heads to cover different fastener sizes within the same torque range
Sturtevant Richmont interchangeable heads have two common centerlines
Typically for sizes 32 mm and below the common centerline is 365 mm
Sizes larger than 33 mm the common centerline extends to 984 mm

$537.66

OE 1 17/16

STR 819726

Open End Interchangeable Heads for Torque Wrenches

Model	:	OE 1 7/16
Capacity	:	4800 lbf in
Dimensions Insert	:	1-7/16 in

A	:	4-39/64 in
B	:	2-15/16 in
C	:	5/8 in
D	:	1-1/2 in
E	:	1 in

Product Description

One piece, cast, proprietary steel selection
All of our heads fit on all of our wrenches
Our smallest head fits on our largest wrench
Our largest head fits on our smallest wrench
Fewer wrenches to buy, calibrate, repair, and manage
No need to buy multiple wrenches and heads to cover different fastener sizes within the same torque range
Sturtevant Richmont interchangeable heads have two common centerlines
Typically for sizes 32 mm and below the common centerline is 365 mm
Sizes larger than 33 mm the common centerline extends to 984 mm

$537.66

Open End OE-1-1/2 Head Only

STR 819727

Open End Interchangeable Heads for Torque Wrenches

Model	:	OE 1 1/2
Capacity	:	4800 lbf in
Dimensions Insert	:	1-1/2 in

A	:	4-19/32 in
B	:	2-15/16 in
C	:	5/8 in
D	:	1-1/2 in
E	:	1 in

Product Description

One piece, cast, proprietary steel selection
All of our heads fit on all of our wrenches
Our smallest head fits on our largest wrench
Our largest head fits on our smallest wrench
Fewer wrenches to buy, calibrate, repair, and manage
No need to buy multiple wrenches and heads to cover different fastener sizes within the same torque range
Sturtevant Richmont interchangeable heads have two common centerlines
Typically for sizes 32 mm and below the common centerline is 365 mm
Sizes larger than 33 mm the common centerline extends to 984 mm

$537.66

OE 1 9/16

STR 819728

Open End Interchangeable Heads for Torque Wrenches

Model	:	OE 1 9/16
Capacity	:	4800 lbf in
Dimensions Insert	:	1-9/16 in

A	:	4-37/64 in
B	:	2-15/16 in
C	:	5/8 in
D	:	1-1/2 in
E	:	1 in

Product Description

One piece, cast, proprietary steel selection
All of our heads fit on all of our wrenches
Our smallest head fits on our largest wrench
Our largest head fits on our smallest wrench
Fewer wrenches to buy, calibrate, repair, and manage
No need to buy multiple wrenches and heads to cover different fastener sizes within the same torque range
Sturtevant Richmont interchangeable heads have two common centerlines
Typically for sizes 32 mm and below the common centerline is 365 mm
Sizes larger than 33 mm the common centerline extends to 984 mm

$537.66

OE 1-5/8

STR 819729

Open End Interchangeable Heads for Torque Wrenches

Model	:	OE 1 5/8
Capacity	:	4800 lbf in
Dimensions Insert	:	1-5/8 in

A	:	4-9/16 in
B	:	2-15/16 in
C	:	5/8 in
D	:	1-1/2 in
E	:	1 in

Product Description

One piece, cast, proprietary steel selection
All of our heads fit on all of our wrenches
Our smallest head fits on our largest wrench
Our largest head fits on our smallest wrench
Fewer wrenches to buy, calibrate, repair, and manage
No need to buy multiple wrenches and heads to cover different fastener sizes within the same torque range
Sturtevant Richmont interchangeable heads have two common centerlines
Typically for sizes 32 mm and below the common centerline is 365 mm
Sizes larger than 33 mm the common centerline extends to 984 mm

$537.66

OE 1 11/16

STR 819730

Open End Interchangeable Heads for Torque Wrenches

Model	:	OE 1 11/16
Capacity	:	4800 lbf in
Dimensions Insert	:	1-11/16 in

A	:	4-9/16 in
B	:	2-15/16 in
C	:	5/8 in
D	:	1-1/2 in
E	:	1 in

Product Description

One piece, cast, proprietary steel selection
All of our heads fit on all of our wrenches
Our smallest head fits on our largest wrench
Our largest head fits on our smallest wrench
Fewer wrenches to buy, calibrate, repair, and manage
No need to buy multiple wrenches and heads to cover different fastener sizes within the same torque range
Sturtevant Richmont interchangeable heads have two common centerlines
Typically for sizes 32 mm and below the common centerline is 365 mm
Sizes larger than 33 mm the common centerline extends to 984 mm

$537.66

Open End Head, OE-1 3/4 Head Only

STR 819731

Open End Interchangeable Heads for Torque Wrenches

Model	:	OE 1 3/4
Capacity	:	4800 lbf in
Dimensions Insert	:	1-3/4 in

A	:	4-35/64 in
B	:	2-15/16 in
C	:	5/8 in
D	:	1-1/2 in
E	:	1 in

Product Description

One piece, cast, proprietary steel selection
All of our heads fit on all of our wrenches
Our smallest head fits on our largest wrench
Our largest head fits on our smallest wrench
Fewer wrenches to buy, calibrate, repair, and manage
No need to buy multiple wrenches and heads to cover different fastener sizes within the same torque range
Sturtevant Richmont interchangeable heads have two common centerlines
Typically for sizes 32 mm and below the common centerline is 365 mm
Sizes larger than 33 mm the common centerline extends to 984 mm

$537.66

OE 1 13/16

STR 819732

Open End Interchangeable Heads for Torque Wrenches

Model	:	OE 1 13/16
Capacity	:	4800 lbf in
Dimensions Insert	:	1-13/16 in

A	:	4-33/64 in
B	:	2-15/16 in
C	:	5/8 in
D	:	1-1/2 in
E	:	1 in

Product Description

One piece, cast, proprietary steel selection
All of our heads fit on all of our wrenches
Our smallest head fits on our largest wrench
Our largest head fits on our smallest wrench
Fewer wrenches to buy, calibrate, repair, and manage
No need to buy multiple wrenches and heads to cover different fastener sizes within the same torque range
Sturtevant Richmont interchangeable heads have two common centerlines
Typically for sizes 32 mm and below the common centerline is 365 mm
Sizes larger than 33 mm the common centerline extends to 984 mm

$537.66

OE, 1-7/8

STR 819733

Open End Interchangeable Heads for Torque Wrenches

Model	:	OE 1 7/8
Capacity	:	4800 lbf in
Dimensions Insert	:	1-7/8 in

A	:	4-15/16 in
B	:	4-11/32 in
C	:	5/8 in
D	:	1-1/2 in
E	:	1 in

Product Description

One piece, cast, proprietary steel selection
All of our heads fit on all of our wrenches
Our smallest head fits on our largest wrench
Our largest head fits on our smallest wrench
Fewer wrenches to buy, calibrate, repair, and manage
No need to buy multiple wrenches and heads to cover different fastener sizes within the same torque range
Sturtevant Richmont interchangeable heads have two common centerlines
Typically for sizes 32 mm and below the common centerline is 365 mm
Sizes larger than 33 mm the common centerline extends to 984 mm

$537.66

OE 1 15/16

STR 819734

Open End Interchangeable Heads for Torque Wrenches

Model	:	OE 1 15/16
Capacity	:	4800 lbf in
Dimensions Insert	:	1-15/16 in

A	:	4-93/100 in
B	:	4-11/32 in
C	:	5/8 in
D	:	1-1/2 in
E	:	1 in

Product Description

One piece, cast, proprietary steel selection
All of our heads fit on all of our wrenches
Our smallest head fits on our largest wrench
Our largest head fits on our smallest wrench
Fewer wrenches to buy, calibrate, repair, and manage
No need to buy multiple wrenches and heads to cover different fastener sizes within the same torque range
Sturtevant Richmont interchangeable heads have two common centerlines
Typically for sizes 32 mm and below the common centerline is 365 mm
Sizes larger than 33 mm the common centerline extends to 984 mm

$616.72

Open End Head, OE-2 Head Only

STR 819735

Open End Interchangeable Heads for Torque Wrenches

Model	:	OE 2
Capacity	:	4800 lbf in
Dimensions Insert	:	2 in

A	:	4-59/64 in
B	:	4-11/32 in
C	:	5/8 in
D	:	1-1/2 in
E	:	1 in

Product Description

One piece, cast, proprietary steel selection
All of our heads fit on all of our wrenches
Our smallest head fits on our largest wrench
Our largest head fits on our smallest wrench
Fewer wrenches to buy, calibrate, repair, and manage
No need to buy multiple wrenches and heads to cover different fastener sizes within the same torque range
Sturtevant Richmont interchangeable heads have two common centerlines
Typically for sizes 32 mm and below the common centerline is 365 mm
Sizes larger than 33 mm the common centerline extends to 984 mm

$616.72

OE 2 1/16

STR 819736

Open End Interchangeable Heads for Torque Wrenches

Model	:	OE 2 1/16
Capacity	:	4800 lbf in
Dimensions Insert	:	2-1/16 in

A	:	4-29/32 in
B	:	4-11/32 in
C	:	5/8 in
D	:	1-1/2 in
E	:	1 in

Product Description

One piece, cast, proprietary steel selection
All of our heads fit on all of our wrenches
Our smallest head fits on our largest wrench
Our largest head fits on our smallest wrench
Fewer wrenches to buy, calibrate, repair, and manage
No need to buy multiple wrenches and heads to cover different fastener sizes within the same torque range
Sturtevant Richmont interchangeable heads have two common centerlines
Typically for sizes 32 mm and below the common centerline is 365 mm
Sizes larger than 33 mm the common centerline extends to 984 mm

$616.72

2 1/8IN OPEN END HEAD

STR 819737

Open End Interchangeable Heads for Torque Wrenches

Model	:	OE 2 1/8
Capacity	:	4800 lbf in
Dimensions Insert	:	2-1/8 in

A	:	4-29/32 in
B	:	4-11/32 in
C	:	5/8 in
D	:	1-1/2 in
E	:	1 in

Product Description

One piece, cast, proprietary steel selection
All of our heads fit on all of our wrenches
Our smallest head fits on our largest wrench
Our largest head fits on our smallest wrench
Fewer wrenches to buy, calibrate, repair, and manage
No need to buy multiple wrenches and heads to cover different fastener sizes within the same torque range
Sturtevant Richmont interchangeable heads have two common centerlines
Typically for sizes 32 mm and below the common centerline is 365 mm
Sizes larger than 33 mm the common centerline extends to 984 mm

$616.72

OE 2 3/16

STR 819738

Open End Interchangeable Heads for Torque Wrenches

Model	:	OE 2 3/16
Capacity	:	4800 lbf in
Dimensions Insert	:	2-3/16 in

A	:	4-9/10 in
B	:	4-11/32 in
C	:	5/8 in
D	:	1-1/2 in
E	:	1 in

Product Description

One piece, cast, proprietary steel selection
All of our heads fit on all of our wrenches
Our smallest head fits on our largest wrench
Our largest head fits on our smallest wrench
Fewer wrenches to buy, calibrate, repair, and manage
No need to buy multiple wrenches and heads to cover different fastener sizes within the same torque range
Sturtevant Richmont interchangeable heads have two common centerlines
Typically for sizes 32 mm and below the common centerline is 365 mm
Sizes larger than 33 mm the common centerline extends to 984 mm

$651.52

2 1/4IN OPEN END HEAD

STR 819739

Open End Interchangeable Heads for Torque Wrenches

Model	:	OE 2 1/4
Capacity	:	4800 lbf in
Dimensions Insert	:	2-1/4 in

A	:	4-7/8 in
B	:	4-11/32 in
C	:	5/8 in
D	:	1-1/2 in
E	:	1 in

Product Description

One piece, cast, proprietary steel selection
All of our heads fit on all of our wrenches
Our smallest head fits on our largest wrench
Our largest head fits on our smallest wrench
Fewer wrenches to buy, calibrate, repair, and manage
No need to buy multiple wrenches and heads to cover different fastener sizes within the same torque range
Sturtevant Richmont interchangeable heads have two common centerlines
Typically for sizes 32 mm and below the common centerline is 365 mm
Sizes larger than 33 mm the common centerline extends to 984 mm

$616.72

OE 2 5/16

STR 819740

Open End Interchangeable Heads for Torque Wrenches

Model	:	OE 2 5/16
Capacity	:	4800 lbf in
Dimensions Insert	:	2-5/16 in

A	:	4-4/5 in
B	:	4-11/32 in
C	:	5/8 in
D	:	1-1/2 in
E	:	1 in

Product Description

One piece, cast, proprietary steel selection
All of our heads fit on all of our wrenches
Our smallest head fits on our largest wrench
Our largest head fits on our smallest wrench
Fewer wrenches to buy, calibrate, repair, and manage
No need to buy multiple wrenches and heads to cover different fastener sizes within the same torque range
Sturtevant Richmont interchangeable heads have two common centerlines
Typically for sizes 32 mm and below the common centerline is 365 mm
Sizes larger than 33 mm the common centerline extends to 984 mm

$651.52

3 AMP, CA SLTC,2 PIN PTV TwistLock

STR 10421

3 AMP, CA SLTC,2 PIN PTV TwistLock

$265.73

4 AA Batteries and Charger 1 HR

STR 21774

4 AA Batteries and Charger 1 HR

$178.08

Display Board Assembly

STR 21813

Display Board Assembly

Call for pricing

Backlite LCD Exacta II

STR 21431

Backlite LCD Exacta II

$26.10

Power Supply, 6VDC, Wall Mount

STR 21480

Power Supply, 6VDC, Wall Mount

$76.71

TAC HOUSING TOP

STR 21781

TAC HOUSING TOP

$13.51

1200 SERIES RADIO CIRCUIT BOARD

STR 21608

1200 SERIES RADIO CIRCUIT BOARD

$656.08

1250 Serie X-Bee Radio Housing

STR 21636

1250 Serie X-Bee Radio Housing

$1,275.99

EXACT 1350 BATTERY PACK ASSY.

STR 21992

EXACT 1350 BATTERY PACK ASSY.

$81.08

Exacta 1350-150 A

STR 10983

Exacta 1350-150 A

$3,408.72

1/2 in Ratchet Repair Kit

STR 816956

1/2 in Ratchet Repair Kit

$64.24

3SDR 750i MG

STR 869752

3SDR 750i MG

$390.59

KIT 2100PTA-45 NUT RUNNER 45NM

STR SRT12043EU

KIT 2100PTA-45 NUT RUNNER 45NM

Call for pricing

KIT 2100PTP-12 BRUSHLES DRIVER

STR SRT12048EU

KIT 2100PTP-12 BRUSHLES DRIVER

Call for pricing

KIT 2200PTP-24 TRANSDUCER TOOL

STR SRT12053EU

KIT 2200PTP-24 TRANSDUCER TOOL

Call for pricing

KIT 2200PTP-18 TRANSDUCER TOOL

STR SRT12052EU

KIT 2200PTP-18 TRANSDUCER TOOL

Call for pricing

KIT 2100PTA-90 NUT RUNNER 90NM

STR SRT12045EU

KIT 2100PTA-90 NUT RUNNER 90NM

Call for pricing

Two AAA NiMH Batteries

STR 21970

Two AAA NiMH Batteries

$12.66

EXACT 1350 BATTERY CHARGER ADAPTER

STR 21991

EXACT 1350 BATTERY CHARGER ADAPTER

$55.56

TRANSDUCER 250 ASSY EXACTA II

STR 21506

TRANSDUCER 250 ASSY EXACTA II

$487.50

BLT 4800 I

STR 874137

Click-Type Preset Torque Wrenches: BLT Bidirectional Preset Click-Type Torque Wrenches, in-lb

Product Group	:	BLT Bidirectional Preset Click-Type Torque Wrenches, in-lb
Model	:	BLT 4800I
Torque Range (Nm)	:	108.4-542 Nm

Product Description

SR Dovetail Head connects to over 100 SR Interchangeable Heads
Error Proofing By Design: the SR Dovetail transmits the load at a right angle from the wrench to the head, providing exceptional strength and rigidity of the connection
A pin lock on the dovetail assures positive head connection, yet permits head changeover in seconds
CW +/- 4% Indicated Value Accuracy and CCW +/- 6% Indicated Value Accuracy from 20% to 100% of capacity, meeting or exceeding the requirements of ASME B107.300-2010 and ISO 6789
we preset the tool to your requested torque value and we include a Certificate of Calibration from our ISO 17025 Accredited Lab
Error Proofing By Behavior Modification: excellent tactile and audible pulse when the preset torque is achieved
Error Proofing By Design: the flattened case prevents side-loading and ensures greater accuracy and durability
Comfortable cushion grip plus light-weight for excellent ergonomics
Preset and locked in with a special CART tool
Torque can be set using any unit of measurement
Can be ordered preset from the factory or you can set the torque with your own torque tester
All of our tools provide torque measurements in the clockwise direction
BLT preset click wrench measures torque in both clockwise and counterclockwise directions

$1,366.29

BLT 3600 I

STR 874334

Click-Type Preset Torque Wrenches: BLT Bidirectional Preset Click-Type Torque Wrenches, in-lb

Product Group	:	BLT Bidirectional Preset Click-Type Torque Wrenches, in-lb
Model	:	BLT 3600I
Torque Range (Nm)	:	1 Nm

Product Description

SR Dovetail Head connects to over 100 SR Interchangeable Heads
Error Proofing By Design: the SR Dovetail transmits the load at a right angle from the wrench to the head, providing exceptional strength and rigidity of the connection
A pin lock on the dovetail assures positive head connection, yet permits head changeover in seconds
CW +/- 4% Indicated Value Accuracy and CCW +/- 6% Indicated Value Accuracy from 20% to 100% of capacity, meeting or exceeding the requirements of ASME B107.300-2010 and ISO 6789
we preset the tool to your requested torque value and we include a Certificate of Calibration from our ISO 17025 Accredited Lab
Error Proofing By Behavior Modification: excellent tactile and audible pulse when the preset torque is achieved
Error Proofing By Design: the flattened case prevents side-loading and ensures greater accuracy and durability
Comfortable cushion grip plus light-weight for excellent ergonomics
Preset and locked in with a special CART tool
Torque can be set using any unit of measurement
Can be ordered preset from the factory or you can set the torque with your own torque tester
All of our tools provide torque measurements in the clockwise direction
BLT preset click wrench measures torque in both clockwise and counterclockwise directions

$1,220.80

KIT 2100PTA-45 NUT RUNNER 45NM

STR SRT12043

Power Tools Kits: 20V Angled Nut Runner Tool, Kit, 45 Nm

Product Group	:	20V Angled Nut Runner Tool, Kit, 45 Nm
Model	:	2100PTA-45K
Capacity	:	18-45 Nm
Speed (RPM)	:	210-300
Square Size	:	3/8 in

Product Description

Brushless Motor - energy saving, higher efficiency and longer lasting
Simple torque setting procedure
Clutch operation reduces reaction force on operator
LED indicators on tool providing OK/NOK status
Double hit detection via measurement of fastener rotation
Improved ergonomics and lightweight with Li-Ion compact battery
Battery life indicator on the battery module
Audible alerts to auto shut-off when torque reaches the set value
Low maintenance costs due to long service life
All torque and rotation measurements are programmable using the Global 400, Global 400MP or Global Manager Software
4 power tools can operate simultaneously with each control unit
Accuracy of +/- 10%
Kits include tool, 2 batteries, charger and adjustment tool

Call for pricing

KIT 2200PTP-24 TRANSDUCER TOOL

STR SRT12053

Power Tools Kits: 20V Trasducerized Wireless Precision Tool, Kit, 24 Nm

Product Group	:	20V Trasducerized Wireless Precision Tool, Kit, 24 Nm
Model	:	2200PTP-24K
Capacity	:	6-24 NM
Speed (RPM)	:	1/4 in

Product Description

Ability to accommodate multiple torque and angle values
4 power tools can operate simultaneously with each control unit
Multiple speed strategy to ergonomically assist the operator
Communicates in clockwise and counter clockwise
Compatible with Global 400 / 400MP torque controllers
All torque and angle measurements are programmable using the Global 400, Global 400MP or Global Manager Software
Clear view of target value of the tightening
Good or bad result as value hit with OK/NOK on OLED display
Good or bad fastening indication with red or green LED display
Battery life indicator on the battery module
Batch count and batch size
Accuracy of +/- 10%
Kits include tool, 2 batteries, charger and side handle tool

Call for pricing

SLTC 300 I, Hardwired, 6.8 Nm - 34 Nm

STR SRT810855

Wireless Click-Type Torque Wrenches: Hardwired Preset Click-Type Torque Wrenches (SLTC/SLTCR), in-lb

Product Group	:	Hardwired Preset Click-Type Torque Wrenches (SLTC/SLTCR), in-lb
Model	:	SLTC 300 I - Hardwired
Torque Range (Nm)	:	6.8-34 Nm
Torque Range (in.lb)	:	60-300 in.lbf
Head Type	:	Dovetail

Product Description

Accuracy of +/- 4% of the preset value from 20% to 100% of capacity
Meets or exceeds requirements of ASME B107.300-2010 and ISO 6789
Preset from the factory includes a free Certificate of Calibration from our ISO 17025 Accredited Lab
Five of seven models use the incredibly strong SR dovetail and can be used with any of over 100 SR Interchangeable Heads
Tamper-resistant torque setting mechanism design facilitates setting and discourages unauthorized torque setting changes
Excellent audible and tactile impulse when preset torque is achieved
Lightweight and cushion grip provides excellent ergonomics
Slender body facilitates use in constrained-access applications
Microswitch closes when the tool clicks and opens immediately when pressure is released
Separate cable with a connector (required) facilitates replacement if damaged.

Call for pricing

M 150

STR 850198

Beam & Dial Torque Wrenches: Flat and Tapered Beam Torque Wrenches, ft-lb

Product Group	:	Flat and Tapered Beam Torque Wrenches, ft-lb
Model	:	M 150
Torque Scale	:	150 lbf ft
Square	:	5 lbf ft
Weight	:	3.75 lb

Product Description

Incredibly durable design
Exceptional accuracy retention permits extended calibration intervals and extremely low ownership cost
Flat and Tapered Beam torque wrenches have a very low cost of ownership; they are virtually maintenance and repair-free
Pivoted handle concentrates load at a precise point on the lever to assure torque accuracy
Memory feature consists of pointers that follow a track on the scale and remain in place to indicate peak torque achieved
Peak torque indicated on the scale is accurate even in destructive applications
Bi-directional accuracy of +/- 2% of Indicated Value from 20% to 100% of capacity meets or exceeds requirements of ASME B107.300-2010 and ISO 6789
Includes FREE certificate of calibration from our +/- .25% Indicated Value accuracy/ISO/IEC 17025 Accredited Calibration Laboratory

$918.77

Flat Beam 3/8 Sq Dr Torque Wrench

STR 850191

Beam & Dial Torque Wrenches: Flat and Tapered Beam Torque Wrenches, in-lb

Product Group	:	Flat and Tapered Beam Torque Wrenches, in-lb
Model	:	M 100 I
Torque Scale	:	100 lbf in
Square	:	5 lbf in
Weight	:	0.4 lb

Product Description

Pivoted handle concentrates load at a precise point on the lever to assure torque accuracy
Memory feature consists of pointers that follow a track on the scale and remain in place to indicate peak torque achieved
Peak torque indicated on the scale is accurate even in destructive applications
Meets or exceeds requirements for ASME B107, 300-2010 and ISO 6789
Includes certificate of calibration from our +/- 25% indicated value accuracy/ISO/IEC 17025 accredited calibration laboratory
850222, 850242, 850191: These products have a pivoted ball handle.

$586.67

Flat Beam M Series Torque Wrench 3/4 In Square Drive

STR 850227

Beam & Dial Torque Wrenches: Flat and Tapered Beam Torque Wrenches, ft-lb

Product Group	:	Flat and Tapered Beam Torque Wrenches, ft-lb
Model	:	M 300
Torque Scale	:	300 lbf ft
Square	:	10 lbf ft
Weight	:	10.75 lb

Product Description

Incredibly durable design
Exceptional accuracy retention permits extended calibration intervals and extremely low ownership cost
Flat and Tapered Beam torque wrenches have a very low cost of ownership; they are virtually maintenance and repair-free
Pivoted handle concentrates load at a precise point on the lever to assure torque accuracy
Memory feature consists of pointers that follow a track on the scale and remain in place to indicate peak torque achieved
Peak torque indicated on the scale is accurate even in destructive applications
Bi-directional accuracy of +/- 2% of Indicated Value from 20% to 100% of capacity meets or exceeds requirements of ASME B107.300-2010 and ISO 6789
Includes FREE certificate of calibration from our +/- .25% Indicated Value accuracy/ISO/IEC 17025 Accredited Calibration Laboratory

$1,945.07

3 SDR 1200I Adjustable Torque Wrench

STR 869747

Micrometer Adjustable Torque Wrenches: SDR Series Micrometer Adjustable Click Wrench, in-lb

Product Group	:	SDR Series Micrometer Adjustable Click Wrench, in-lb
Model	:	3SDR 1200I MG
Torque Range (in.lb)	:	240-1200 lbf in
Scale (in)	:	10 lbf in
Overal Length	:	18.8 in
Weight (lb)	:	1.5 lb

Product Description

Adjust torque value by rotating the grip
Grip lock makes locking in torque value fast, easy, and secure
Tool changees from one end of the scale to the other with the fewest number of turns
Ball-bearing rock-over assembly assures smooth operation enhances repeatability and increases wrench service life
Accuracy of +/- 4% of Indicated Value from 20% to 100% of rated capacity
Meets or exceeds requirements of ASME B107.300-2010 and ISO 6789
Error Proofing By Guidance design provides a strong audible and tactile impulse when the set torque is achieved
Error Proofing By Design flattened case provides the mechanism with superior support resulting in a wrench that is easier to calibrate and one that holds calibration longer
Flattened case prevents side loading during torque application or testing/calibration
Knurled grip offers an ergonomic grip that remains comfortable over long periods of use
Ratchet is built for durability
Ratchet replacement is fast and easy when needed
All tools up to 250 ft-lb capacity come with a rugged, custom-molded plastic case
Includes FREE tabulated calibration certificate from our ISO 17025 certified calibration laboratory

$420.64

M 1800 I

STR 850205

Beam & Dial Torque Wrenches: Flat and Tapered Beam Torque Wrenches, in-lb

Product Group	:	Flat and Tapered Beam Torque Wrenches, in-lb
Model	:	M 1800 I
Torque Scale	:	1800 lbf in
Square	:	50 lbf in
Weight	:	3.75 lb

Product Description

Pivoted handle concentrates load at a precise point on the lever to assure torque accuracy
Memory feature consists of pointers that follow a track on the scale and remain in place to indicate peak torque achieved
Peak torque indicated on the scale is accurate even in destructive applications
Meets or exceeds requirements for ASME B107, 300-2010 and ISO 6789
Includes certificate of calibration from our +/- 25% indicated value accuracy/ISO/IEC 17025 accredited calibration laboratory
850222, 850242, 850191: These products have a pivoted ball handle.

$918.77

3SD 200I MG, Torque Wrench

STR 869159

Micrometer Adjustable Torque Wrenches: SD Series Micrometer Adjustable Click Wrenches, in-lb

Product Group	:	SD Series Micrometer Adjustable Click Wrenches, in-lb
Model	:	3SD 200I MG
Torque Range (in.lb)	:	40-200 lbf in
Scale (in)	:	2 lbf in
Overal Length	:	9.4 in
Weight (lb)	:	1 lb

Product Description

Torque value is adjusted by rotating the grip
Our tools change from the top of the scale to the bottom in the fewest number of turns
Grip lock makes locking in the torque value fast, easy, and secure
Ball-bearing rock-over assembly assures smooth operation, enhances repeatability, and increases wrench service life
Accuracy of +/- 4% of Indicated Value from 20% to 100% of rated capacity
Meets or exceeds requirements of ASME B107.300-2010 and ISO 6789
Design provides a strong audible and tactile pulse when the set torque is achieved
Flattened case provides the mechanism with superior support resulting in a wrench that is easier to calibrate and one that holds calibration longer
Ratchet is built for durability
Ratchet replacement is fast and easy when needed
All tools up to 250 ft-lb, or 300 Nm, capacity come with a rugged, custom-molded plastic case
Includes FREE tabulated calibration certificate.

$325.75

M 200 I

STR 850211

Beam & Dial Torque Wrenches: Flat and Tapered Beam Torque Wrenches, in-lb

Product Group	:	Flat and Tapered Beam Torque Wrenches, in-lb
Model	:	M 200 I
Torque Scale	:	200 lbf in
Square	:	10 lbf in
Weight	:	0.5 lb

Product Description

Pivoted handle concentrates load at a precise point on the lever to assure torque accuracy
Memory feature consists of pointers that follow a track on the scale and remain in place to indicate peak torque achieved
Peak torque indicated on the scale is accurate even in destructive applications
Meets or exceeds requirements for ASME B107, 300-2010 and ISO 6789
Includes certificate of calibration from our +/- 25% indicated value accuracy/ISO/IEC 17025 accredited calibration laboratory
850222, 850242, 850191: These products have a pivoted ball handle.

$630.96

SDRT 1/4 w/ 3/8 Sq. Drive

STR 853752

Smal Ratchet Body with Larger Drive Size, inches

Model	:	SDRT 1/4 with 3/8 Square Drive
Capacity	:	250 lbf in
Square	:	1/4 with 3/8 in

A	:	1.875 in
B	:	1.375 in
C	:	.9375 in
D	:	0.75
E	:	0.625

Product Description

1 7 16 Common Centerline / 36.5 mm Common Centerline

$180.05

3/8 Ratchet Head

STR 853395

Smal Ratchet Body with Larger Drive Size, inches

Model	:	SDRT 3/8 with 1/2 Square Drive
Capacity	:	1250 lbf in
Square	:	3/8 with 1/2 in

A	:	2.00 in
B	:	1.50 in
C	:	1.25 in
D	:	1
E	:	0.5625

Product Description

1 7 16 Common Centerline / 36.5 mm Common Centerline

$239.29

OE 19MM, SPH

STR 853871

Slim Profile Open End Interchangeable Heads for Torque Wrenches

Model	:	OE 19 MM, SPH
Capacity	:	45 Nm
Dimensions Insert	:	19 mm

A	:	47.5 mm
B	:	40.01 mm
C	:	4.50 mm
D	:	25.40 mm
E	:	20.62 mm

Product Description

One piece, cast, proprietary steel selection
All of our heads fit on all of our wrenches
Our smallest head fits on our largest wrench
Our largest head fits on our smallest wrench
Fewer wrenches to buy, calibrate, repair, and manage
No need to buy multiple wrenches and heads to cover different fastener sizes within the same torque range
Sturtevant Richmont interchangeable heads have two common centerlines
Typically for sizes 32 mm and below the common centerline is 365 mm
Sizes larger than 33 mm the common centerline extends to 984 mm

$186.95

2SDR 150I MG

STR 869750

Micrometer Adjustable Torque Wrenches: SDR Series Micrometer Adjustable Click Wrench, in-lb

Product Group	:	SDR Series Micrometer Adjustable Click Wrench, in-lb
Model	:	2SDR 150I MG
Torque Range (in.lb)	:	30-150 lbf in
Scale (in)	:	2 lbf in
Overal Length	:	11.2 in
Weight (lb)	:	1.0 lb

Product Description

Adjust torque value by rotating the grip
Grip lock makes locking in torque value fast, easy, and secure
Tool changees from one end of the scale to the other with the fewest number of turns
Ball-bearing rock-over assembly assures smooth operation enhances repeatability and increases wrench service life
Accuracy of +/- 4% of Indicated Value from 20% to 100% of rated capacity
Meets or exceeds requirements of ASME B107.300-2010 and ISO 6789
Error Proofing By Guidance design provides a strong audible and tactile impulse when the set torque is achieved
Error Proofing By Design flattened case provides the mechanism with superior support resulting in a wrench that is easier to calibrate and one that holds calibration longer
Flattened case prevents side loading during torque application or testing/calibration
Knurled grip offers an ergonomic grip that remains comfortable over long periods of use
Ratchet is built for durability
Ratchet replacement is fast and easy when needed
All tools up to 250 ft-lb capacity come with a rugged, custom-molded plastic case
Includes FREE tabulated calibration certificate from our ISO 17025 certified calibration laboratory

$368.45

3 SDR 100 Torque Wrench, Knurl-Grip

STR 869754

Micrometer Adjustable Torque Wrenches: SDR Series Micrometer Adjustable Click Wrench, ft-lb

Product Group	:	SDR Series Micrometer Adjustable Click Wrench, ft-lb
Model	:	3SDR 100 MG
Torque Range (ft.lb)	:	20-100 lbf ft
Scale (lb)	:	1 lbf ft
Square Drive	:	3/8 in
Weight (lb)	:	1.5 lb

Product Description

Adjust torque value by rotating the grip
Grip lock makes locking in torque value fast, easy, and secure
Tool changees from one end of the scale to the other with the fewest number of turns
Ball-bearing rock-over assembly assures smooth operation enhances repeatability and increases wrench service life
Accuracy of +/- 4% of Indicated Value from 20% to 100% of rated capacity
Meets or exceeds requirements of ASME B107.300-2010 and ISO 6789
Error Proofing By Guidance design provides a strong audible and tactile impulse when the set torque is achieved
Error Proofing By Design flattened case provides the mechanism with superior support resulting in a wrench that is easier to calibrate and one that holds calibration longer
Flattened case prevents side loading during torque application or testing/calibration
Knurled grip offers an ergonomic grip that remains comfortable over long periods of use
Ratchet is built for durability
Ratchet replacement is fast and easy when needed
All tools up to 250 ft-lb capacity come with a rugged, custom-molded plastic case
Includes FREE tabulated calibration certificate from our ISO 17025 certified calibration laboratory

$420.64

3SDR 150I Torque Wrench, Knurl-Grip

STR 869751

Micrometer Adjustable Torque Wrenches: SDR Series Micrometer Adjustable Click Wrench, in-lb

Product Group	:	SDR Series Micrometer Adjustable Click Wrench, in-lb
Model	:	3SDR 150I MG
Torque Range (in.lb)	:	30-150 lbf in
Scale (in)	:	2 lbf in
Overal Length	:	10.6 in
Weight (lb)	:	1.1 lb

Product Description

Adjust torque value by rotating the grip
Grip lock makes locking in torque value fast, easy, and secure
Tool changees from one end of the scale to the other with the fewest number of turns
Ball-bearing rock-over assembly assures smooth operation enhances repeatability and increases wrench service life
Accuracy of +/- 4% of Indicated Value from 20% to 100% of rated capacity
Meets or exceeds requirements of ASME B107.300-2010 and ISO 6789
Error Proofing By Guidance design provides a strong audible and tactile impulse when the set torque is achieved
Error Proofing By Design flattened case provides the mechanism with superior support resulting in a wrench that is easier to calibrate and one that holds calibration longer
Flattened case prevents side loading during torque application or testing/calibration
Knurled grip offers an ergonomic grip that remains comfortable over long periods of use
Ratchet is built for durability
Ratchet replacement is fast and easy when needed
All tools up to 250 ft-lb capacity come with a rugged, custom-molded plastic case
Includes FREE tabulated calibration certificate from our ISO 17025 certified calibration laboratory

$376.36

4 SDR 1800 I Torque Wrench, Knurl-Grip

STR 869755

Micrometer Adjustable Torque Wrenches: SDR Series Micrometer Adjustable Click Wrench, in-lb

Product Group	:	SDR Series Micrometer Adjustable Click Wrench, in-lb
Model	:	4SDR 1800I MG
Torque Range (in.lb)	:	360-1800 lbf in
Scale (in)	:	10 lbf in
Overal Length	:	19.5 in
Weight (lb)	:	2.0 lb

Product Description

Adjust torque value by rotating the grip
Grip lock makes locking in torque value fast, easy, and secure
Tool changees from one end of the scale to the other with the fewest number of turns
Ball-bearing rock-over assembly assures smooth operation enhances repeatability and increases wrench service life
Accuracy of +/- 4% of Indicated Value from 20% to 100% of rated capacity
Meets or exceeds requirements of ASME B107.300-2010 and ISO 6789
Error Proofing By Guidance design provides a strong audible and tactile impulse when the set torque is achieved
Error Proofing By Design flattened case provides the mechanism with superior support resulting in a wrench that is easier to calibrate and one that holds calibration longer
Flattened case prevents side loading during torque application or testing/calibration
Knurled grip offers an ergonomic grip that remains comfortable over long periods of use
Ratchet is built for durability
Ratchet replacement is fast and easy when needed
All tools up to 250 ft-lb capacity come with a rugged, custom-molded plastic case
Includes FREE tabulated calibration certificate from our ISO 17025 certified calibration laboratory

$461.76

4SDR 250 Torque Wrench, Knurl-Grip

STR 869758

Micrometer Adjustable Torque Wrenches: SDR Series Micrometer Adjustable Click Wrench, ft-lb

Product Group	:	SDR Series Micrometer Adjustable Click Wrench, ft-lb
Model	:	4SDR 250 MG
Torque Range (ft.lb)	:	50-250 lbf ft
Scale (lb)	:	2 lbf ft
Square Drive	:	1/2 in
Weight (lb)	:	3.5 lb

Product Description

Adjust torque value by rotating the grip
Grip lock makes locking in torque value fast, easy, and secure
Tool changees from one end of the scale to the other with the fewest number of turns
Ball-bearing rock-over assembly assures smooth operation enhances repeatability and increases wrench service life
Accuracy of +/- 4% of Indicated Value from 20% to 100% of rated capacity
Meets or exceeds requirements of ASME B107.300-2010 and ISO 6789
Error Proofing By Guidance design provides a strong audible and tactile impulse when the set torque is achieved
Error Proofing By Design flattened case provides the mechanism with superior support resulting in a wrench that is easier to calibrate and one that holds calibration longer
Flattened case prevents side loading during torque application or testing/calibration
Knurled grip offers an ergonomic grip that remains comfortable over long periods of use
Ratchet is built for durability
Ratchet replacement is fast and easy when needed
All tools up to 250 ft-lb capacity come with a rugged, custom-molded plastic case
Includes FREE tabulated calibration certificate from our ISO 17025 certified calibration laboratory

$615.00

3 SDR 15- 75 Torque Wrench, Knurl-Grip

STR 869756

Micrometer Adjustable Torque Wrenches: SDR Series Micrometer Adjustable Click Wrench, ft-lb

Product Group	:	SDR Series Micrometer Adjustable Click Wrench, ft-lb
Model	:	3SDR 75 MG
Torque Range (ft.lb)	:	15-75 lbf ft
Scale (lb)	:	0.5 lbf ft
Square Drive	:	3/8 in
Weight (lb)	:	1.5 lb

Product Description

Adjust torque value by rotating the grip
Grip lock makes locking in torque value fast, easy, and secure
Tool changees from one end of the scale to the other with the fewest number of turns
Ball-bearing rock-over assembly assures smooth operation enhances repeatability and increases wrench service life
Accuracy of +/- 4% of Indicated Value from 20% to 100% of rated capacity
Meets or exceeds requirements of ASME B107.300-2010 and ISO 6789
Error Proofing By Guidance design provides a strong audible and tactile impulse when the set torque is achieved
Error Proofing By Design flattened case provides the mechanism with superior support resulting in a wrench that is easier to calibrate and one that holds calibration longer
Flattened case prevents side loading during torque application or testing/calibration
Knurled grip offers an ergonomic grip that remains comfortable over long periods of use
Ratchet is built for durability
Ratchet replacement is fast and easy when needed
All tools up to 250 ft-lb capacity come with a rugged, custom-molded plastic case
Includes FREE tabulated calibration certificate from our ISO 17025 certified calibration laboratory

$390.59

4 SDR 150 Torque Wrench, Knurl-Grip

STR 869757

Micrometer Adjustable Torque Wrenches: SDR Series Micrometer Adjustable Click Wrench, ft-lb

Product Group	:	SDR Series Micrometer Adjustable Click Wrench, ft-lb
Model	:	4SDR 150 MG
Torque Range (ft.lb)	:	30-150 lbf ft
Scale (lb)	:	1 lbf ft
Square Drive	:	1/2 in
Weight (lb)	:	2.0 lb

Product Description

Adjust torque value by rotating the grip
Grip lock makes locking in torque value fast, easy, and secure
Tool changees from one end of the scale to the other with the fewest number of turns
Ball-bearing rock-over assembly assures smooth operation enhances repeatability and increases wrench service life
Accuracy of +/- 4% of Indicated Value from 20% to 100% of rated capacity
Meets or exceeds requirements of ASME B107.300-2010 and ISO 6789
Error Proofing By Guidance design provides a strong audible and tactile impulse when the set torque is achieved
Error Proofing By Design flattened case provides the mechanism with superior support resulting in a wrench that is easier to calibrate and one that holds calibration longer
Flattened case prevents side loading during torque application or testing/calibration
Knurled grip offers an ergonomic grip that remains comfortable over long periods of use
Ratchet is built for durability
Ratchet replacement is fast and easy when needed
All tools up to 250 ft-lb capacity come with a rugged, custom-molded plastic case
Includes FREE tabulated calibration certificate from our ISO 17025 certified calibration laboratory

$461.76

3 SDR 200I Torque Wrench, Knurl-Grip

STR 869761

Micrometer Adjustable Torque Wrenches: SDR Series Micrometer Adjustable Click Wrench, in-lb

Product Group	:	SDR Series Micrometer Adjustable Click Wrench, in-lb
Model	:	3SDR 200I MG
Torque Range (in.lb)	:	40-200 lbf in
Scale (in)	:	2 lbf in
Overal Length	:	10.7 in
Weight (lb)	:	1.1 lb

Product Description

Adjust torque value by rotating the grip
Grip lock makes locking in torque value fast, easy, and secure
Tool changees from one end of the scale to the other with the fewest number of turns
Ball-bearing rock-over assembly assures smooth operation enhances repeatability and increases wrench service life
Accuracy of +/- 4% of Indicated Value from 20% to 100% of rated capacity
Meets or exceeds requirements of ASME B107.300-2010 and ISO 6789
Error Proofing By Guidance design provides a strong audible and tactile impulse when the set torque is achieved
Error Proofing By Design flattened case provides the mechanism with superior support resulting in a wrench that is easier to calibrate and one that holds calibration longer
Flattened case prevents side loading during torque application or testing/calibration
Knurled grip offers an ergonomic grip that remains comfortable over long periods of use
Ratchet is built for durability
Ratchet replacement is fast and easy when needed
All tools up to 250 ft-lb capacity come with a rugged, custom-molded plastic case
Includes FREE tabulated calibration certificate from our ISO 17025 certified calibration laboratory

$376.36

CCM 1800I Torque Wrench, Knurl-Grip

STR 869762

Micrometer Adjustable Torque Wrenches: CCM Micrometer Adjustable Click Wrenches, in-lb

Product Group	:	CCM Micrometer Adjustable Click Wrenches, in-lb
Model	:	CCM 1800I MG
Torque Range (in.lb)	:	360-1800 lbf in
Scale (in)	:	10 lbf in
Overal Length	:	17.1 in

Product Description

Accuracy of +/-4% of Indicated Value from 20% to 100% of the rated capacity
Meets or exceeds the requirements of ASME B107.300-2010 and ISO 6789
SR Dovetail connects with all of our interchangeable heads
Every one of our interchangeable heads fits on every one of our wrenches
No need to buy multiple wrenches and heads to cover all fastener sizes within a given torque range
Error Proofing By Guidance: Strong audible and tactile impulse when set torque value is achieved
Knurl Grip handle is rugged and comfortable in your hand for long periods of time
Fast adjustment: These wrenches need the fewest number of rotations to move up and down the scale
Error Proofing By Design: Spring tension on these wrenches can be reduced without the wrench falling out of tolerance
Includes FREE certification from our +/-.25% Indicated Value ISO/IEC 17025 Accredited Calibration Laboratory
Open End head sizes go from 1/4" to 1 1/4" (or 5 mm to 32 mm) with our 1 7/16" (36.5 mm) common centerline
Open End head sizes from 1 5/16" to 3 1/4" (or 34 mm to 60 mm) maintain the 3 7/8" (98.4 mm) common centerline
All wrenches with a capacity over 150 ft. lbs. or 200 Nm are calibrated with interchangeable heads having a common centerline of 3 7/8 inches (98.4 mm)

$398.50

CCM 150I Torque Wrench, Knurl-Grip

STR 869765

Micrometer Adjustable Torque Wrenches: CCM Micrometer Adjustable Click Wrenches, in-lb

Product Group	:	CCM Micrometer Adjustable Click Wrenches, in-lb
Model	:	CCM 150I MG
Torque Range (in.lb)	:	30-150 lbf in
Scale (in)	:	2 lbf in
Overal Length	:	10.1 in

Product Description

Accuracy of +/-4% of Indicated Value from 20% to 100% of the rated capacity
Meets or exceeds the requirements of ASME B107.300-2010 and ISO 6789
SR Dovetail connects with all of our interchangeable heads
Every one of our interchangeable heads fits on every one of our wrenches
No need to buy multiple wrenches and heads to cover all fastener sizes within a given torque range
Error Proofing By Guidance: Strong audible and tactile impulse when set torque value is achieved
Knurl Grip handle is rugged and comfortable in your hand for long periods of time
Fast adjustment: These wrenches need the fewest number of rotations to move up and down the scale
Error Proofing By Design: Spring tension on these wrenches can be reduced without the wrench falling out of tolerance
Includes FREE certification from our +/-.25% Indicated Value ISO/IEC 17025 Accredited Calibration Laboratory
Open End head sizes go from 1/4" to 1 1/4" (or 5 mm to 32 mm) with our 1 7/16" (36.5 mm) common centerline
Open End head sizes from 1 5/16" to 3 1/4" (or 34 mm to 60 mm) maintain the 3 7/8" (98.4 mm) common centerline
All wrenches with a capacity over 150 ft. lbs. or 200 Nm are calibrated with interchangeable heads having a common centerline of 3 7/8 inches (98.4 mm)

$303.63

OE 10mm

STR 819943

Open End Interchangeable Heads for Torque Wrenches

Model	:	OE-10 mm
Capacity	:	22
Dimensions Insert	:	10

A	:	45.72 mm
B	:	27.94 mm
C	:	7.62 mm
D	:	20.32 mm
E	:	17.78 in

Product Description

One piece, cast, proprietary steel selection
All of our heads fit on all of our wrenches
Our smallest head fits on our largest wrench
Our largest head fits on our smallest wrench
Fewer wrenches to buy, calibrate, repair, and manage
No need to buy multiple wrenches and heads to cover different fastener sizes within the same torque range
Sturtevant Richmont interchangeable heads have two common centerlines
Typically for sizes 32 mm and below the common centerline is 365 mm
Sizes larger than 33 mm the common centerline extends to 984 mm

$94.89

Open End OE-14mm Head Only

STR 819946

Open End Interchangeable Heads for Torque Wrenches

Model	:	OE-14 mm
Capacity	:	45
Dimensions Insert	:	14

A	:	48.26 mm
B	:	33.02 mm
C	:	10.16 mm
D	:	20.32 mm
E	:	17.78 mm

Product Description

One piece, cast, proprietary steel selection
All of our heads fit on all of our wrenches
Our smallest head fits on our largest wrench
Our largest head fits on our smallest wrench
Fewer wrenches to buy, calibrate, repair, and manage
No need to buy multiple wrenches and heads to cover different fastener sizes within the same torque range
Sturtevant Richmont interchangeable heads have two common centerlines
Typically for sizes 32 mm and below the common centerline is 365 mm
Sizes larger than 33 mm the common centerline extends to 984 mm

$99.63

OE 13mm

STR 819945

Open End Interchangeable Heads for Torque Wrenches

Model	:	OE-13 mm
Capacity	:	39
Dimensions Insert	:	13

A	:	48.26 mm
B	:	33.02 mm
C	:	10.16 mm
D	:	20.32 mm
E	:	17.78 mm

Product Description

One piece, cast, proprietary steel selection
All of our heads fit on all of our wrenches
Our smallest head fits on our largest wrench
Our largest head fits on our smallest wrench
Fewer wrenches to buy, calibrate, repair, and manage
No need to buy multiple wrenches and heads to cover different fastener sizes within the same torque range
Sturtevant Richmont interchangeable heads have two common centerlines
Typically for sizes 32 mm and below the common centerline is 365 mm
Sizes larger than 33 mm the common centerline extends to 984 mm

$99.63

OE 17mm Head

STR 819948

Open End Interchangeable Heads for Torque Wrenches

Model	:	OE-17 mm
Capacity	:	79
Dimensions Insert	:	17

A	:	48.26 mm
B	:	40.64 mm
C	:	10.16 mm
D	:	22.86 mm
E	:	17.78 mm

Product Description

One piece, cast, proprietary steel selection
All of our heads fit on all of our wrenches
Our smallest head fits on our largest wrench
Our largest head fits on our smallest wrench
Fewer wrenches to buy, calibrate, repair, and manage
No need to buy multiple wrenches and heads to cover different fastener sizes within the same torque range
Sturtevant Richmont interchangeable heads have two common centerlines
Typically for sizes 32 mm and below the common centerline is 365 mm
Sizes larger than 33 mm the common centerline extends to 984 mm

$99.63

OE 16MM

STR 819947

Open End Interchangeable Heads for Torque Wrenches

Model	:	OE-16 mm
Capacity	:	67
Dimensions Insert	:	16

A	:	48.26 mm
B	:	40.64 mm
C	:	10.16 mm
D	:	22.86 mm
E	:	17.78 mm

Product Description

One piece, cast, proprietary steel selection
All of our heads fit on all of our wrenches
Our smallest head fits on our largest wrench
Our largest head fits on our smallest wrench
Fewer wrenches to buy, calibrate, repair, and manage
No need to buy multiple wrenches and heads to cover different fastener sizes within the same torque range
Sturtevant Richmont interchangeable heads have two common centerlines
Typically for sizes 32 mm and below the common centerline is 365 mm
Sizes larger than 33 mm the common centerline extends to 984 mm

$99.63

OE 19mm

STR 819949

Open End Interchangeable Heads for Torque Wrenches

Model	:	OE-19 mm
Capacity	:	113
Dimensions Insert	:	19

A	:	50.8 mm
B	:	45.72 mm
C	:	12.70 mm
D	:	25.40 mm
E	:	17.78 mm

Product Description

One piece, cast, proprietary steel selection
All of our heads fit on all of our wrenches
Our smallest head fits on our largest wrench
Our largest head fits on our smallest wrench
Fewer wrenches to buy, calibrate, repair, and manage
No need to buy multiple wrenches and heads to cover different fastener sizes within the same torque range
Sturtevant Richmont interchangeable heads have two common centerlines
Typically for sizes 32 mm and below the common centerline is 365 mm
Sizes larger than 33 mm the common centerline extends to 984 mm

$99.63

Open End OE-21mm Head Only

STR 819950

Open End Interchangeable Heads for Torque Wrenches

Model	:	OE-21 mm
Capacity	:	140
Dimensions Insert	:	21

A	:	50.8 mm
B	:	45.72 mm
C	:	12.70 mm
D	:	25.40 mm
E	:	20.32 mm

Product Description

One piece, cast, proprietary steel selection
All of our heads fit on all of our wrenches
Our smallest head fits on our largest wrench
Our largest head fits on our smallest wrench
Fewer wrenches to buy, calibrate, repair, and manage
No need to buy multiple wrenches and heads to cover different fastener sizes within the same torque range
Sturtevant Richmont interchangeable heads have two common centerlines
Typically for sizes 32 mm and below the common centerline is 365 mm
Sizes larger than 33 mm the common centerline extends to 984 mm

$109.11

OE 22mm

STR 819951

Open End Interchangeable Heads for Torque Wrenches

Model	:	OE-22 mm
Capacity	:	169
Dimensions Insert	:	22

A	:	50.8 mm
B	:	53.34 mm
C	:	12.70 mm
D	:	33.02 mm
E	:	20.32 mm

Product Description

One piece, cast, proprietary steel selection
All of our heads fit on all of our wrenches
Our smallest head fits on our largest wrench
Our largest head fits on our smallest wrench
Fewer wrenches to buy, calibrate, repair, and manage
No need to buy multiple wrenches and heads to cover different fastener sizes within the same torque range
Sturtevant Richmont interchangeable heads have two common centerlines
Typically for sizes 32 mm and below the common centerline is 365 mm
Sizes larger than 33 mm the common centerline extends to 984 mm

$109.11

Open End OE-24mm Head Only

STR 819952

Open End Interchangeable Heads for Torque Wrenches

Model	:	OE-24 mm
Capacity	:	197
Dimensions Insert	:	24

A	:	50.8 mm
B	:	53.34 mm
C	:	12.70 mm
D	:	33.02 mm
E	:	20.32 mm

Product Description

One piece, cast, proprietary steel selection
All of our heads fit on all of our wrenches
Our smallest head fits on our largest wrench
Our largest head fits on our smallest wrench
Fewer wrenches to buy, calibrate, repair, and manage
No need to buy multiple wrenches and heads to cover different fastener sizes within the same torque range
Sturtevant Richmont interchangeable heads have two common centerlines
Typically for sizes 32 mm and below the common centerline is 365 mm
Sizes larger than 33 mm the common centerline extends to 984 mm

$115.43

Open End OE-32mm Head Only

STR 819958

Open End Interchangeable Heads for Torque Wrenches

Model	:	OE-32 mm
Capacity	:	338
Dimensions Insert	:	32

A	:	58.42 mm
B	:	71.12 mm
C	:	12.70 mm
D	:	33.02 mm
E	:	20.32 mm

Product Description

One piece, cast, proprietary steel selection
All of our heads fit on all of our wrenches
Our smallest head fits on our largest wrench
Our largest head fits on our smallest wrench
Fewer wrenches to buy, calibrate, repair, and manage
No need to buy multiple wrenches and heads to cover different fastener sizes within the same torque range
Sturtevant Richmont interchangeable heads have two common centerlines
Typically for sizes 32 mm and below the common centerline is 365 mm
Sizes larger than 33 mm the common centerline extends to 984 mm

$129.67

OE 30mm

STR 819956

Open End Interchangeable Heads for Torque Wrenches

Model	:	OE-30 mm
Capacity	:	310
Dimensions Insert	:	30

A	:	58.42 mm
B	:	71.12 mm
C	:	12.70 mm
D	:	33.02 mm
E	:	20.32 mm

Product Description

One piece, cast, proprietary steel selection
All of our heads fit on all of our wrenches
Our smallest head fits on our largest wrench
Our largest head fits on our smallest wrench
Fewer wrenches to buy, calibrate, repair, and manage
No need to buy multiple wrenches and heads to cover different fastener sizes within the same torque range
Sturtevant Richmont interchangeable heads have two common centerlines
Typically for sizes 32 mm and below the common centerline is 365 mm
Sizes larger than 33 mm the common centerline extends to 984 mm

$129.67

CCM 600I Torque Wrench, Knurl-Grip

STR 869763

Micrometer Adjustable Torque Wrenches: CCM Micrometer Adjustable Click Wrenches, in-lb

Product Group	:	CCM Micrometer Adjustable Click Wrenches, in-lb
Model	:	CCM 600I MG
Torque Range (in.lb)	:	120-600 lbf in
Scale (in)	:	5 lbf in
Overal Length	:	13.8 in

Product Description

Accuracy of +/-4% of Indicated Value from 20% to 100% of the rated capacity
Meets or exceeds the requirements of ASME B107.300-2010 and ISO 6789
SR Dovetail connects with all of our interchangeable heads
Every one of our interchangeable heads fits on every one of our wrenches
No need to buy multiple wrenches and heads to cover all fastener sizes within a given torque range
Error Proofing By Guidance: Strong audible and tactile impulse when set torque value is achieved
Knurl Grip handle is rugged and comfortable in your hand for long periods of time
Fast adjustment: These wrenches need the fewest number of rotations to move up and down the scale
Error Proofing By Design: Spring tension on these wrenches can be reduced without the wrench falling out of tolerance
Includes FREE certification from our +/-.25% Indicated Value ISO/IEC 17025 Accredited Calibration Laboratory
Open End head sizes go from 1/4" to 1 1/4" (or 5 mm to 32 mm) with our 1 7/16" (36.5 mm) common centerline
Open End head sizes from 1 5/16" to 3 1/4" (or 34 mm to 60 mm) maintain the 3 7/8" (98.4 mm) common centerline
All wrenches with a capacity over 150 ft. lbs. or 200 Nm are calibrated with interchangeable heads having a common centerline of 3 7/8 inches (98.4 mm)

$317.86

CCM 200Nm Torque Wrench, Knurl-Grip, Metric

STR 869787

Micrometer Adjustable Torque Wrenches: CCM Micrometer Adjustable Click Wrenches, Nm

Product Group	:	CCM Micrometer Adjustable Click Wrenches, Nm
Model	:	CCM 200NM MG
Torque Range (Nm)	:	40-200 Nm
Scale (Nm)	:	1 Nm

Product Description

Accuracy of +/-4% of Indicated Value from 20% to 100% of the rated capacity
Meets or exceeds the requirements of ASME B107.300-2010 and ISO 6789
SR Dovetail connects with all of our interchangeable heads
Every one of our interchangeable heads fits on every one of our wrenches
No need to buy multiple wrenches and heads to cover all fastener sizes within a given torque range
Error Proofing By Guidance: Strong audible and tactile impulse when set torque value is achieved
Knurl Grip handle is rugged and comfortable in your hand for long periods of time
Fast adjustment: These wrenches need the fewest number of rotations to move up and down the scale
Error Proofing By Design: Spring tension on these wrenches can be reduced without the wrench falling out of tolerance
Includes FREE certification from our +/-.25% Indicated Value ISO/IEC 17025 Accredited Calibration Laboratory
Open End head sizes go from 1/4" to 1 1/4" (or 5 mm to 32 mm) with our 1 7/16" (36.5 mm) common centerline
Open End head sizes from 1 5/16" to 3 1/4" (or 34 mm to 60 mm) maintain the 3 7/8" (98.4 mm) common centerline
All wrenches with a capacity over 150 ft. lbs. or 200 Nm are calibrated with interchangeable heads having a common centerline of 3 7/8 inches (98.4 mm)

$398.50
