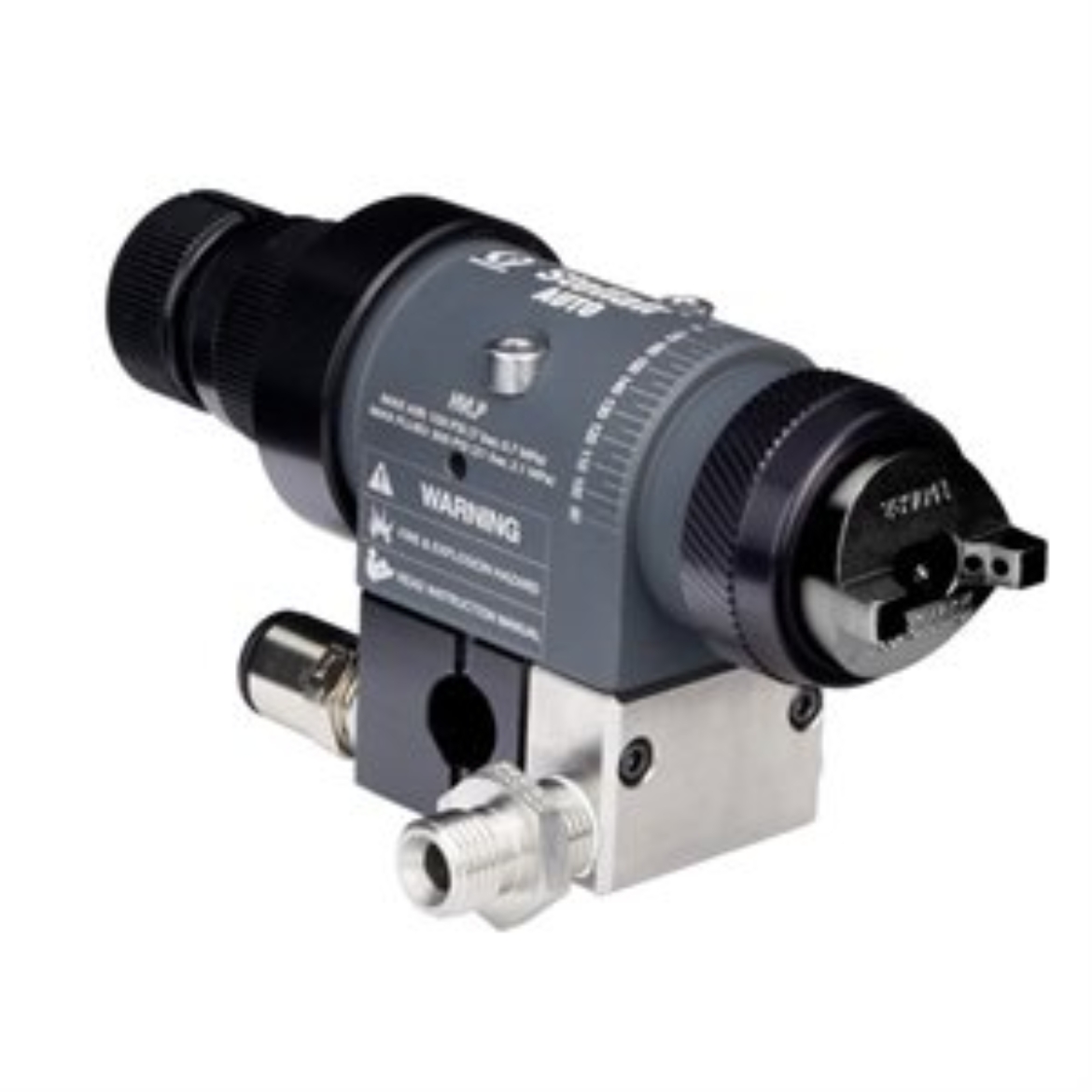

Stellair Automatic Air Spray Gun, HVLP, 0.055 in (1.4 mm) Nozzle For General Applications

GG 25F215

GUN, AUTO, HVLP .055, MANIFOLD, ADJ

Graco 25F215 Stellair Automatic Air Spray Gun, HVLP, 0.055 in (1.4 mm) Nozzle for General Applications with fluid control knob, with side inlet manifold (imperial)

High volume low pressure (HVLP) air spray gun produces stellar results on an automated paint line or in a robotic spray booth.

• High volume low pressure (HVLP) air spray produces a controlled, low velocity spray pattern that reduces bounce back and overspray, while meeting environmental regulations.
• General industry air caps and nozzles produce a uniform, high quality spray pattern with low atomizing pressure.
• Precise fluid flow control click knob with true zero set point ensures accurate paint thickness.
• Patented spray pattern alignment and pathing tool ensures accurate and repeatable spray angle. It is easily attached and detached from the gun to keep production moving.
• One piece fluid cartridge can be removed and replaced so quickly that it nearly eliminates maintenance related downtime.

• Application: General
• Applicator Type: Automatic

• Body Material: Metal

• Compatible Material: Adhesives, Ceramics, Fast-Set, High Solids, Sealants, Solvent borne Paints, Stains, UV Coating, Waterborne

• Fluid Adjustment Knob: Clicking
• Fluid Orifice Size (in): 0.055
• Fluid Orifice Size (mm): 1.4

• Gun Model: Stellair
• Gun Series: Automatic
• Gun Type: HVLP Gun
• Gun Weight (g): 430
• Gun Weight (lb): 1

• Manifold Type: Side Inlet

• Maximum Air Pressure (bar): 7

• Maximum Air Pressure (MPa): 0.7
• Maximum Air Pressure (psi): 100

• Maximum Flow Rate (oz/min): 18

• Maximum Fluid Temperature (°C): 49
• Maximum Fluid Temperature (°F): 120

• Maximum Fluid Temperature (°C): 49
• Maximum Fluid Temperature (°F): 120

• Maximum Fluid Working Pressure (bar): 21
• Maximum Fluid Working Pressure (MPa): 2.1
• Maximum Fluid Working Pressure (psi): 300

• Minimum Air Inlet Pressure (bar): 3.4
• Minimum Air Inlet Pressure (MPa): 0.34
• Minimum Air Inlet Pressure (psi): 50

• Needle Tip Material: PEEK
• Nozzle Size (in): 0.055
• Nozzle Size (mm): 1.4

• Overall Height (in): 2.95
• Overall Height (mm): 75
• Overall Length (in): 5.9
• Overall Length (mm): 150
• Overall Width (in): 3.55
• Overall Width (mm): 90.2
