GUN, HVLP (.086)

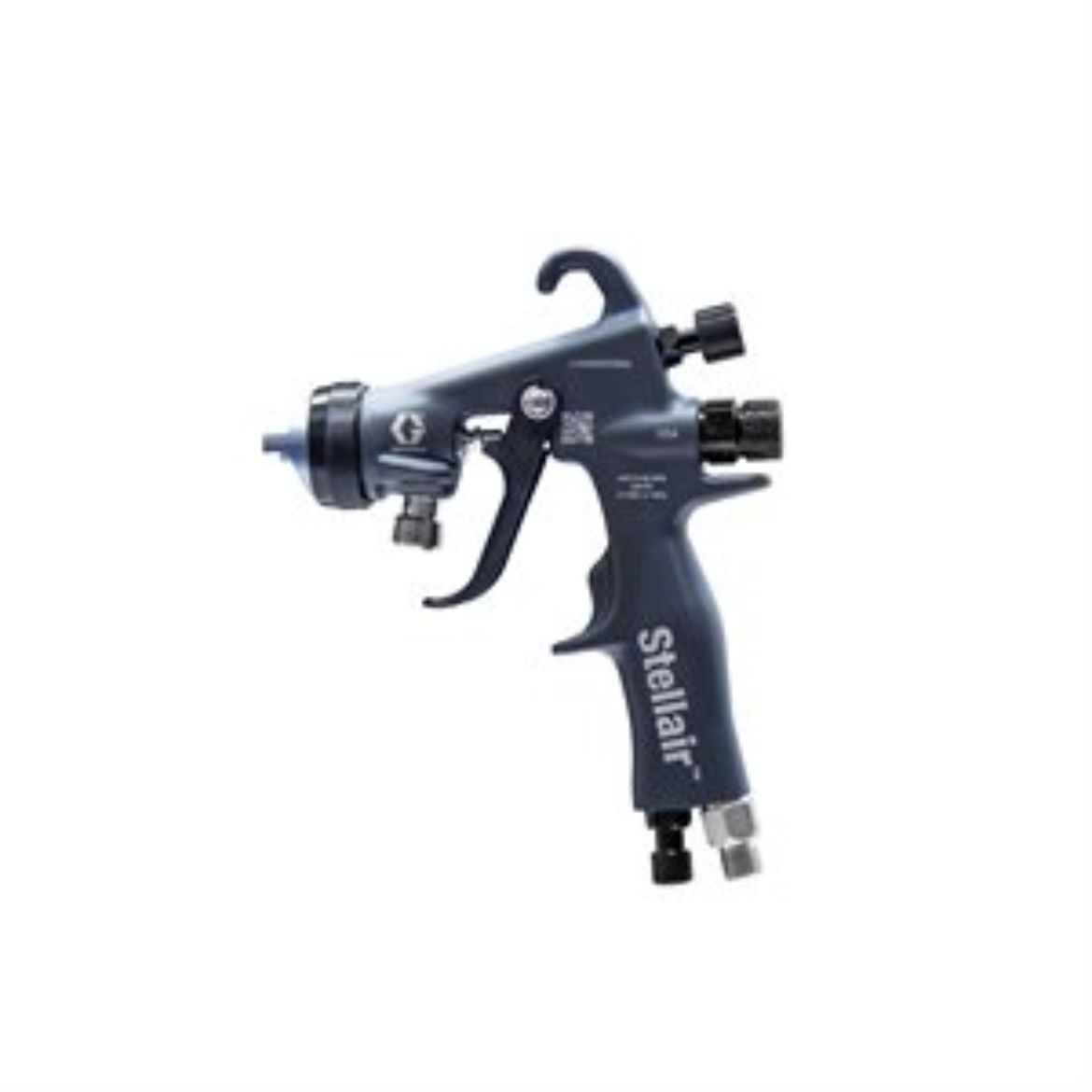

Graco 2006146 Stellair Air Spray Gun, HVLP, 0.086 in (2.2 mm), General Industry
Pressure feed air spray gun delivers the all-star ergonomics, performance, and serviceability industrial painters need to produce stellar results.
Application: Whether you are a custom shop or a high volume manufacturing facility, Stellair brings industry leading finish quality to these and other applications: automotive, metal, plastic, and wood.
- High volume low pressure (HVLP) air spray produces a controlled, low velocity spray pattern that reduces bounce back and overspray, while meeting environmental regulations.
- General industry air cap produces a uniform, high quality spray pattern with low atomizing pressure that reduces air cap build-up.
- Swivel and hose move with you at any angle, preventing tripping and injury.
- One piece fluid cartridge can be removed and replaced so quickly that it nearly eliminates maintenance related downtime.
- Direct stainless steel fluid path means little solvent is needed to flush the gun, reducing VOC (volatile organic compound) emissions
- Model: Stellair
- Series: Manual
- Trigger Lock: Non-Locking
- Trigger Type: Two-Finger
- Air Inlet Size (in): 1/4
- Air Inlet Size (mm): 6.35
- Air Inlet Thread Type: NPSM
- Application: General Industry
- Compatible Material: Enamel, Epoxies, Fast-Set, High Solids, Latex, Plural Component Materials, Sealants, Solventborne, Urethane, Waterborne
- Feed Type: Pressure Feed
- Fluid Inlet Size (in): 0.375
- Fluid Inlet Size (mm): 9.5250000000000004
- Fluid Inlet Thread Type: NPSM
- Fluid Orifice Size (in): 0.086
- Fluid Orifice Size (mm): 2.2
- Gun Type: HVLP Gun
- Includes: Air Cap, Needle Assembly, Nozzle
- Maximum Air Pressure (bar): 7
- Maximum Air Pressure (MPa): 0.7
- Maximum Air Pressure (psi): 100
- Maximum Fluid Pressure (bar): 21
- Maximum Fluid Pressure (MPa): 2.1
- Maximum Fluid Pressure (psi): 300
