Stellair Air Spray Gun, HVLP, 0.055 In (1.4 mm), Wide Pattern, Peek Tip

STELLAIR GUN, HVLP (.055), WIDE PATTERN

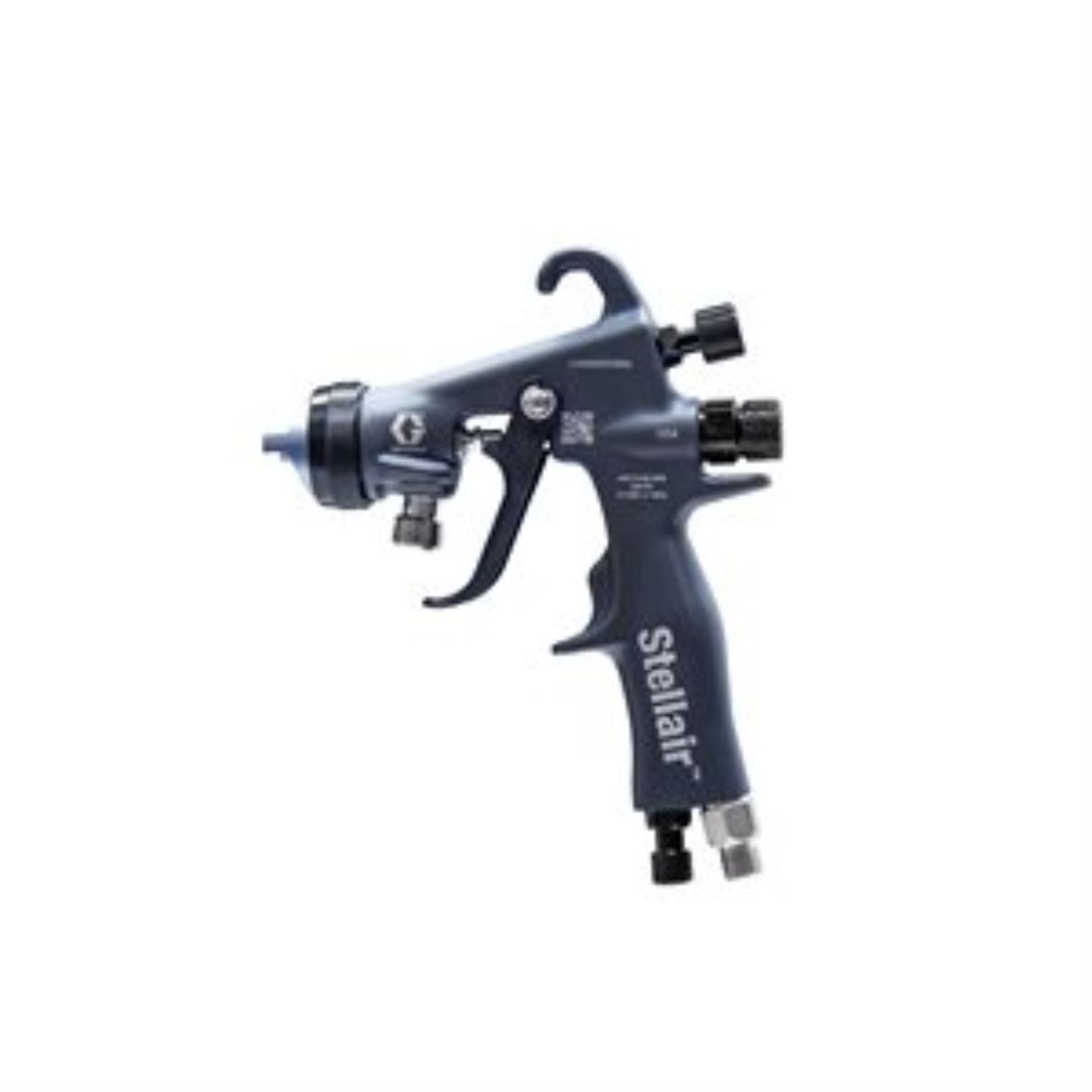

Graco 2004182 Stellair Air Spray Gun, HVLP, 0.055 in (1.4 mm), Wide Pattern, PEEK Tip

Pressure feed air spray gun delivers the all-star ergonomics, performance, and serviceability industrial painters need to produce stellar results.

• High volume low pressure (HVLP) air spray produces a controlled, low velocity spray pattern that reduces bounce back and overspray, while meeting environmental regulations.
• Wide pattern air cap sprays consistent coverage over large surfaces.
• Polyetheretherketone (PEEK) needle tip withstands active use, increasing uptime between service intervals.
• Even balance, light weight, and easy trigger pull help reduce fatigue and muscle strain.
• One piece fluid cartridge can be removed and replaced so quickly that it nearly eliminates maintenance related downtime.
• Direct stainless steel fluid path means little solvent is needed to flush the gun, reducing VOC (volatile organic compound) emissions.

• Model: Stellair
• Series: Manual
• Product Type: Spray Gun
• Spray Type: Air Spray
• Technology Type: HVLP
• Trigger Lock: Non-Locking
• Trigger Type: Two-Finger
• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Type: NPSM
• Application: Wide Pattern
• Compatible Material: CARC, Enamel, Epoxies, Fast-Set, High Solids, Latex, Plural Component Materials, Sealants, Solventborne, Urethane, Waterborne
• Feed Type: Pressure Feed
• Fluid Inlet Size (in): 0.375
• Fluid Inlet Size (mm): 9.52
• Fluid Inlet Thread Type: NPSM
• Fluid Orifice Size (in): 0.055
• Fluid Orifice Size (mm): 0.014
• Gun Type: HVLP Gun
• Includes: Air Cap, Needle Assembly, Nozzle
• Maximum Air Pressure (bar): 7
• Maximum Air Pressure (MPa): 0.7
• Maximum Air Pressure (psi): 100
• Maximum Fluid Pressure (bar): 21
• Maximum Fluid Pressure (MPa): 2.1
• Maximum Fluid Pressure (psi): 300
