STELLAIR AIR SPRAY GUN, HVLP. 0.030 IN (0.8 MM). GENERAL INDUSTRY

GUN, HVLP (.030)

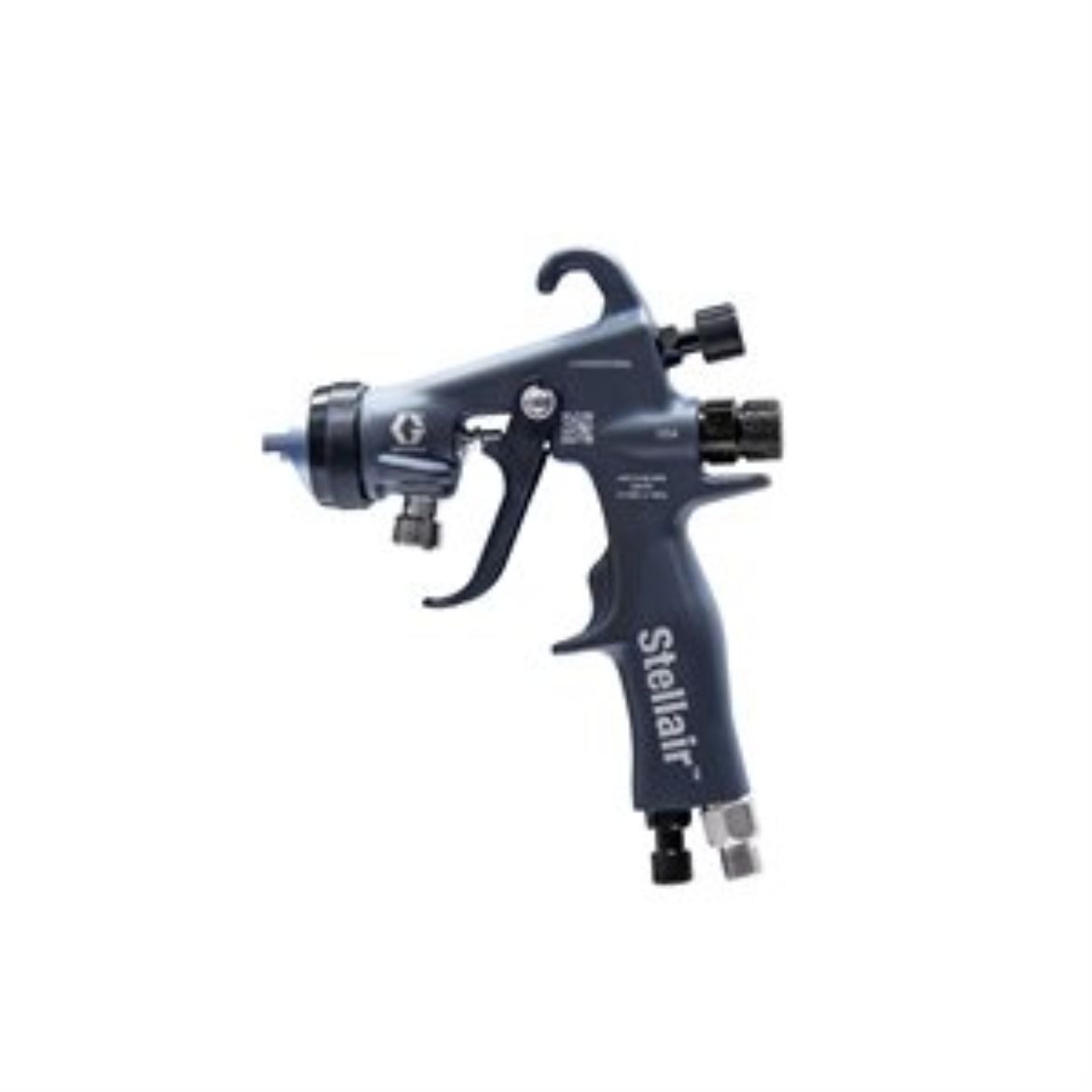

Graco 2006145 Stellair Air Spray Gun, HVLP, 0.030 in (0.8 mm), General Industry

Pressure feed air spray gun delivers the all-star ergonomics, performance, and serviceability industrial painters need to produce stellar results.

• High volume low pressure (HVLP) air spray produces a controlled, low velocity spray pattern that reduces bounce back and overspray, while meeting environmental regulations.
• General industry air cap produces a uniform, high quality spray pattern with low atomizing pressure that reduces air cap build-up.
• Swivel and hose move with you at any angle, preventing tripping and injury.
• One piece fluid cartridge can be removed and replaced so quickly that it nearly eliminates maintenance related downtime.
• Direct stainless steel fluid path means little solvent is needed to flush the gun, reducing VOC (volatile organic compound) emissions.

• Model: Stellair
• Series: Manual
• Trigger Lock: Non-Locking
• Trigger Type: Two-Finger
• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Type: NPSM
• Application: General Industry
• Compatible Material: Enamel, Epoxies, Fast-Set, High Solids, Latex, Plural Component Materials, Sealants, Solventborne, Urethane, Waterborne
• Feed Type: Pressure Feed
• Fluid Inlet Size (in): 0.375
• Fluid Inlet Size (mm): 9.5250000000000004
• Fluid Inlet Thread Type: NPSM
• Fluid Orifice Size (in): 0.030
• Fluid Orifice Size (mm): 0.8
• Gun Type: HVLP Gun
• Includes: Air Cap, Needle Assembly, Nozzle
• Maximum Air Pressure (bar): 7
• Maximum Air Pressure (MPa): 0.7
• Maximum Air Pressure (psi): 100
• Maximum Fluid Pressure (bar): 21
• Maximum Fluid Pressure (MPa): 2.1
• Maximum Fluid Pressure (psi): 300
