Stellair Air Spray Gun, Conventional, 0.070 In. (1.8 MM), Peek Tip, General Industry

STELLAIR GUN, CONV (.070)

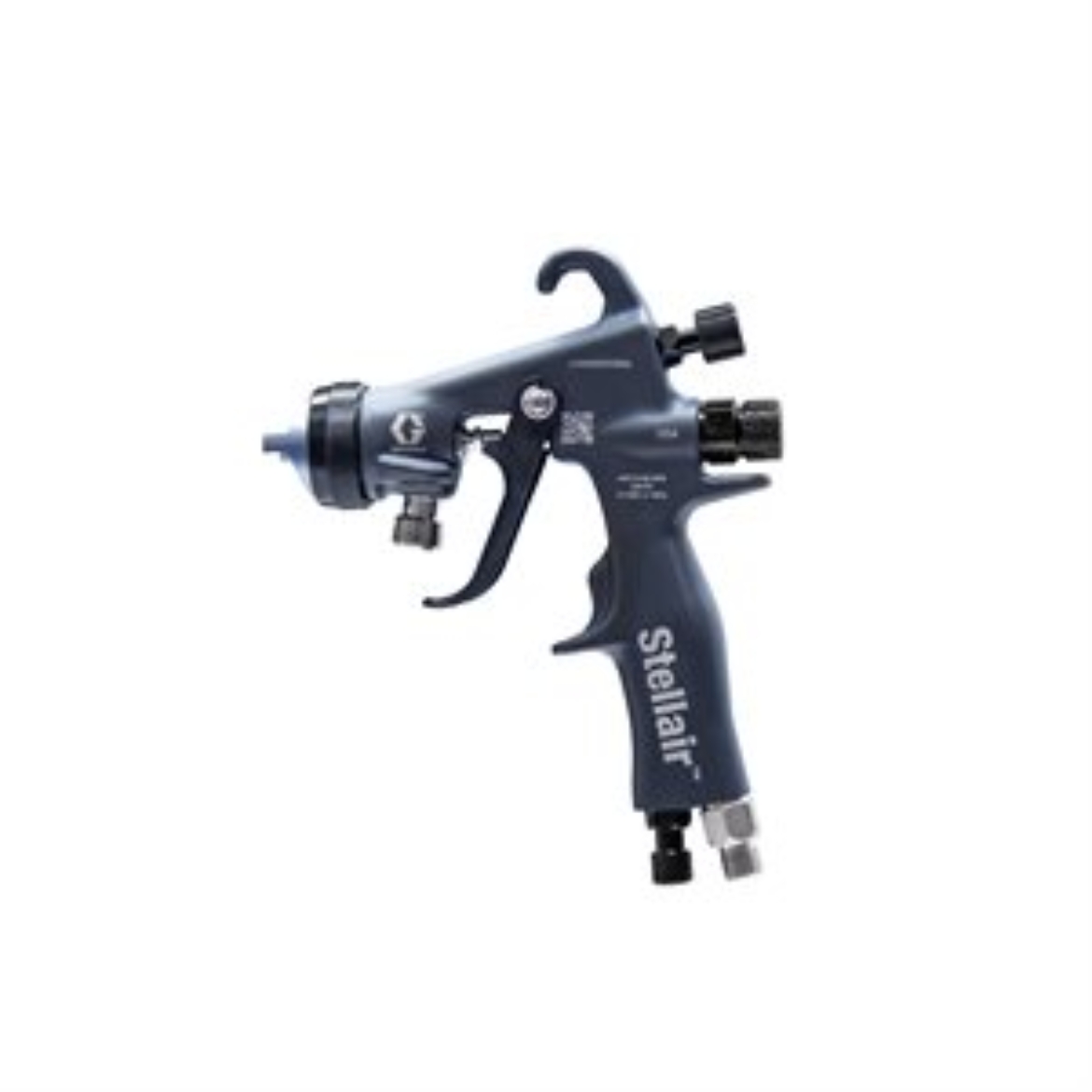

Graco 2004148 Stellair Air Spray Gun, Conventional, 0.070 in (1.8 mm), General Industry, PEEK Tip

Pressure feed air spray gun delivers the all-star ergonomics, performance, and serviceability industrial painters need to produce stellar results.

• Conventional is the traditional air spray method, producing Class A, automotive finish quality.
• General industry air cap produces a uniform, high quality spray pattern with low atomizing pressure that reduces air cap build-up.
• Polyetheretherketone (PEEK) needle tip withstands active use, increasing uptime between service intervals.
• Even balance, light weight, and easy trigger pull help reduce fatigue and muscle strain.
• One piece fluid cartridge can be removed and replaced so quickly that it nearly eliminates maintenance related downtime.
• Direct stainless steel fluid path means little solvent is needed to flush the gun, reducing VOC (volatile organic compound) emissions.

• Model: Stellair
• Series: Manual
• Product Type: Spray Gun
• Spray Type: Air Spray
• Technology Type: Conventional
• Trigger Lock: Non-Locking
• Trigger Type: Two-Finger
• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Type: NPSM
• Application: General Industry
• Compatible Material: CARC, Enamel, Epoxies, Fast-Set, High Solids, Latex, Plural Component Materials, Sealants, Solventborne, Urethane, Waterborne
• Feed Type: Pressure Feed
• Fluid Inlet Size (in): 0.375
• Fluid Inlet Size (mm): 9.52
• Fluid Inlet Thread Type: NPSM
• Fluid Orifice Size (in): 0.070
• Fluid Orifice Size (mm): 0.018
• Gun Type: Conventional Gun
• Includes: Air Cap, Needle Assembly, Nozzle
• Maximum Air Pressure (bar): 7
• Maximum Air Pressure (MPa): 0.7
• Maximum Air Pressure (psi): 100
• Maximum Fluid Pressure (bar): 21
• Maximum Fluid Pressure (MPa): 2.1
• Maximum Fluid Pressure (psi): 300
