STELLAIR GUN, CONV (.042) SST TIP, AUTOMOVTIVE

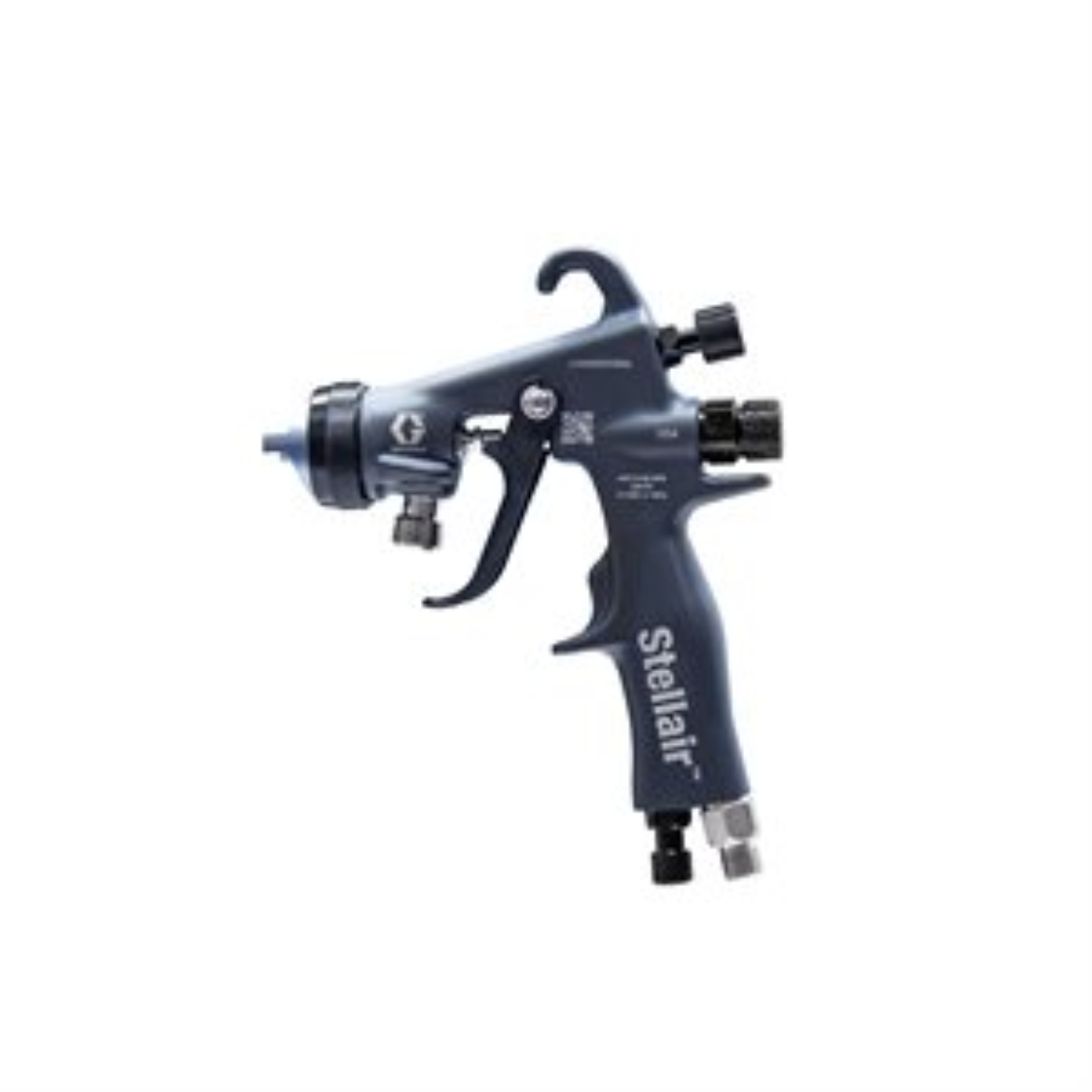

Graco 2004163 Stellair Air Spray Gun, Conventional, 0.042 in (11 mm), Automotive, SST Tip
Pressure feed air spray gun delivers the all-star ergonomics, performance, and serviceability industrial painters need to produce stellar results.
Application: Whether you are a custom shop or a high volume manufacturing facility, Stellair brings industry leading finish quality to these and other applications: automotive, metal, plastic, and wood.
- Conventional is the traditional air spray method, producing Class A, automotive finish quality.
- Automotive air cap produces excellent atomization for Class A finishes when spraying base coats, clear coats and primers.
- Stainless steel (SST) needle tip withstands active use, increasing uptime between service intervals.
- Even balance, light weight, and easy trigger pull help reduce fatigue and muscle strain.
- Quick release trigger and quick connect retaining ring mean tool-free maintenance and service.
- Direct stainless steel fluid path means little solvent is needed to flush the gun, reducing VOC (volatile organic compound) emissions.
- Model: Stellair
- Series: Manual
- Product Type: Spray Gun
- Spray Type: Air Spray
- Technology Type: Conventional
- Trigger Lock: Non-Locking
- Trigger Type: Two-Finger
- Air Inlet Size (in): 1/4
- Air Inlet Size (mm): 6.35
- Air Inlet Thread Type: NPSM
- Application: Automotive
- Compatible Material: CARC, Enamel, Epoxies, Fast-Set, High Solids, Latex, Plural Component Materials, Sealants, Solventborne, Urethane, Waterborne
- Feed Type: Pressure Feed
- Fluid Inlet Size (in): 0.375
- Fluid Inlet Size (mm): 9.52
- Fluid Inlet Thread Type: NPSM
- Fluid Orifice Size (in): 0.042
- Fluid Orifice Size (mm): 0.011
- Gun Type: Conventional Gun
- Includes: Air Cap, Needle Assembly, Nozzle
- Maximum Air Pressure (bar): 7
- Maximum Air Pressure (MPa): 0.7
- Maximum Air Pressure (psi): 100
- Maximum Fluid Pressure (bar): 21
- Maximum Fluid Pressure (MPa): 2.1
- Maximum Fluid Pressure (psi): 300
