STELLAIR GUN, CONV (.040), WOOD

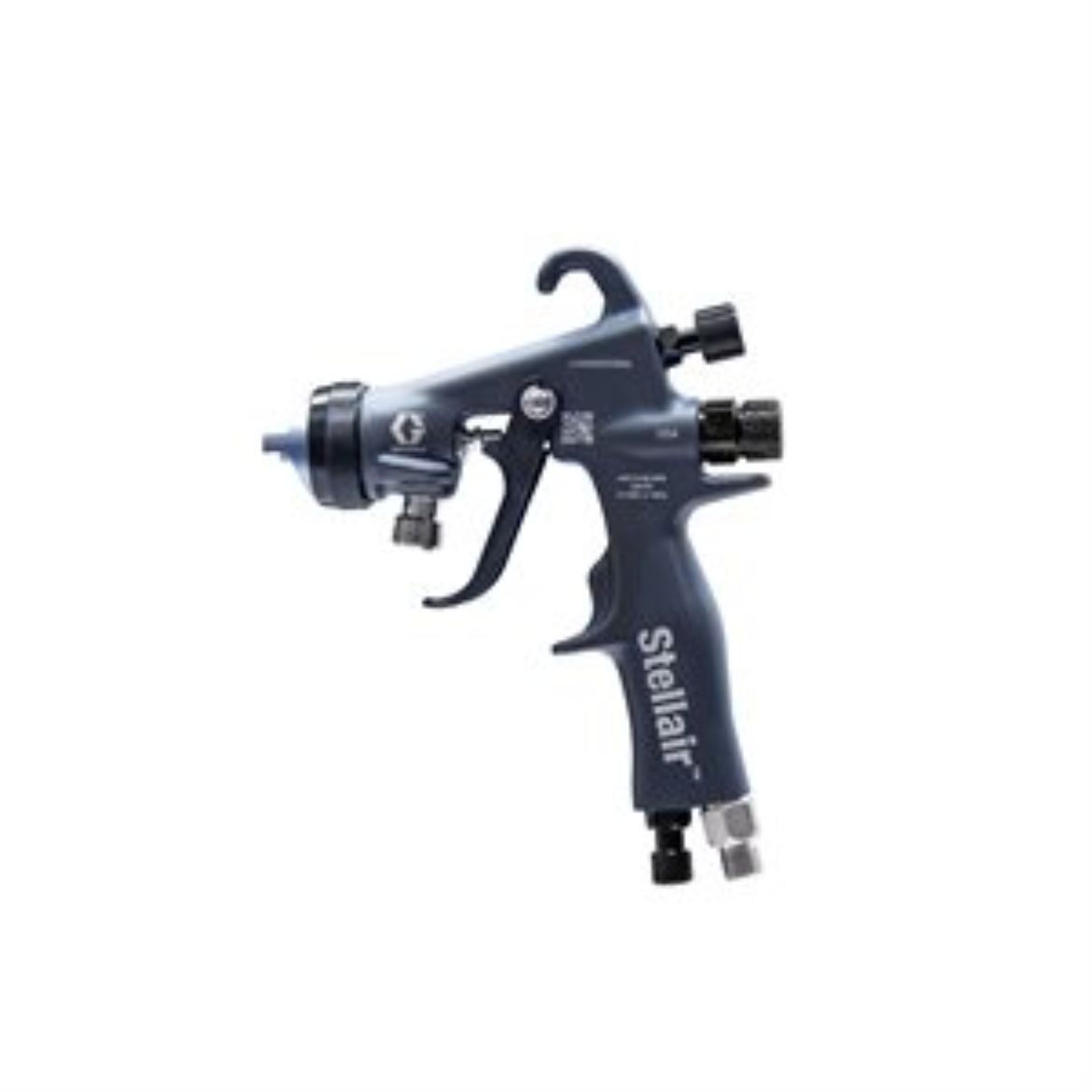

Graco 2004178 Stellair Air Spray Gun, Conventional, 0.040 in (1.0 mm), Wood, PEEK Tip
Pressure feed air spray gun delivers the all-star ergonomics, performance, and serviceability industrial painters need to produce stellar results.
Application: Whether you are a custom shop or a high volume manufacturing facility, Stellair brings industry leading finish quality to these and other applications: automotive, metal, plastic, and wood.
- Conventional is the traditional air spray method, producing Class A, automotive finish quality.
- Wood air cap applies low viscosity material, such as stains and toners, used for wood finishing.
- Swivel and hose move with you at any angle, preventing tripping and injury.
- Quick release trigger and quick connect retaining ring mean tool-free maintenance and service.
- Direct stainless steel fluid path means little solvent is needed to flush the gun, reducing VOC (volatile organic compound) emissions.
- Model: Stellair
- Series: Manual
- Product Type: Spray Gun
- Spray Type: Air Spray
- Technology Type: Conventional
- Trigger Lock: Non-Locking
- Trigger Type: Two-Finger
- Air Inlet Size (in): 1/4
- Air Inlet Size (mm): 6.35
- Air Inlet Thread Type: NPSM
- Application: Wood
- Compatible Material: CARC, Enamel, Epoxies, Fast-Set, High Solids, Latex, Plural Component Materials, Sealants, Solventborne, Urethane, Waterborne
- Feed Type: Pressure Feed
- Fluid Inlet Size (in): 0.375
- Fluid Inlet Size (mm): 9.52
- Fluid Inlet Thread Type: NPSM
- Fluid Orifice Size (in): 0.040
- Fluid Orifice Size (mm): 1
- Gun Type: Conventional Gun
- Includes: Air Cap, Needle Assembly, Nozzle
- Maximum Air Pressure (bar): 7
- Maximum Air Pressure (MPa): 0.7
- Maximum Air Pressure (psi): 100
- Maximum Fluid Pressure (bar): 21
- Maximum Fluid Pressure (MPa): 2.1
- Maximum Fluid Pressure (psi): 300
