STELLAIR GUN, COMP (.070), CERAMIC

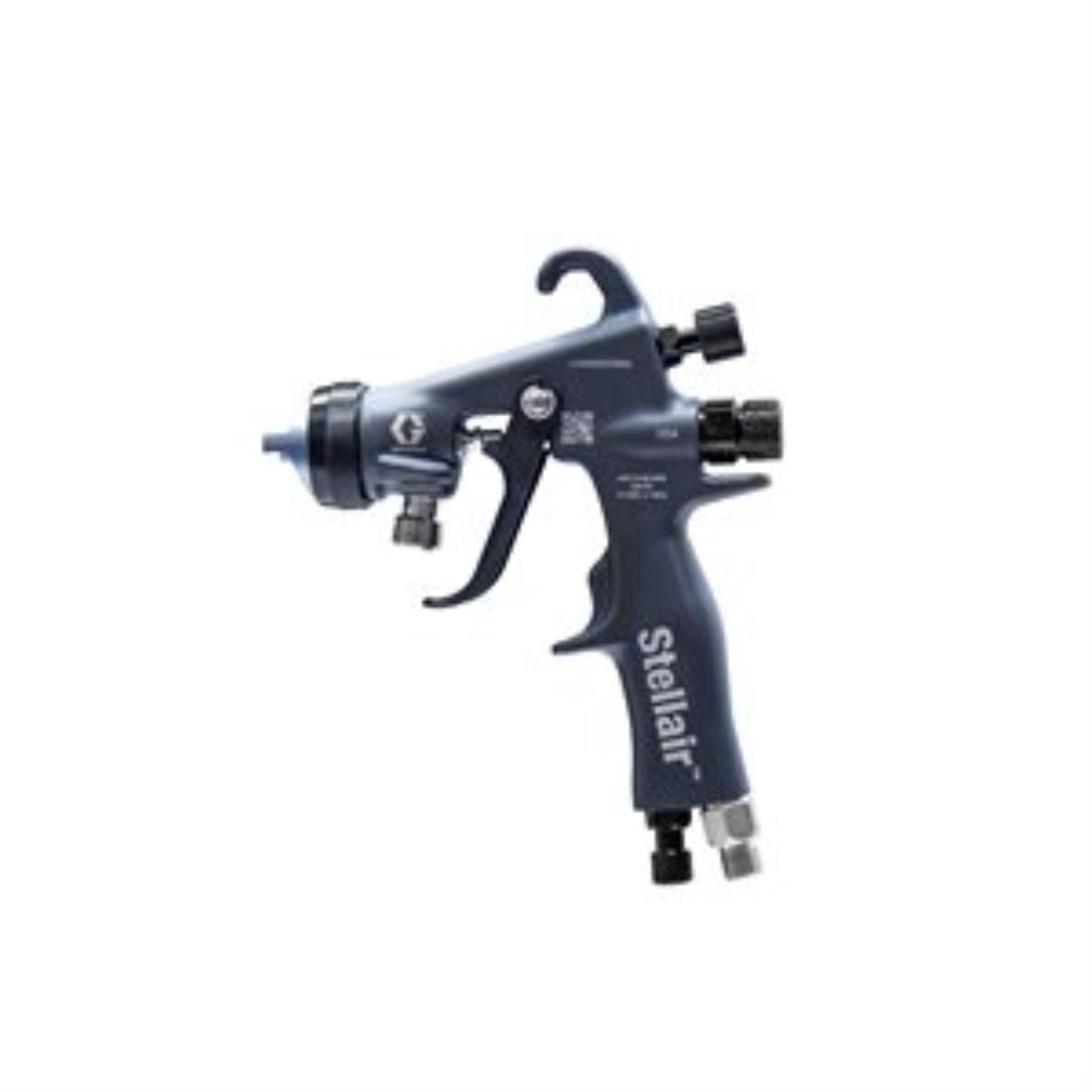

Graco 2004171 Stellair Air Spray Gun, Compliant, 0.070 in (1.8 mm), High Solids, High Wear Tip
Pressure feed air spray gun delivers the all-star ergonomics, performance, and serviceability industrial painters need to produce stellar results.
Application: High wear packing, carbide needle and carbide nozzle tip are strengthened to effectively apply abrasive materials.
- Compliant air spray reduces bounce back and overspray, while delivering high finish quality and transfer efficiency.
- High solids air cap maintains high throughput while spraying ultra violet (UV) coatings and abrasive materials.
- High wear ceramic tip withstands abrasive material, increasing uptime between service intervals.
- Ergonomically designed spray gun body, handle and finger rests comfortably fit in any painter's hand.
- Quick release trigger and quick connect retaining ring mean tool-free maintenance and service.
- Direct stainless steel fluid path means little solvent is needed to flush the gun, reducing VOC (volatile organic compound) emissions.
- Model: Stellair
- Series: Manual
- Product Type: Spray Gun
- Spray Type: Air Spray
- Technology Type: Compliant
- Trigger Lock: Non-Locking
- Trigger Type: Two-Finger
- Air Inlet Size (in): 1/4
- Air Inlet Size (mm): 6.35
- Air Inlet Thread Type: NPSM
- Application: High Solids
- Compatible Material: CARC, Enamel, Epoxies, Fast-Set, High Solids, Latex, Plural Component Materials, Sealants, Solventborne, Urethane, Waterborne
- Feed Type: Pressure Feed
- Fluid Inlet Size (in): 0.375
- Fluid Inlet Size (mm): 9.52
- Fluid Inlet Thread Type: NPSM
- Fluid Orifice Size (in): 0.070
- Fluid Orifice Size (mm): 0.018
- Gun Type: Compliant Gun
- Includes: Air Cap, Needle Assembly, Nozzle
- Maximum Air Pressure (bar): 7
- Maximum Air Pressure (MPa): 0.7
- Maximum Air Pressure (psi): 100
- Maximum Fluid Pressure (bar): 21
- Maximum Fluid Pressure (MPa): 2.1
- Maximum Fluid Pressure (psi): 300
