GUN, COMPLIANT (.059) HIGH WEAR

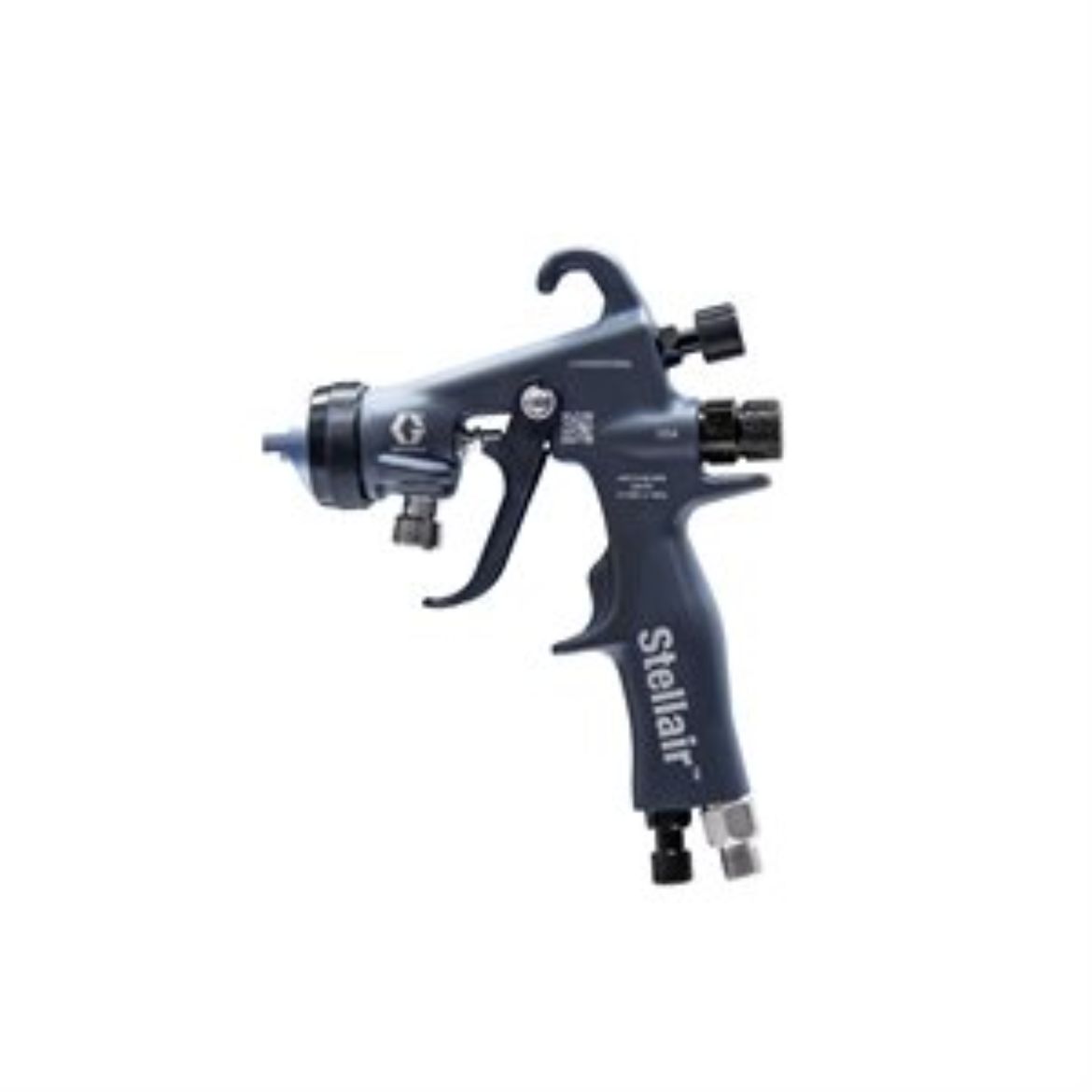

Graco 2006153 Stellair Air Spray Gun, Compliant, 0.059 in (1.5 mm), General Industry
Pressure feed air spray gun delivers the all-star ergonomics, performance, and serviceability industrial painters need to produce stellar results.
Application: Whether you are a custom shop or a high volume manufacturing facility, Stellair brings industry leading finish quality to these and other applications: automotive, metal, plastic, and wood.
- Compliant air spray reduces bounce back and overspray, while delivering high finish quality and transfer efficiency.
- General industry air cap produces a uniform, high quality spray pattern with low atomizing pressure that reduces air cap build-up.
- Swivel and hose move with you at any angle, preventing tripping and injury.
- Quick release trigger and quick connect retaining ring mean tool-free maintenance and service.
- Direct stainless steel fluid path means little solvent is needed to flush the gun, reducing VOC (volatile organic compound) emissions.
- Model: Stellair
- Series: Manual
- Trigger Lock: Non-Locking
- Trigger Type: Two-Finger
- Air Inlet Size (in): 1/4
- Air Inlet Size (mm): 6.35
- Air Inlet Thread Type: NPSM
- Application: General Industry
- Compatible Material: CARC, Enamel, Epoxies, Fast-Set, High Solids, Latex, Plural Component Materials, Sealants, Solventborne, Urethane, Waterborne
- Feed Type: Pressure Feed
- Fluid Inlet Size (in): 0.375
- Fluid Inlet Size (mm): 9.5250000000000004
- Fluid Inlet Thread Type: NPSM
- Fluid Orifice Size (in): 0.059
- Fluid Orifice Size (mm): 1.5
- Gun Type: Compliant Gun
- Includes: High Wear Packing, Carbide Needle Assembly, Carbide Tip Nozzle
- Maximum Air Pressure (bar): 7
- Maximum Air Pressure (MPa): 0.7
- Maximum Air Pressure (psi): 100
- Maximum Fluid Pressure (bar): 21
- Maximum Fluid Pressure (MPa): 2.1
- Maximum Fluid Pressure (psi): 300
