GG 2005974
STELLAIR ACE GUN, COMPLIANT, .042, WITH HOSE

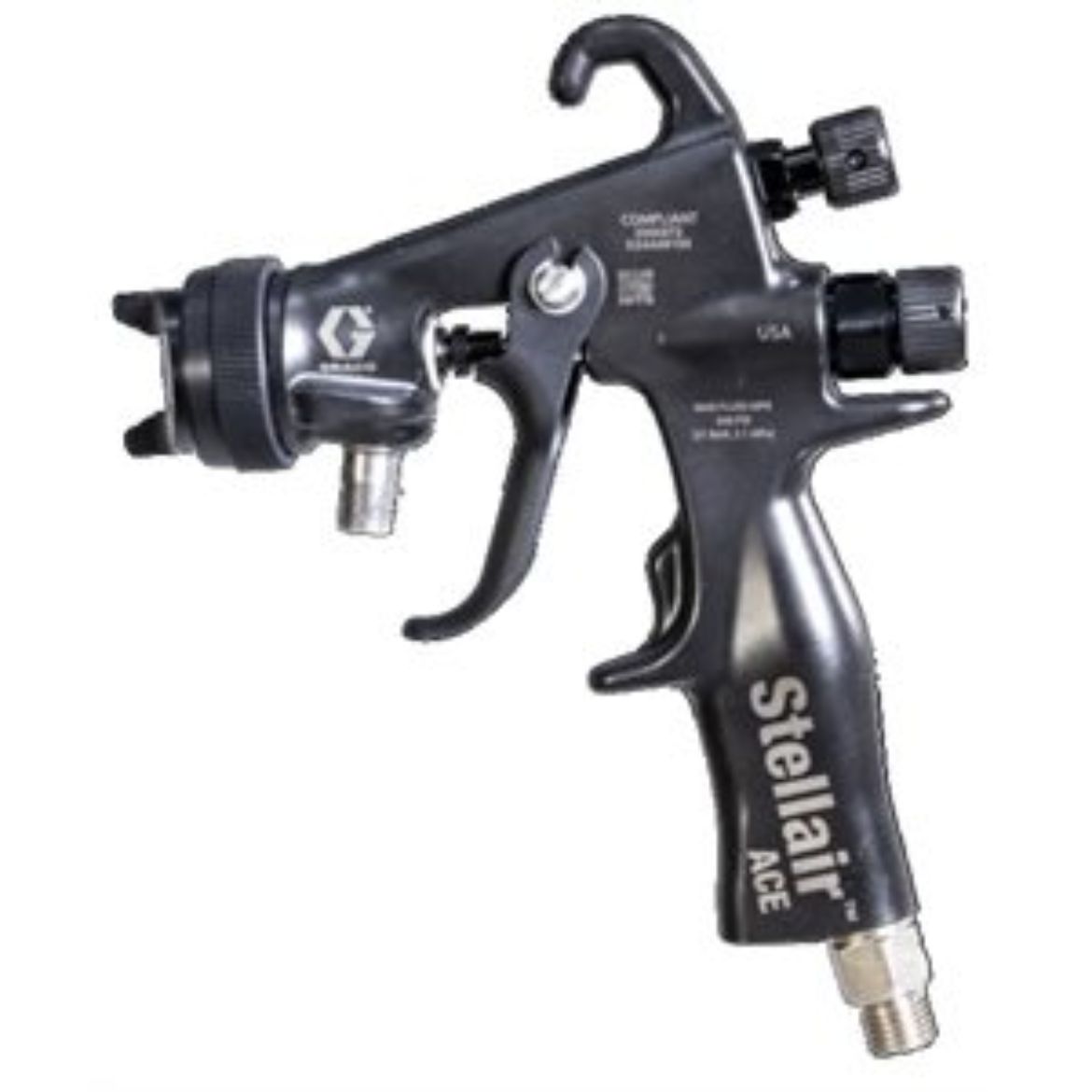

Graco 2005974 Stellair ACE Air Spray Gun with Hose, .042 in (1.1 mm) Nozzle Size
The unique carbon reinforced construction of this pressure feed air spray gun lightens the load for industrial painters. At 209 grams (7.4 ounces), Stellair ACE is up to 50 percent lighter than almost any other manual sprayer.
Application: Whether you're a custom shop or high volume factory, Stellair ACE brings all-star atomization, carbon fiber construction and ergonomics to metal, plastic, and wood finishing.
- Compliant, low volume medium pressure (LVMP) air spray reduces bounce back and overspray, while delivering high finish quality and transfer efficiency.
- High volume low pressure (HVLP) air spray produces a controlled, low velocity spray pattern that reduces bounce back and overspray, while meeting environmental regulations.
- Direct fluid path means little solvent is needed to flush the gun, reducing VOC (volatile organic compound) emissions.
- Even balance, light weight, and easy trigger pull help reduce fatigue and muscle strain.
- Hoses with swivel attachments move with you at any angle, preventing tripping and injury.
- One piece fluid cartridge can be removed and replaced so quickly that it nearly eliminates maintenance related downtime.
- No tools are needed to service or maintain.
- Model: Stellair ACE
- Series: Manual
- Air Inlet Size (in): 1/4
- Air Inlet Size (mm): 6.35
- Air Inlet Thread Type: NPSM
- Application: General Industry
- Applicator Type: Air Spray
- Compatible Material: Enamel, Epoxy, Fast-Set, High Solids, Latex, Plural-Component, Sealants, Solventborne, Urethane, Waterborne
- Fluid Inlet Size (in): 0.125
- Fluid Inlet Size (mm): 3.175
- Fluid Inlet Thread Type: NPSM
- Fluid Orifice Size (in): 0.042
- Fluid Orifice Size (mm): 1.1
- Gun Activation: Manual
- Gun Type: HVLP/LVMP Gun
- Gun Weight (g): 209
- Gun Weight (oz): 7.4
- Hose Package: Includes Hose
- Includes: Air Cap, Needle Assembly, Nozzle, 6 ft air hose, 6 ft fluid hose
- Maximum Air Pressure (bar): 7
- Maximum Air Pressure (MPa): 0.7
- Maximum Air Pressure (psi): 100
- Maximum Fluid Pressure (bar): 21
- Maximum Fluid Pressure (MPa): 2.1
- Maximum Fluid Pressure (psi): 300
- Maximum Fluid Pressure (bar): 21
- Maximum Fluid Pressure (MPa): 2.1
- Maximum Fluid Pressure (psi): 300
- Maximum Operating Temperature (°C): 43
- Maximum Operating Temperature (°F): 109
