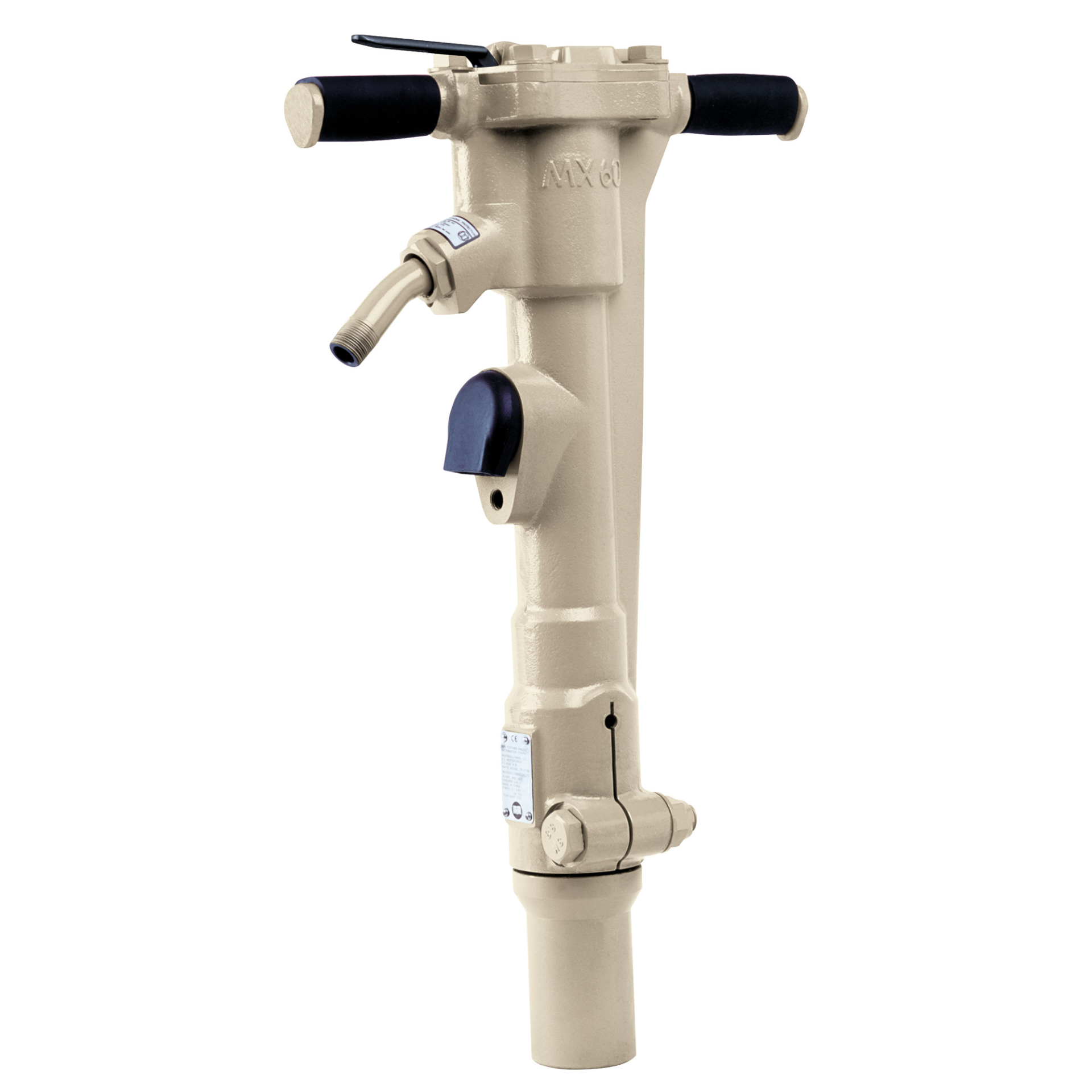

Spike Driver

IR MX60-SD

Spike Driver, 5.75" Stroke, 1250 BPM, 2.06" Bore

Description: The MX60 Series spike drivers deliver more blow energy to each spike than you'll find anywhere else thanks to our Power-Strok piston technology. The drop-in composite valve cartridge prevents rust, while the one-piece breaker housing eliminates the need for side rods and springs.

Features And Benefits:

• Powerful: The MX Series spike drivers are powerful, but still easy to handle.
• Variable Exhaust Deflector: Choose where you want the exhaust air to flow with the MX Series' 360-degree directional exhaust capabilities.
• Durable: The Ingersoll Rand MX Series spike drivers are rugged enough to tackle any job you throw their way.

Product Application and Uses:

The spike driver is designed for driving cut spikes in the construction of new track and the relaying of old track with new rails.

• Actuation/Throttle Type/Switch Type: Outside Trigger
• Air Consumption @ Load (cfm): 70
• Air Consumption @ Load (l/min): 1982
• Air Inlet: 3/4" NPT
• Air Pressure (psi): 90

• Blows per Min: 1250
• Bore Diameter (in): 2.06

• Color: Beige
• Configuration/Handle Type: T-handle

• Exhaust Location: Side - Adjustable

• Housing Material: Steel

• Max Pressure (bar): 6.2
• Min Hose Size (in): 3/4

• Power Source: Air Powered
• Product Length (in): 27.5

• Product Weight (lb): 69

• Stroke Length (in): 5.75

• Warranty: 1-year
