GG 19X115
SOLOTECH ST26 PUMP, I26-HC-CS-PV-A1-A1-0

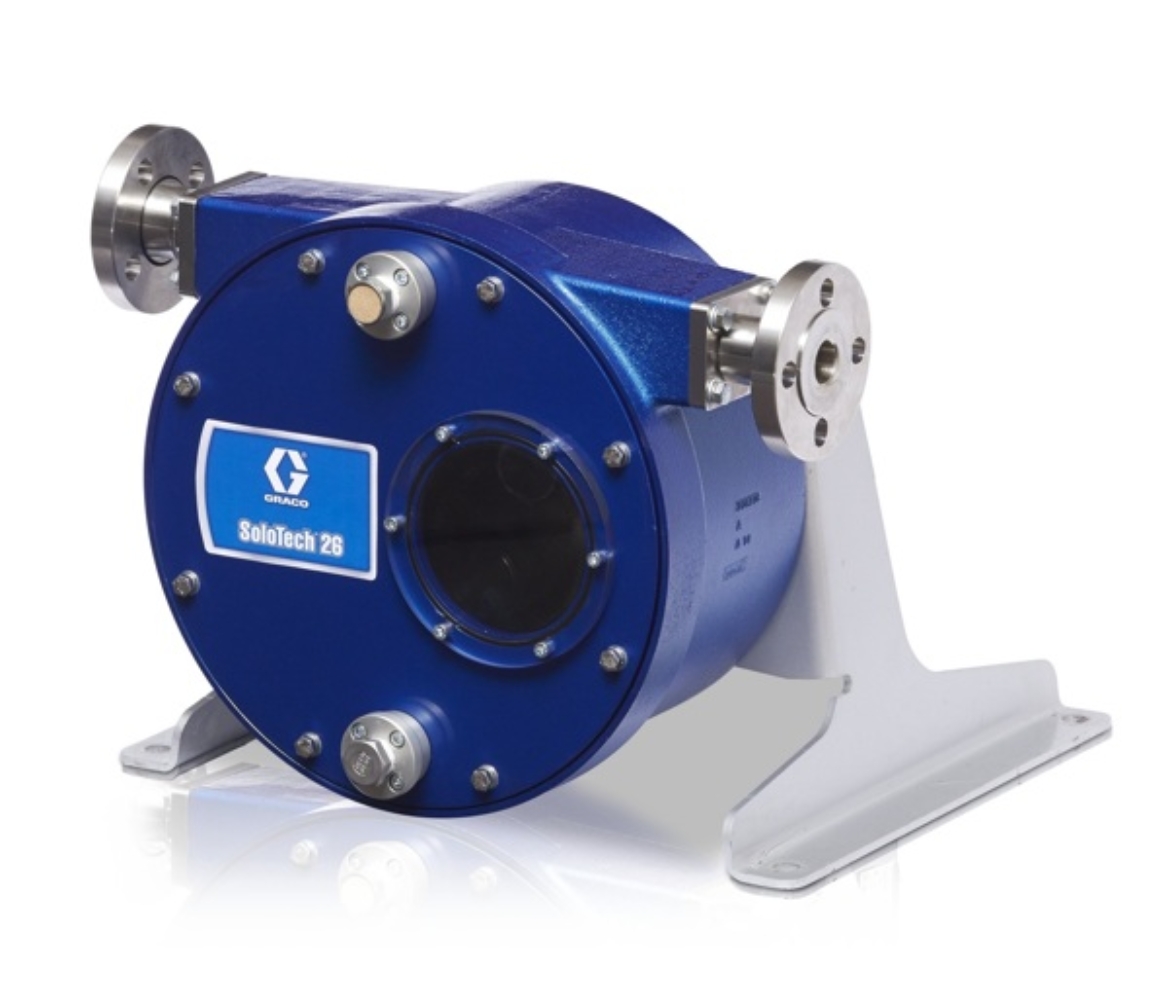

Graco 19X115 SoloTech i26 High Speed Hypalon Peristaltic Hose Pump with CSM Hose, PVDF Barb & IEC Connection
Graco’s SoloTech 23 Hose pump design utilizes a single roller that compresses an engineered hose through a full 360 degrees of rotation. This innovative design means longer hose life when pumping caustic, abrasive or sensitive materials for metering or transfer.
Application: Peristaltic Hose Pumps for Industrial Metering and Transfer
- More flow per revolution than conventional designs
- Inexpensive to maintain - no valves, seals or glands
- Pumps are reversible and can be used to empty lines or clear blockages
- Model: SoloTech
- Series: i26
- Hose Diameter (cm): 2.6
- Hose Diameter (in): 1
- Hose Diameter (mm): 26
- Hose Material: CSM
- Housing Material: Powder Coated Aluminum
- Inlet Size (cm): 2.5
- Inlet Size (in): 1
- Inlet Size (mm): 25
- Inlet Thread Type: Flange
- Maximum Flow Rate (GPM): 9.8
- Maximum Flow Rate (L/min): 37.1
- Maximum Fluid Pressure (bar): 9
- Maximum Fluid Pressure (kPa): 900
- Maximum Fluid Pressure (psi): 125
- Maximum Fluid Pressure (bar): 9
- Maximum Fluid Pressure (kPa): 900
- Maximum Fluid Pressure (psi): 125
- Maximum Storage Temperature (°C): 40
- Maximum Storage Temperature (°F): 104
- Minimum Flow Rate (GPM): 1.7
- Minimum Storage Temperature (°C): -10
- Minimum Storage Temperature (°F): 14
- Motor Type: High Speed, IEC Gearbox Only
- Outlet Size (cm): 2.5
- Outlet Size (in): 1
- Outlet Size (mm): 25
- Overall Height (cm): 42
- Overall Height (in): 16.5
- Overall Height (mm): 419
- Overall Width (cm): 55
- Overall Width (in): 21.7
- Overall Width (mm): 551
