GG 19Z003
SOLOTECH ST10 PUMP, I10-MPM-CS-PV-A1-A1-0

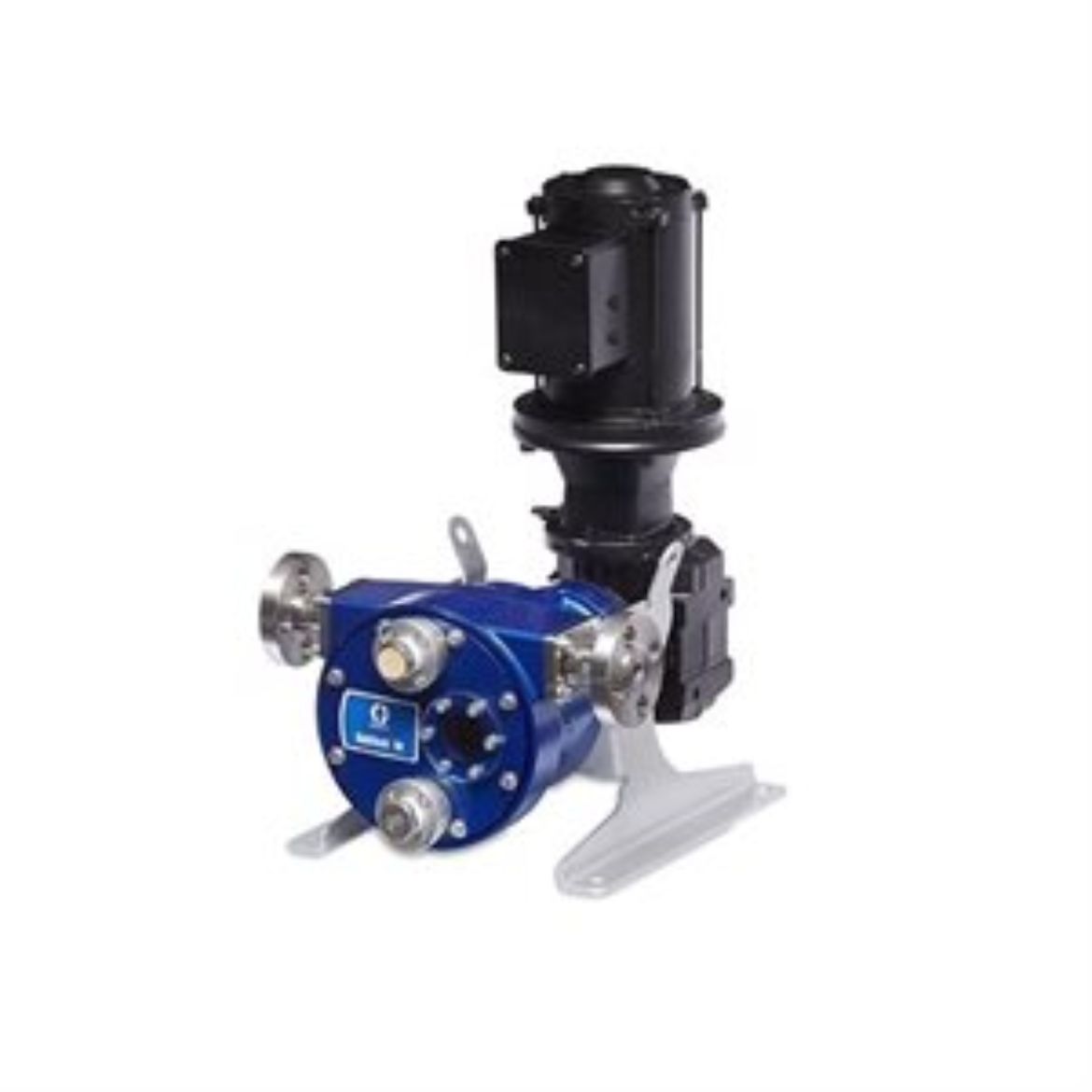

Graco 19Z003 SoloTech i10 Hypalon Peristaltic Hose Pump with CSM Hose, PVDF Barb & BLDC Motor
Graco's SoloTech 10 Hose pump design utilizes a single roller that compresses an engineered hose through a full 360 degrees of rotation. This innovative design means longer hose life when pumping caustic, abrasive or sensitive materials for metering or transfer.
Application: Peristaltic Hose Pumps for Industrial Metering and Transfer
- More flow per revolution than conventional designs
- Inexpensive to maintain - no valves, seals or glands
- Pumps are reversible and can be used to empty lines or clear blockages
- Model: SoloTech
- Series: i10
- Hose Diameter (cm): 1
- Hose Diameter (in): 0.4
- Hose Diameter (mm): 10
- Hose Material: CSM
- Housing Material: Powder Coated Aluminum
- Inlet Size (cm): 0.95
- Inlet Size (in): 3/8
- Inlet Size (mm): 9.5
- Inlet Thread Type: Flange
- Maximum Flow Rate (GPM): 0.67
- Maximum Flow Rate (L/min): 2.5
- Maximum Fluid Pressure (bar): 9
- Maximum Fluid Pressure (kPa): 900
- Maximum Fluid Pressure (psi): 125
- Maximum Fluid Pressure (bar): 9
- Maximum Fluid Pressure (kPa): 900
- Maximum Fluid Pressure (psi): 125
- Maximum Storage Temperature (°C): 40
- Maximum Storage Temperature (°F): 104
- Minimum Flow Rate (GPM): 0.017
- Minimum Storage Temperature (°C): -10
- Minimum Storage Temperature (°F): 14
- Outlet Size (cm): 9
- Outlet Size (in): 3.54
- Outlet Size (mm): 90
- Overall Height (cm): 53
- Overall Height (in): 21
- Overall Height (mm): 533
- Overall Length (cm): 41
- Overall Length (in): 16.3
- Overall Length (mm): 414
- Overall Width (cm): 33
- Overall Width (in): 13
- Overall Width (mm): 330
- Power Rating (HP): 120
- Power Rating (kW): 89.48
- Power Rating (W): 89484
