GG 19Z079
SOLOTECH ST26 PUMP, I26-HAC-EP-PV-A1-A1-0

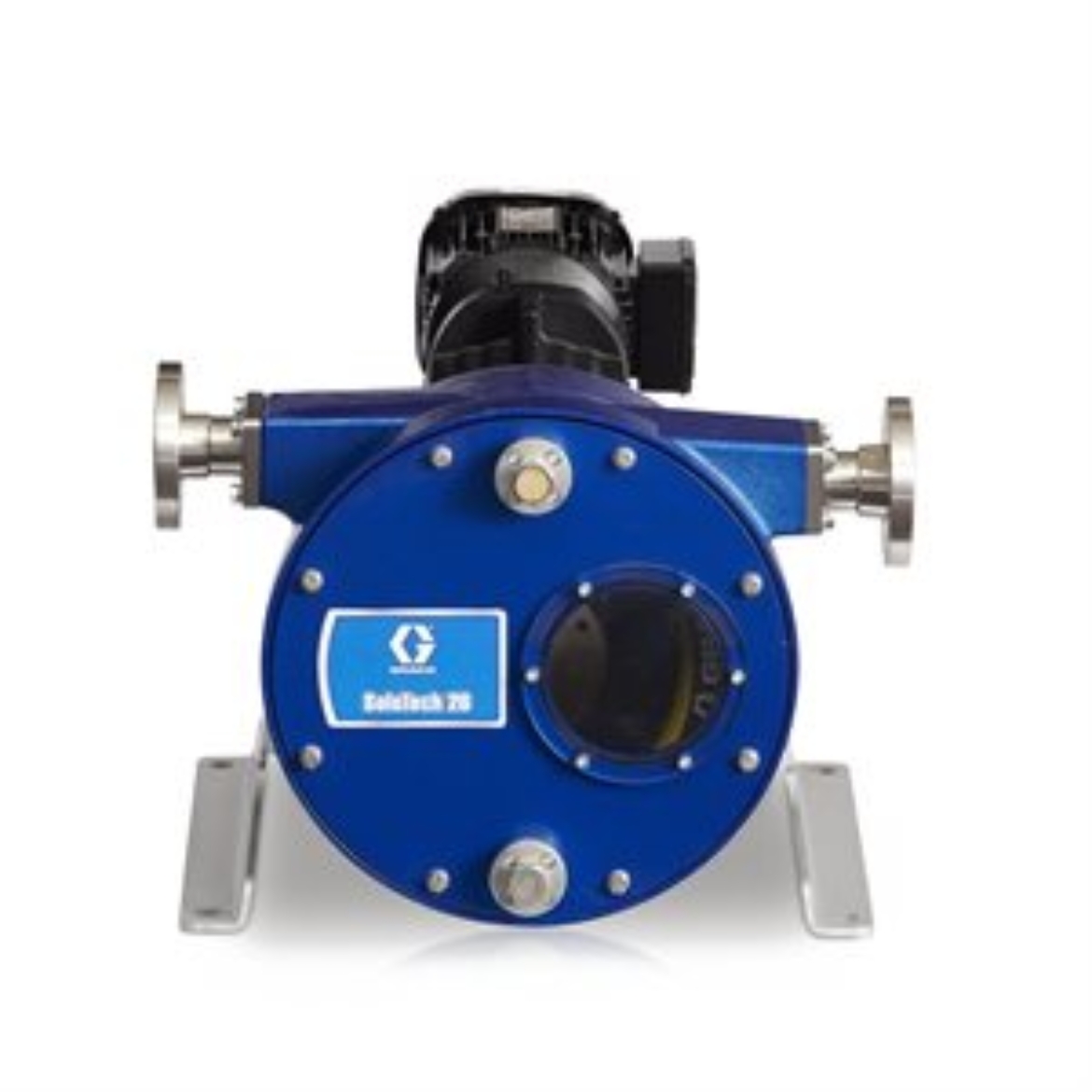

Graco 19Z079 SoloTech i26 High Speed EPDM Peristaltic Hose Pump with EPDM Hose, PVDF Barb
Graco's SoloTech 26 Hose pump design utilizes a single roller that compresses an engineered hose through a full 360 degrees of rotation. This innovative design means longer hose life when pumping caustic, abrasive or sensitive materials for metering or transfer.
Application: Peristaltic Hose Pumps for Industrial Metering and Transfer
- More flow per revolution than conventional designs
- Inexpensive to maintain - no valves, seals or glands
- Pumps are reversible and can be used to empty lines or clear blockages
- Model: SoloTech
- Series: i26
- Hose Diameter (cm): 2.6
- Hose Diameter (in): 1
- Hose Diameter (mm): 26
- Hose Material: EPDM
- Housing Material: Powder Coated Aluminum
- Inlet Size (cm): 2.5
- Inlet Size (in): 1
- Inlet Size (mm): 25
- Inlet Thread Type: Flange
- Maximum Flow Rate (GPM): 9.8
- Maximum Flow Rate (L/min): 37.1
- Maximum Fluid Pressure (bar): 9
- Maximum Fluid Pressure (kPa): 900
- Maximum Fluid Pressure (psi): 125
- Maximum Fluid Pressure (bar): 9
- Maximum Fluid Pressure (kPa): 900
- Maximum Fluid Pressure (psi): 125
- Maximum Storage Temperature ( degree C): 40
- Maximum Storage Temperature ( degree F): 104
- Minimum Flow Rate (GPM): 1.7
- Minimum Storage Temperature ( degree C): -10
- Minimum Storage Temperature ( degree F): 14
- Motor Type: High Speed AC
- Outlet Size (cm): 2.5
- Outlet Size (in): 1
- Outlet Size (mm): 25
- Overall Height (cm): 42
- Overall Height (in): 16.5
- Overall Height (mm): 419
- Overall Length (cm): 92
- Overall Length (in): 36.1
- Overall Length (mm): 917
- Overall Width (cm): 55
- Overall Width (in): 21.7
- Overall Width (mm): 551
- Power Rating (HP): 2
- Power Rating (kW): 1.49
- Power Rating (W): 1491
