Solotech 123 EPDM Peristaltic Hose Pump With EPDM Hose, PVDF Barb & BLDC Motor

GG 19Z037

SOLOTECH ST23 PUMP, I23-MPM-EP-PV-A1-A1-0

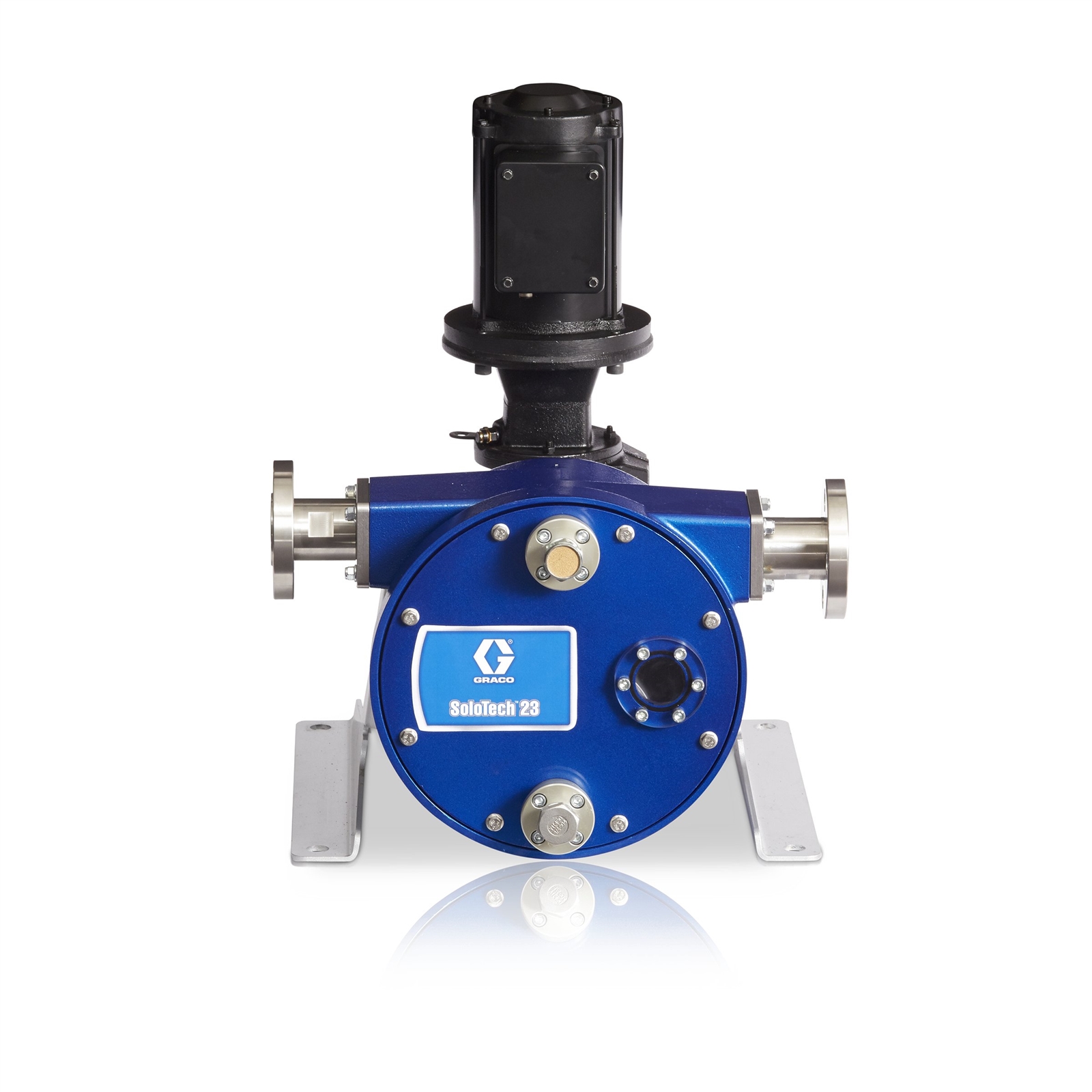

Graco 19Z037 SoloTech i23 EPDM Peristaltic Hose Pump with EPDM Hose, PVDF Barb & BLDC Motor

Graco's SoloTech 23 Hose pump design utilizes a single roller that compresses an engineered hose through a full 360 degrees of rotation. This innovative design means longer hose life when pumping caustic, abrasive or sensitive materials for metering or transfer.

• More flow per revolution than conventional designs
• Inexpensive to maintain - no valves, seals or glands
• Pumps are reversible and can be used to empty lines or clear blockages

• Model: SoloTech
• Series: i23

• Application: Industrial

• Barb Material: PVDF

• Flow Rate (GPM): 4.725

• Gear Ratio: 37.66:1

• Hose Diameter (cm): 2.3
• Hose Diameter (in): 0.91
• Hose Diameter (mm): 23
• Hose Material: EPDM

• Housing Material: Powder Coated Aluminum
• Inlet Size (cm): 2.5
• Inlet Size (in): 1
• Inlet Size (mm): 25

• Inlet Thread Type: Flange

• Maximum Flow Rate (GPM): 4.5
• Maximum Flow Rate (L/min): 17

• Maximum Fluid Pressure (bar): 9
• Maximum Fluid Pressure (kPa): 900
• Maximum Fluid Pressure (psi): 125

• Maximum Fluid Pressure (bar): 9
• Maximum Fluid Pressure (kPa): 900
• Maximum Fluid Pressure (psi): 125

• Maximum Storage Temperature (°C): 40
• Maximum Storage Temperature (°F): 104

• Minimum Flow Rate (GPM): 0.12

• Minimum Storage Temperature (°C): -10
• Minimum Storage Temperature (°F): 14

• Motor Type: Brushless DC

• Outlet Size (cm): 10.8
• Outlet Size (in): 4.25
• Outlet Size (mm): 108

• Overall Height (cm): 58
• Overall Height (in): 22.8
• Overall Height (mm): 579
• Overall Length (cm): 50
• Overall Length (in): 19.8
• Overall Length (mm): 503
• Overall Width (cm): 44
• Overall Width (in): 17.2
• Overall Width (mm): 437

• Power Rating (HP): 800
• Power Rating (kW): 597
• Power Rating (W): 596560

• Pump Speed (RPM): 2-95
