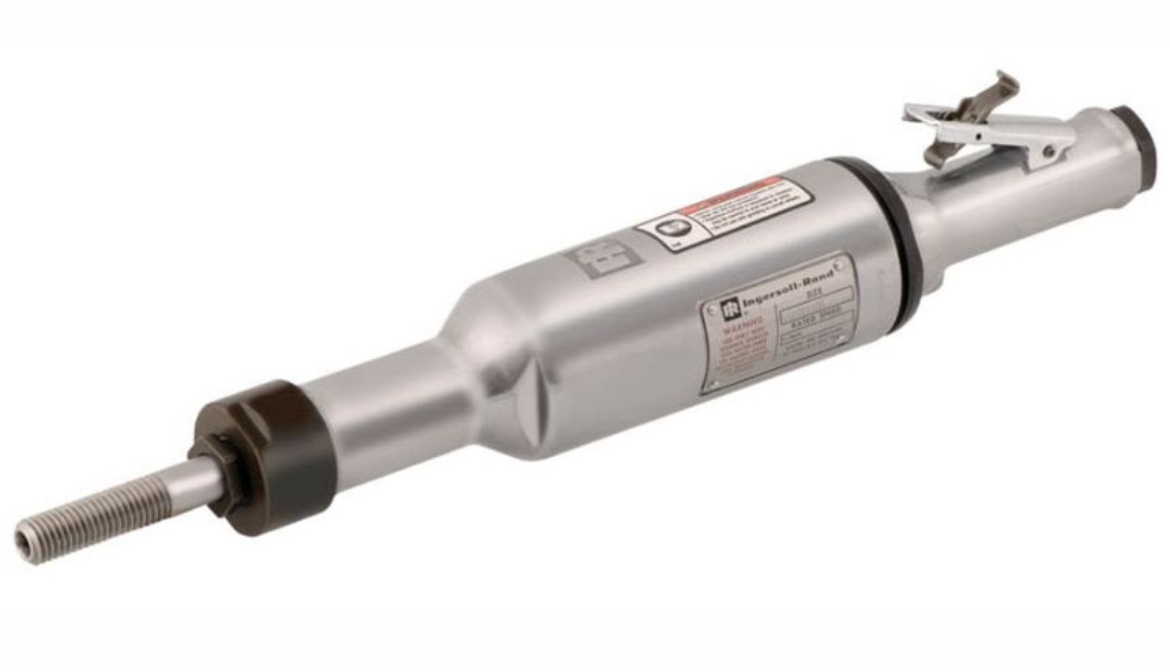

IR 77H30B106
Air Wire Brush Tool, 3000 RPM, 1.5HP, 5/8" - 11 Thread, Side Exhaust
Description: This Pro Series 77H wire brush tool has a patented motor controller, designed to increase productivity while enhancing operator safety.
Features And Benefits:
- Durability: Featuring a solid steel motor, arbor housing, and a heavy duty, double-row ball bearing, this tool is built to have a long life.
- Automatic Lubrication: Built-in mist lubricator that automatically oils the motor whenever the throttle is activated for smooth operation.
- Lock-out Lever: A unique system is incorporated in this tool that prevents accidental throttle operation by resetting the spring-loaded latch each time the lever is released.
Product Application and Uses:
These air grinders are designed for material removal or cutting off using a rotated abrasive wheel.
- Actuation/Throttle Type/Switch Type: Safety Lever
- Air Consumption @ Load (cfm): 29
- Air Consumption @ Load (l/min): 822
- Air Inlet: 3/8" NPT
- Air Pressure (psi): 90
- Bearing Type: Double Row Ball
- Configuration/Handle Type: Straight
- Housing Material: Steel
- Lock Mechanism: Lever lock in off position
- Max Free Speed (rpm): 3000
- Max Pressure (bar): 6.2
- Min Hose Size (in): 1/2
- Mounting Type: Arbor
- Power Source: Air Powered
- Product Length (in): 17.69
- Product Weight (lb): 7.3
- Rated Power (hp): 1.5
- Sound Pressure/Power Db(A): 85.2 / 98.2
- Vibration Level (m/s2): 5.9
- Vibration Uncertainy K* (m/s2): 2.1
- Warranty: 1-year
- Wheel Type: Wire Brush
