GG SDH55B
SDX SERIES 20 REEL, HOSE

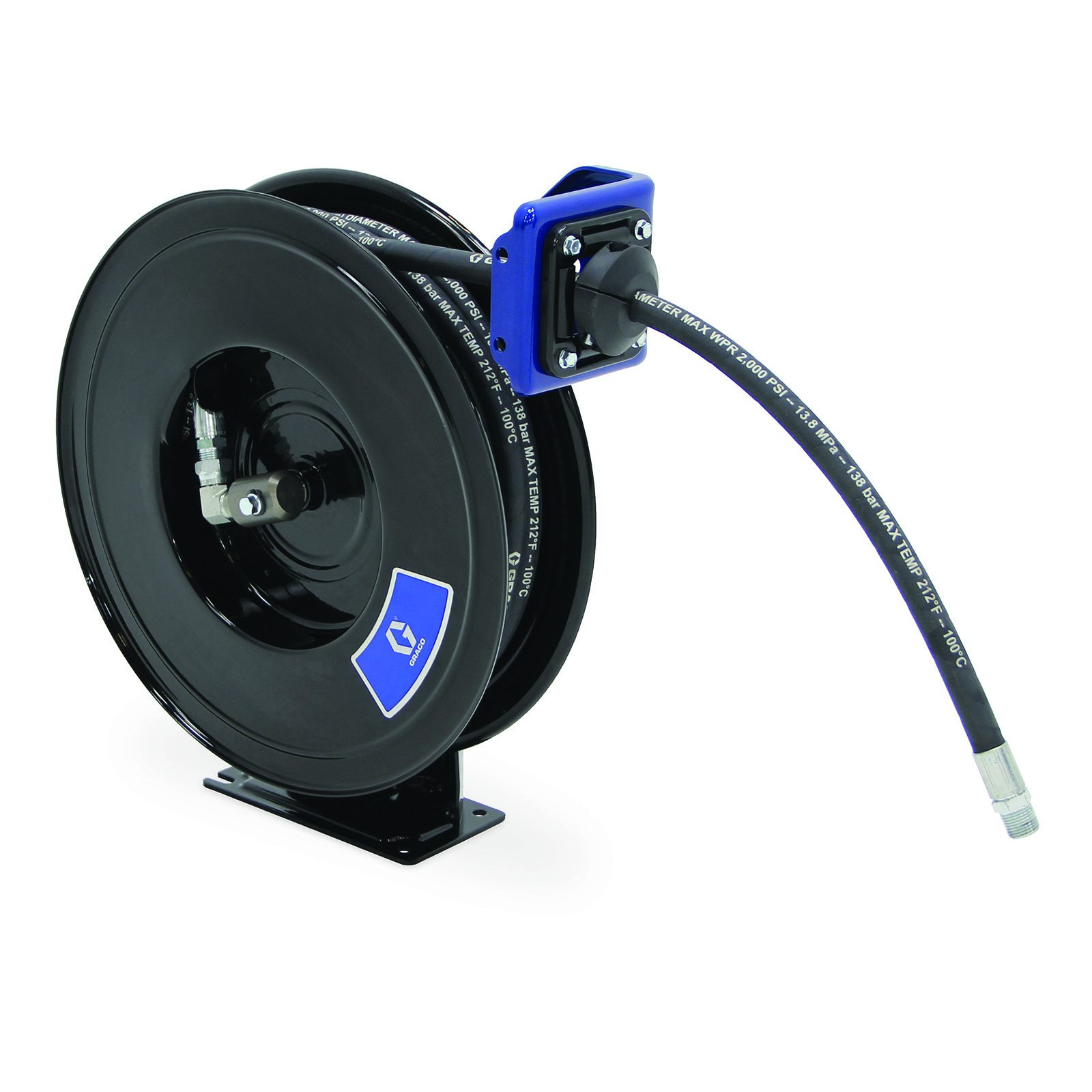

Graco SDH55B SDX 20, Grease, 3/8 in (10 mm) Inlet, 3/8 in X 50 ft (10 mm X 15 m) Hose, NPT, Overhead Mount, Metallic Blue
Choose Graco's flagship SDX hose reels for high-quality performance and versatility. Built using specially crafted components, including a rigid metal frame and low-friction swivels, it's available in five colors
Application: With its durable metal spool and rigid pedestal frame, the compact SDX Series is ideal for indoor and limited outdoor use in car dealerships, fleet maintenance, public works garages and light-utility service trucks.
- Low-Friction Cartridge Swivel - Provides smooth reel performance with an easy-to-replace swivel cartridge, simplifying repairs.
- Full-Flow Swivel - Maximize material flow with minimal pressure drop for faster fills to get more vehicles through your shop
- Adjustable Arm - Easily change the arm position for your application
- Durable Finish - Baked-on enamel finish protects reel from corrosion
- Frame Type: Single Pedestal
- Hose Inside Diameter (in): 3/8
- Hose Inside Diameter (mm): 9.525
- Hose Length (ft): 50
- Hose Length (m): 15
- Hose Reel Type: Reel with Hose
- Includes Hose: Yes
- Inlet Size (in): 3/8
- Inlet Size (mm): 9.525
- Inlet Thread Gender: Male
- Inlet Thread Type: NPSM
- Maximum Temperature (°C): 93
- Maximum Temperature (°F): 200
- Maximum Working Pressure (psi): 4800
- Minimum Temperature (°C): -40
- Minimum Temperature (°F): -40
- Mount Location: Overhead Mount
- Outlet Size (in): 1/4
- Outlet Size (mm): 6.35
- Outlet Thread Gender: Male
- Outlet Thread Type: NPT
- Overall Height (in): 21.8
- Overall Height (mm): 554
- Overall Length (in): 19.2
- Overall Length (mm): 487
- Overall Width (in): 7
- Overall Width (mm): 177
- Recommended Environment: Indoor, Limited Outdoor
- Recommended Fluid Type: Grease
