Scaler - Grip Throttle

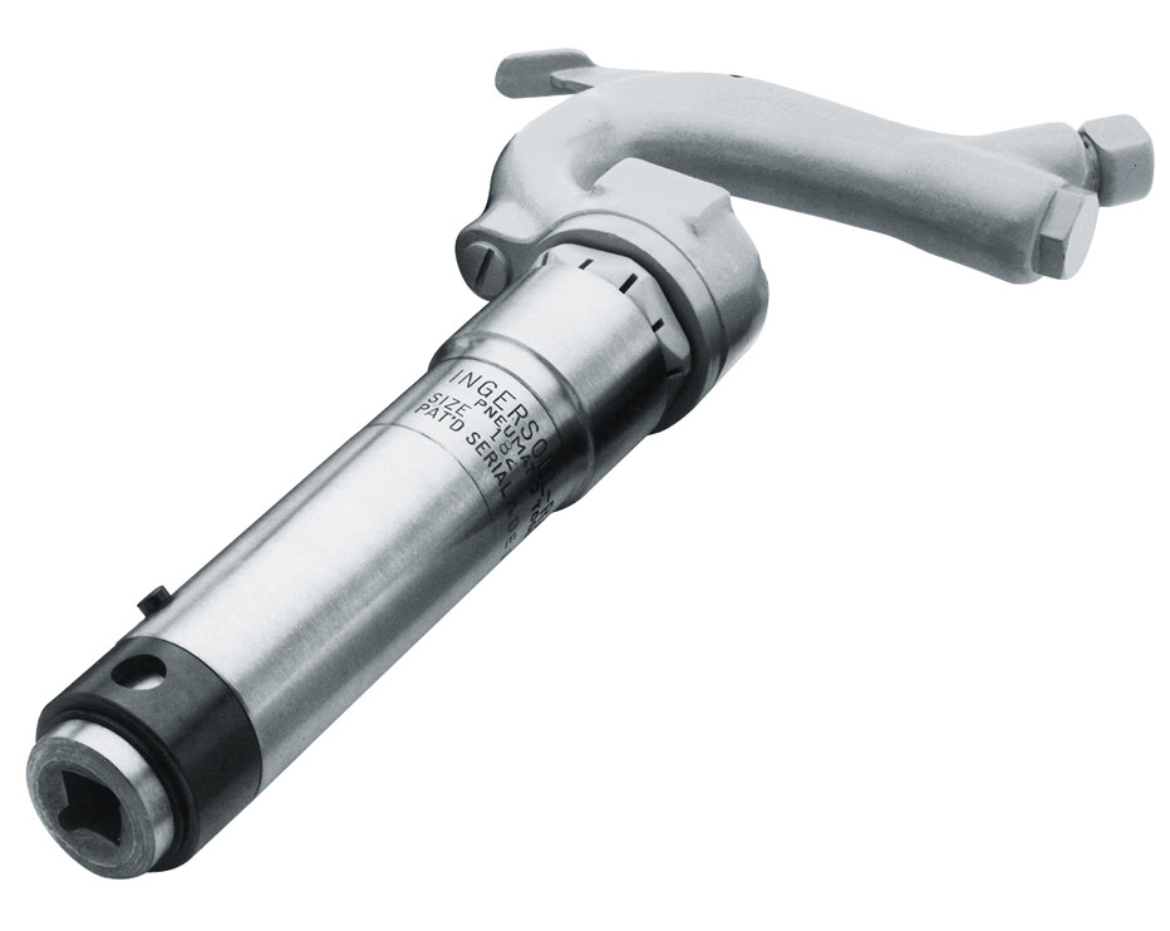

IR 182G

Air Chisel Scaler, 4000 BPM, 1-1/16" Stroke

Description: With 4,000 blows-per-minute and a 1-1/16 inch stroke, the 182G is our most powerful and durable chisel scaler. The 'swan' neck grip option adds an extra level of comfort for both vertical and horizontal operation.

Features And Benefits:

• Easy Adjustment: The adjustable bayonet-type needle housing lock allows for easy adjustment without special tools.
• Durability: These scalers feature a rubber faced throttle valve to ensure positive sealing of internal components, and they're durable enough to withstand repeated drops and harsh conditions with ease.
• Power: With 4,000 blows-per-minute and a 1-1/16 inch stroke, the 182G is our most powerful and durable chisel scaler.
• Comfort: Compact, well balanced and low vibration maximize operators comfort.

Product Application and Uses:

Designed for removal of unwanted deposits from metal and other hardened materials through repetitive application of linear impacts of a tool steel that is retained and driven by the scaler. Such deposits include weld splatter, paint, coatings and other surface materials.

• Actuation/Throttle Type/Switch Type: Outside Trigger
• Air Consumption @ Load (cfm): 13
• Air Consumption @ Load (l/min): 368
• Air Inlet: 1/4" NPT
• Air Pressure (psi): 90

• Blows per Min: 4000
• Bore Diameter (in): .94

• Color: Silver
• Configuration/Handle Type: Swan Neck

• Max Pressure (bar): 6.2
• Min Hose Size (in): 5/16

• Power Source: Air Powered
• Product Length (in): 12.8

• Product Weight (lb): 5.3

• Shank SIze (in): .5
• Shank Type: Ingersoll Rand Shank

• Sound Pressure/Power Db(A): 107.2 / 118.2
• Stroke Length (in): 1.06

• Vibration Level (m/s2): 8.5
• Vibration Uncertainy K* (m/s2): 1.2
• Warranty: 1-year

• Accessories: WF-14-12
• Accessories: WF-14A-007
• Accessories: WF-14B-007
• Accessories: WF-14B-012
• Accessories: WF-14C-007
• Accessories: WF-14C-012
• Accessories: WF-14C-018
• Accessories: WF-14D-007
• Accessories: WF-14D-012
• Accessories: WF-14D-018
• Accessories: WF-14F-12
• Accessories: WF-14F-18
• Accessories: WF-14F-7
