Scaler

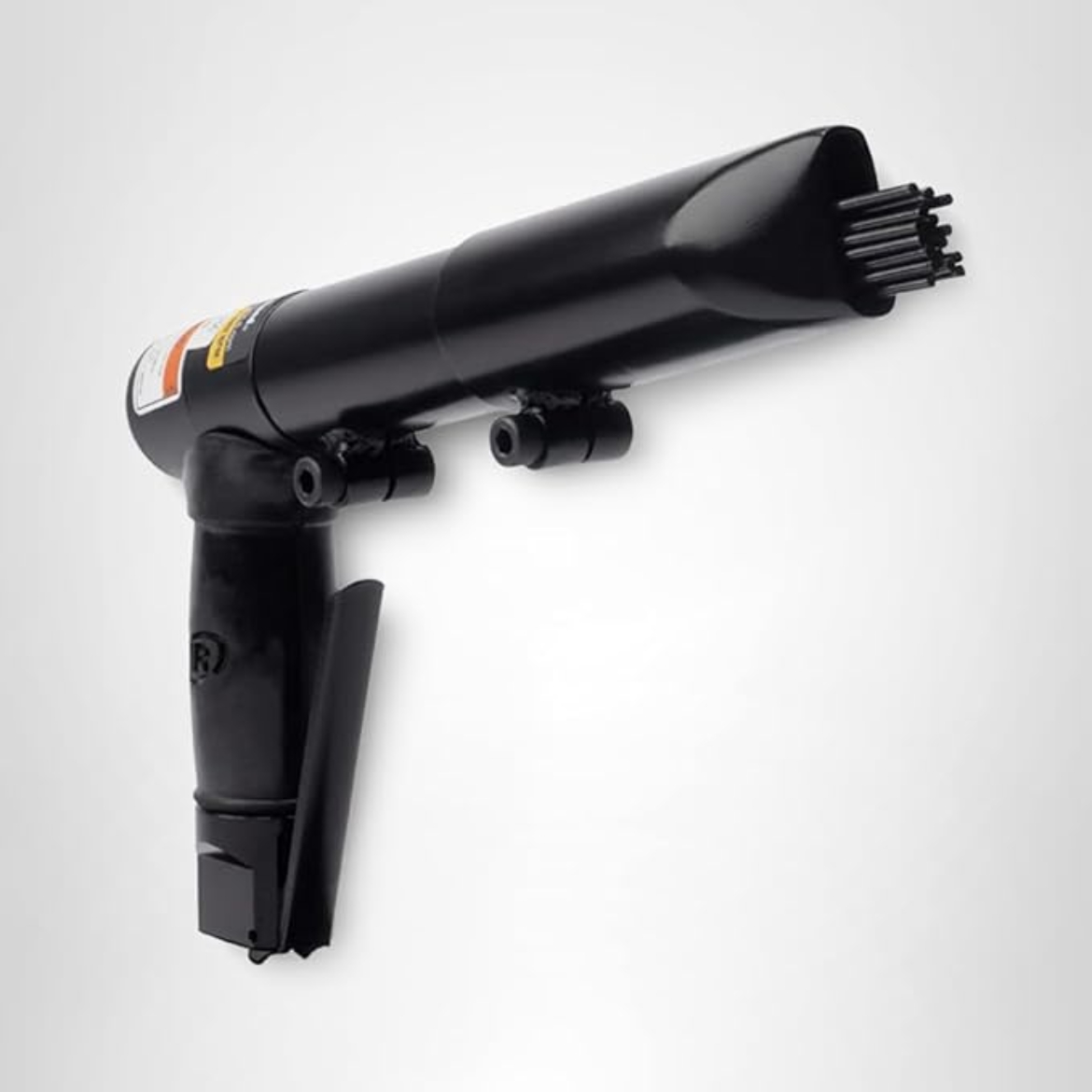

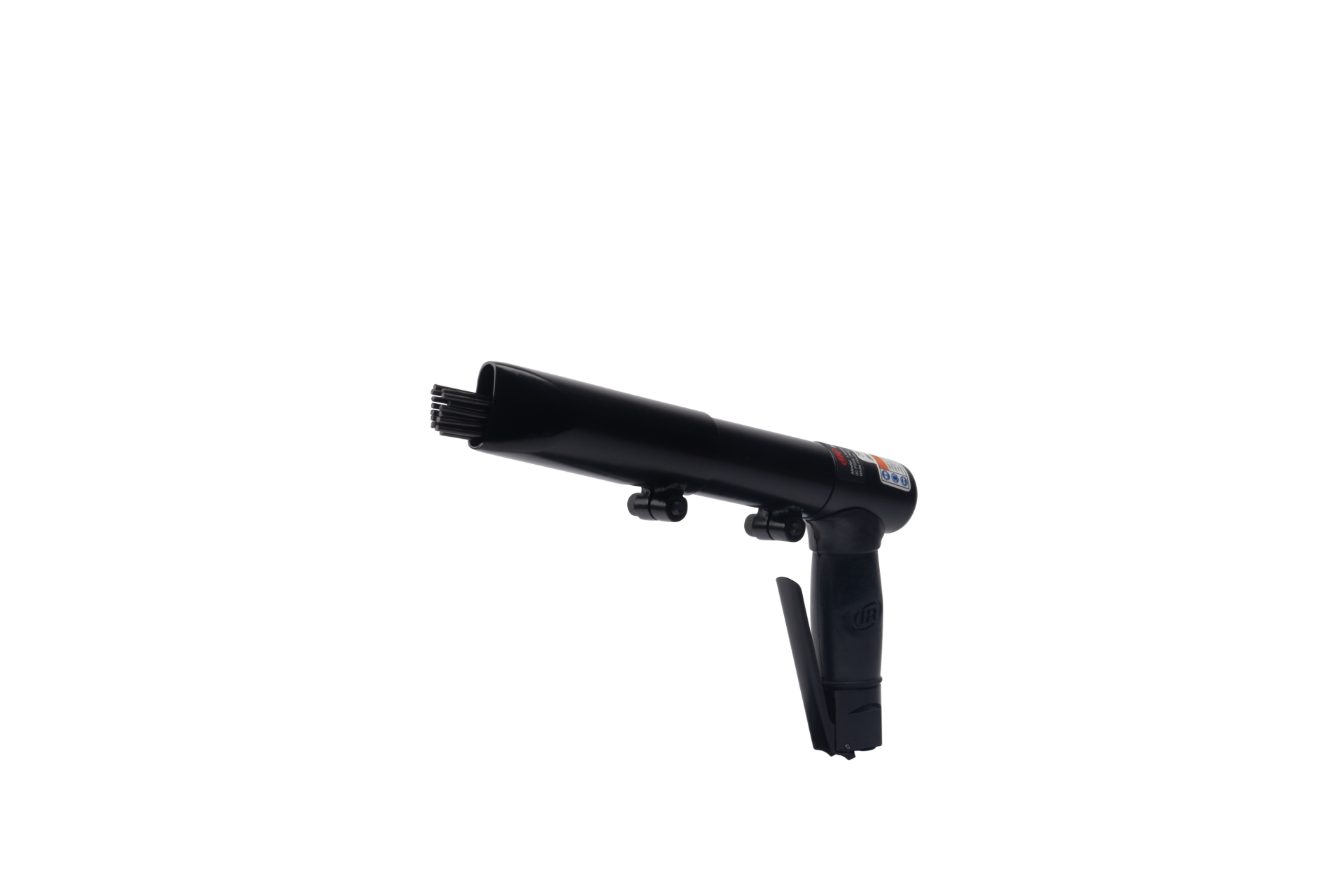

IR 170PG

Air Needle Scaler, 3000 BPM, 1.4" Stroke

Description: This pistol grip needle scaler is designed with both power and ergonomics in mind. With a rubber over mold grip for maximum comfort, you can use this tool for hours with minimal fatigue.

Features And Benefits:

• Comfort: Ergonomic handle and low vibration provides operator comfort.
• Power: 3,000 blows per minute maximize material removal.

Product Application and Uses:

Designed for removing weld splatter or other unwanted surface deposits from metal

• Includes: Tool, (19) flat tip 7" (3mm) carbon steel needles
• Actuation/Throttle Type/Switch Type: Lever
• Air Consumption @ Load (cfm): 5.5
• Air Consumption @ Load (l/min): 15.6
• Air Inlet: 1/4" NPT
• Air Pressure (psi): 90

• Blows per Min: 3000
• Bore Diameter (in): 0.93

• Color: Black
• Configuration/Handle Type: Pistol Grip
• Duty Rating: Industrial Duty

• Lock Mechanism: Bayonet Needle

• Max Pressure (bar): 6.2
• Min Hose Size (in): 5/16
• Needle Length: 7"
• Needle Qty: 19

• Power Source: Air Powered
• Product Length (in): 12.4

• Product Weight (lb): 6.6

• Shank SIze (in): .5
• Shank Type: Ingersoll Rand Shank

• Standards/Certifications: Vibration : ISO 28927-9:2009Sound : ISO 15744:2008Safety : ISO 11148-4:2012
• Stroke Length (in): 1.4

• Warranty: 1-year

• Accessories: NS11-122-19

• Lubrication: 10P
• Parts: 22038194
