SANIFORCE AODD PUMP, 3250HS.PPP1ASSASSPTPSEP21

GG SP3B.0012

SANIFORCE AODD PUMP, 3250HS.PPP1ASSASSPTPSEP21

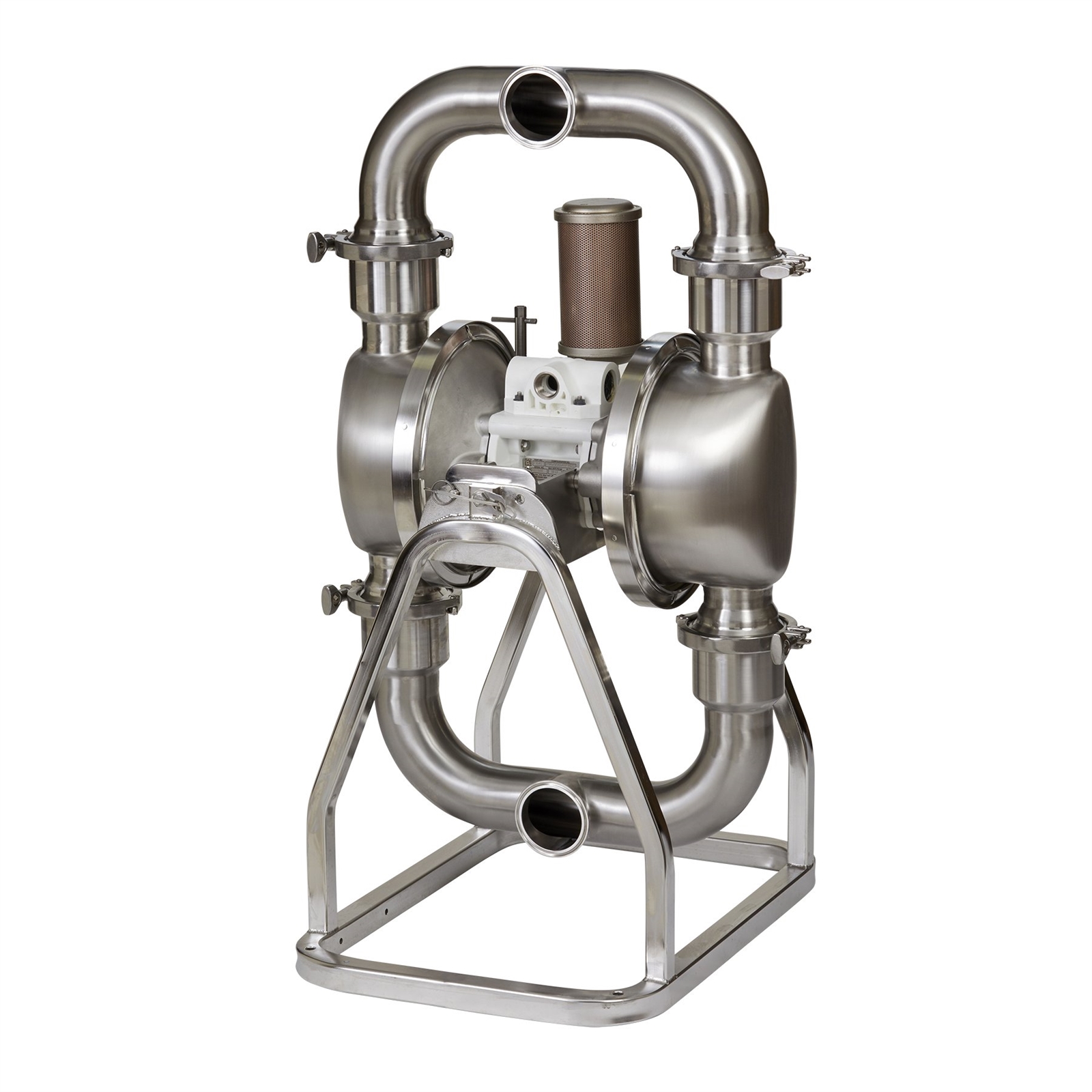

SaniForce 3250, 3" HS SST Pneumatic Diaphragm Pump, Poly Center, SS Seats, PT Balls, PS Diaphragms Graco's SaniForce 3250, 3-inch air-operated double diaphragm (AODD) pump provides a hygienic solution for customers needing to pump flow rates up to 230 gpm. It offers a quick knock-down design for easy cleaning and a low cost of ownership. Ideal for food processing and personal care markets. Common applications include high volume evacuation of liquid concentrates from holding vessels or repackaging of fluids from the original container to smaller receptacles. Suitable to pump products like flavorings, purees, sauces and other low to medium viscosity materials. 3 inch sanitary pump with flow rates up to 230 gpm (870 lpm) and pressures up to 100 psi (6.9 bar) Seal-less diaphragm pump design eliminates leaking and failures due to run-dry pump conditions Graco double diaphragm pumps stall under pressure preventing pump failures from clogged lines or closed valves Externally serviceable air valves deliver leading efficiency and reduce downtime. Equipped with inlet and outlet tri-clamp connections, offering a quick knockdown design for easy cleanability and a swift maintenance process Optional leak sensors notify users when processes may be compromised 316L stainless steel wetted section All fluid contact materials are FDA-Compliant and meet the United States Code of Federal Regulations (CFR) Title 21 Pass solids up to 0.75 in. (19 mm) Single piece manifolds reduce tri-clamps and gaskets creating a cleaner fluid path and design
