SANIFORCE AODD PUMP, 1040FG-PA01AS14SSPTPTPT21

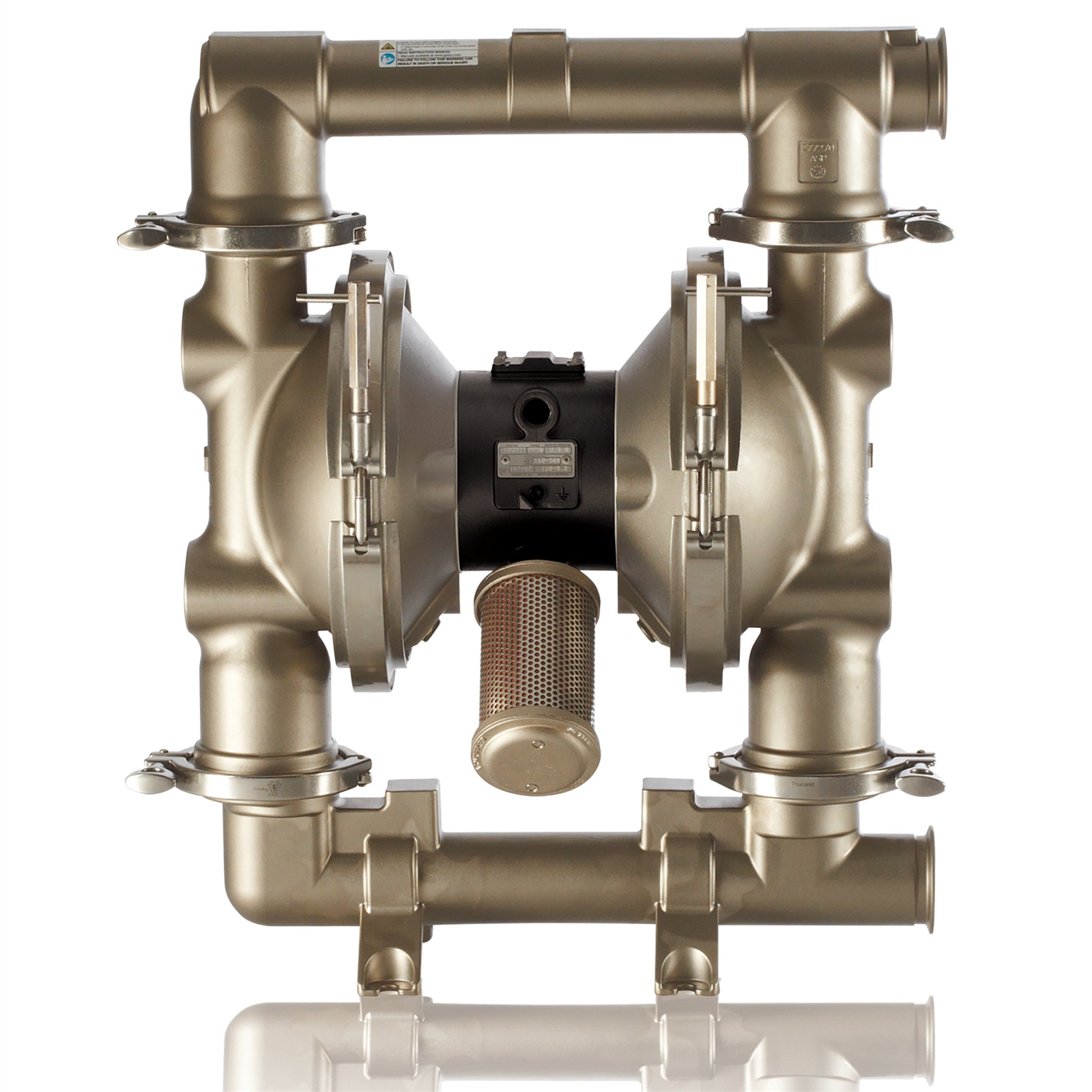

SaniForce 1040, 1" FG SST Pneumatic Diaphragm Pump, AL Center, SS Seats, PT Balls, PT Diaphragms Graco's SaniForce 1040, 1-inch air-operated double diaphragm (AODD) pump provides a hygienic solution for customers needing to pump flow rates up to 41 gpm. It offers a quick knock-down design for easy cleaning and a low cost of ownership. Ideal for food processing and personal care markets. Common applications include high volume evacuation of liquid concentrates from holding vessels or repackaging of fluids from the original container to smaller receptacles. Suitable to pump products like flavorings, purees, sauces and other low to medium viscosity materials. 1 inch sanitary pump with flow rates up to 41 gpm (155 lpm) and pressures up to 120 psi (8 bar) Seal-less diaphragm pump design eliminates leaking and failures due to run-dry pump conditions Graco double diaphragm pumps stall under pressure preventing pump failures from clogged lines or closed valves Externally serviceable air valves deliver leading efficiency and reduce downtime. Features DIN inlet and outlet connections 316 stainless steel wetted section All fluid contact materials are FDA-Compliant and meet the United States Code of Federal Regulations (CFR) Title 21 Pass solids up to 0.125 in. (3.2 mm)
