GG FD3111
SANIFORCE AODD PUMP, 2150FG-PS01AS13SSPTPTPT21

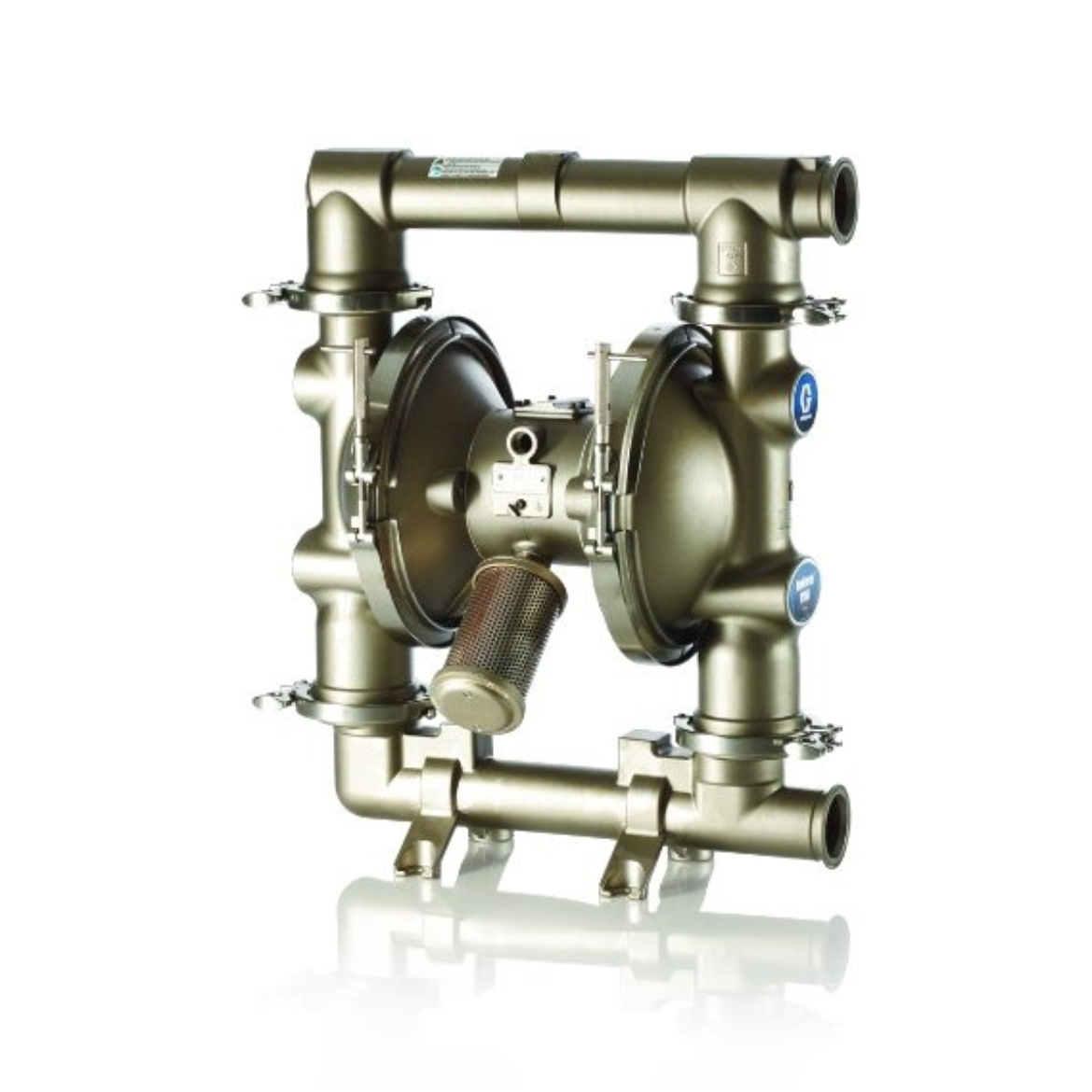

Graco FD3111 SaniForce 2150, 2" FG SST Pneumatic Diaphragm Pump, SS Center, SS Seats, PT Balls, PT Diaphragms
Graco's SaniForce 2150, 2-inch air-operated double diaphragm (AODD) pump provides a hygienic solution for customers needing to pump flow rates up to 160 gpm. It offers a quick knock-down design for easy cleaning and a low cost of ownership.
Application: Ideal for food processing and personal care markets. Common applications include high volume evacuation of liquid concentrates from holding vessels or repackaging of fluids from the original container to smaller receptacles. Suitable to pump products like flavorings, purees, sauces and other low to medium viscosity materials.
- 2 inch sanitary pump with flow rates up to 160 gpm (568 lpm) and pressures up to 120 psi (8 bar)
- Seal-less diaphragm pump design eliminates leaking and failures due to run-dry pump conditions
- Graco double diaphragm pumps stall under pressure preventing pump failures from clogged lines or closed valves
- Equipped with inlet and outlet tri-clamp connections, offering a quick knockdown design for easy cleanability and a swift maintenance process
- 316 stainless steel wetted section
- All fluid contact materials are FDA-Compliant and meet the United States Code of Federal Regulations (CFR) Title 21
- Pass solids up to 0.25 in. (6.3 mm)
- Model: SaniForce
- Series: 2150 FG
- Air Exhaust Port Size (in): 3/4
- Air Exhaust Port Thread Gender: Female
- Air Exhaust Port Thread Type: NPT
- Air Inlet Size (in): 1/2
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPT
- Center Section Material: Stainless Steel
- Compatible Material: Edible Oil, Food and Personal Care
- Compressor Required: Yes
- Connection Type: Tri-Clamp
- Diaphragm Material: PTFE/Santoprene 2-Piece
- Fluid Section Material: 316 Stainless Steel
- For Use With: Food and Personal Care
- Hazardous Location Approval: ATEX, IECEx
- Manifold Configuration: End Port
- Manifold O-Ring Material: PTFE
- Material: Stainless Steel
- Material Certification: EN 1024:2004 Type 2.1 (Standard)
- Maximum Air Consumption (SCFM): 175
- Maximum Air Pressure (bar): 8
- Maximum Air Pressure (kPa): 800
- Maximum Air Pressure (MPa): 0.8
- Maximum Air Pressure (psi): 120
- Maximum Cycle Rate (CPM): 165
- Maximum Flow Rate (GPM): 160
- Maximum Flow Rate (L/min): 568
- Maximum Fluid Operating Temperature (°C): 104
- Maximum Fluid Operating Temperature (°F): 220
- Maximum Fluid Pressure (bar): 8
- Maximum Fluid Pressure (kPa): 800
- Maximum Fluid Pressure (MPa): 0.8
- Maximum Fluid Pressure (psi): 120
- Maximum Fluid Operating Temperature (°C): 104
- Maximum Fluid Operating Temperature (°F): 220
- Maximum Fluid Pressure (bar): 8
- Maximum Fluid Pressure (kPa): 800
- Maximum Fluid Pressure (MPa): 0.8
- Maximum Fluid Pressure (psi): 120
- Maximum Solid Size (cm): 0.63
- Maximum Solid Size (in): 0.25
- Maximum Solid Size (mm): 6.3
- Minimum Fluid Operating Temperature (°C): -40
- Minimum Fluid Operating Temperature (°F): -40
