Sanders, Polishers, Buffers

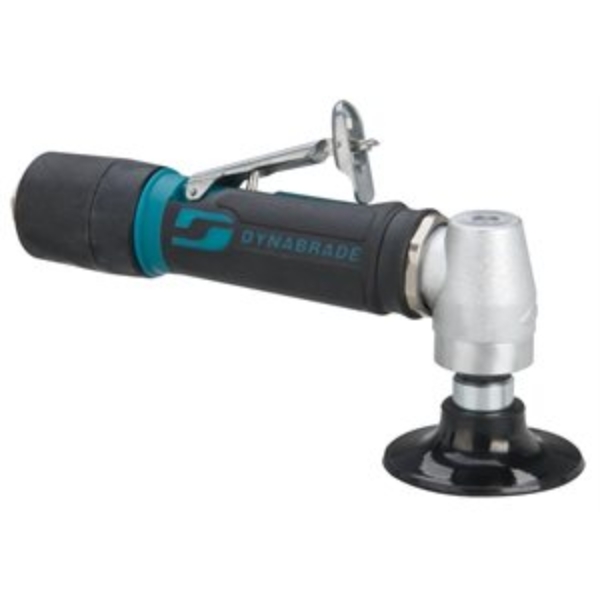

DY 48532

3in (76 mm) Diameter Right Angle Disc Sander

.4 hp, 20,000 RPM, Geared, Extended Rear Exhaust, Locking-Type Female Pad

Includes 51346 Locking-Type Pad (3in diameter).

Extended muffler design.

• HP: 0.4
• Max. RPM: 20000.0
• Motor RPM: 20,000

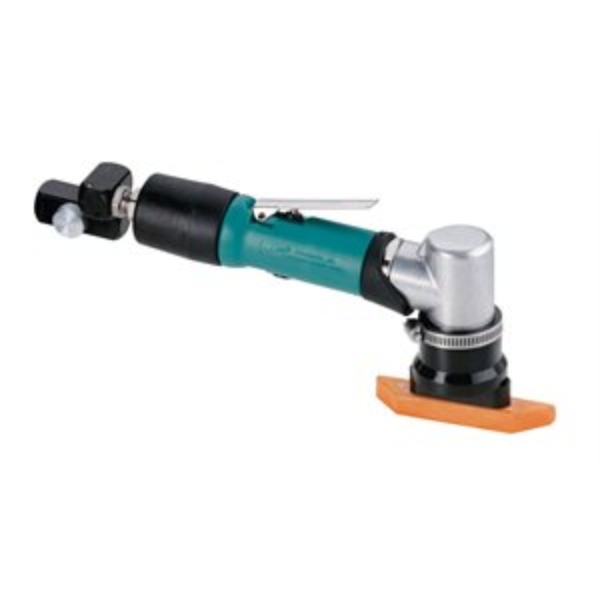

DY 57906

Dynafine Raised Panel Detail Sander

.12 hp, 7 Degree Offset, 13,000 RPM, 1/32in (1 mm) Diameter Orbit, Rear Exhaust

57906 Dynafine comes mounted with 57956 Raised Panel Pad, which offers unique angled edges for sanding in tight corners and on raised panel edges. Raised Panel Pad is 4in long x 3/4in wide, made of 1/2in thick premium urethane, medium density. Pad accepts both coated abrasive and non-woven nylon sheets.

Excellent for sanding raised panels and linear profiles. Also ideal for use on furniture, shutters, moldings and more.

• HP: 0.12
• Max. RPM: 13000.0
• Motor RPM: 13,000

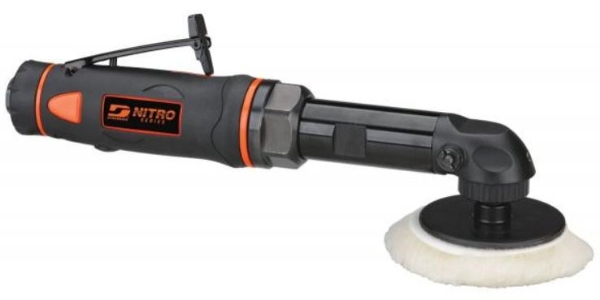

DY EB3

3in Extension Buffer/Polisher, 2,700 RPM, Right Angle

3/8in -24 Spindle, .5hp

Compact, lightweight contemporary tool design

Thermoplastic rubber tool grip reduces cold air transmission and absorbs vibration

• HP: 0.5
• Max. RPM: 2700.0
• Motor RPM: 2,700

IR 317A-A11

FRONT END PLATE ASSEMBLY

IR 317A-A12

REAR END PLATE ASSEMBLY

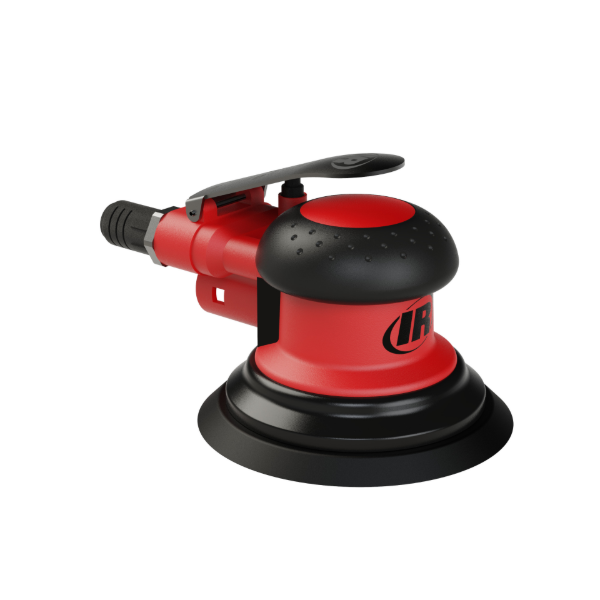

IR 5151-6

Random Orbital Air Sander, 3/16" Orbit, 6" Adhesive Pad, 12,000 RPM, 0.3 HP

The Ingersoll Rand 5100 Series Random Orbital Sander delivers the efficiency you need to improve your productivity and the power you need to get the job done.

Features And Benefits

• Power: Maximum removal rate- to get the job done quickly - allow more work to get done in a day.
• Productivity: Complete more work in a day. Our versatile sander produces a fine, swirl free finish on a variety of surfaces such as wood, composites, fiberglass, sheet metal, and other materials.
• Performance: 12000 RPM to match optimal material removal speeds for your application.
• Versatility: Comfort grip for user comfort and safety.
• Vacuum Ready: Connects to a number of central or portable vacuum systems for efficient particle removal.

Includes: Sander with pad, wrench, 25mm sleeve kit, plug, safety manual, webcard
Product Application and Uses: For sanding on a variety of surfaces such as wood, composites, fiberglass, sheet metal and other materials
Actuation/Throttle Type/Switch Type: Lever
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 5/16"-24 Thread
Average Air Consumption (cfm): 17.5
Average Air Consumption (l/min): 496
Color: Red
Configuration/Handle Type: Palm
Dust Collection Port Size: 25mm end size to connect with the hose
Dust Collection Port Size: 22mm end size to connect with the tool
Dust Collection Type: Vacuum Hose Mount
Duty Rating: Maintenance Duty
Exhaust Location: Rear
Housing Material: Composite
Max Free Speed (rpm): 12000
Max Pressure (bar): 6.2
Min Hose Size (in): 5/16
Motor: Air Gear Motor
Number of Vacuum Holes: 6
Orbit Diameter (in): 3/16
Pad Diameter or Size (in): 6
Pad Face: Adhesive
Power Source: Air Powered
Product Length (in): 6.54
Product Width (in): 3.94
Product Height (in): 4.9
Product Weight (lb): 1.8
Rated Power (hp): 0.3
Shroud Style: Short
Sound Pressure/Power Db(A): 77.9 / 88.9
Special Features: Vacuum Ready, Lube-free Motor
Speed Setting: Variable Speed
Tool Type: Full-size
Vacuum: Vacuum Ready/Central Vacuum
Vibration Level (m/s2): 8.8
Vibration Uncertainy K* (m/s2): 2.9
Warranty: 1-year

Similar IR

• 5151-6-HL
• 5152-6
• 5151-5
• 5152-5

Supersedes

• R036A-PSV

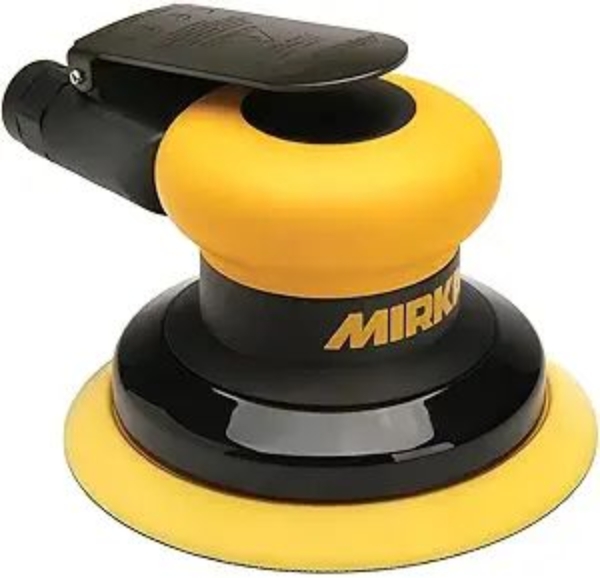

MIR MR-5

Mirka 5 Inch Finishing Sander 5mm Orbit ROS550NV

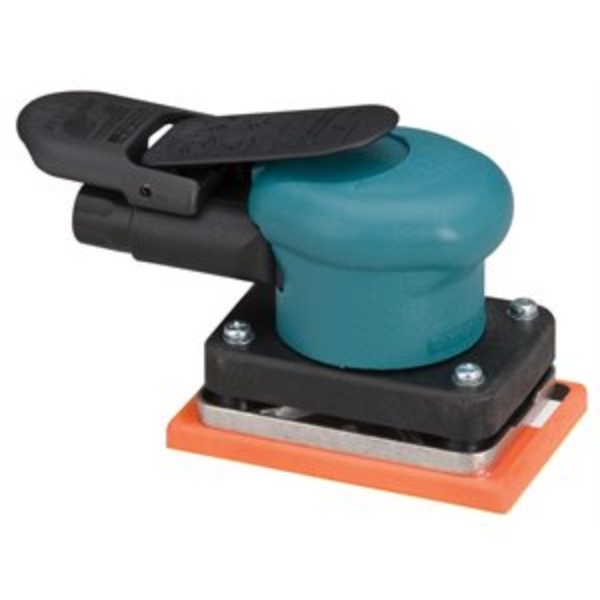

DY 58500

3in (76 mm) W x 4-1/4in (108 mm) L Dynabug II Orbital Sander, Non-Vacuum

.11 hp, 10,000 RPM, 3/32in (2 mm) Diameter Orbit, Rear Exhaust

Powerful .15 hp (112 W), 10,000 RPM air motor gets the job done in countless applications, utilizing just 13 SCFM (368LPM) at 90 PSI (6.2 Bar).

Precise 3/32in orbital motion is ideal for achieving a controlled, ultra-fine finish on a variety of surfaces. Compact size is ideal for all operators, including those with smaller hands.

• HP: 0.15
• Max. RPM: 10000.0

DY 58509

3in (76 mm) W x 4-1/4in (108 mm) L Dynabug II Orbital Sander, Non-Vacuum

.11 hp, 10,000 RPM, 3/32in (2 mm) Diameter Orbit, Rear Exhaust

Powerful .15 hp (112 W), 10,000 RPM air motor gets the job done in countless applications, utilizing just 13 SCFM (368LPM) at 90 PSI (6.2 Bar).

Precise 3/32in orbital motion is ideal for achieving a controlled, ultra-fine finish on a variety of surfaces. Compact size is ideal for all operators, including those with smaller hands.

• HP: 0.15
• Max. RPM: 10000.0

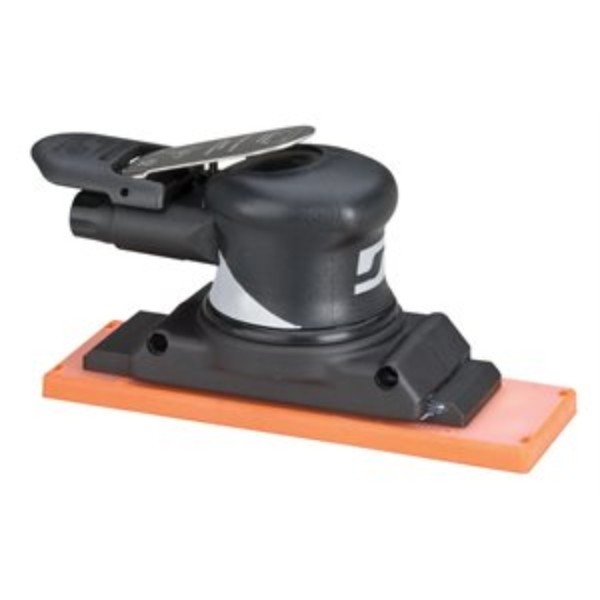

DY 57400

2-3/4in (70 mm) W x 8in (203 mm) L Dynaline Sander, Non-Vacuum

.3 hp, 2,400 SPM, 3/8in (10 mm) SL, Rear Exhaust

2,400 strokes per minute at 90 PSIG (6.2 Bar). 3/8in (10 mm) stroke length.

Uses PSA coated and non-woven nylon sheets and rolls

• HP: 0.3
• Max. RPM: 2400.0
• Motor RPM: 2400

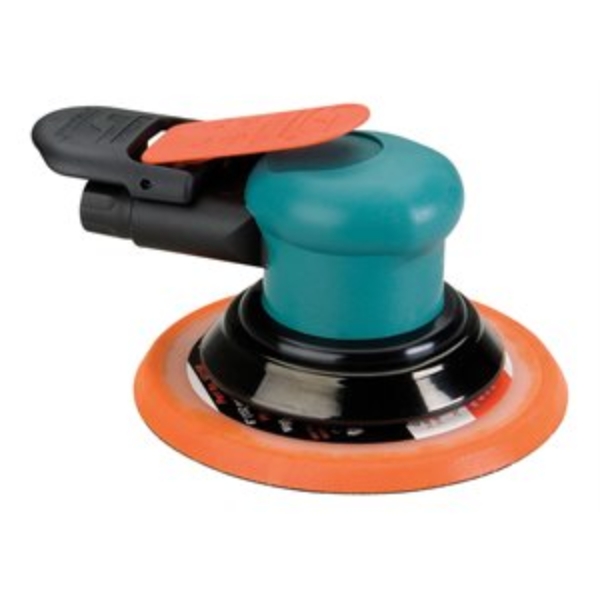

DY 59010

6in (152 mm) Diameter Non-Vacuum Dynorbital-Spirit Random Orbital Sander

.25 hp, 12,000 RPM, 3/8in (10 mm) Diameter Orbit, Rear Exhaust

Includes low profile, premium urethane weight-mated sanding pad. Optional vacuum conversion kits are available to easily convert non-vacuum tool to self-generated vacuum tool or central vacuum tool. Blue lever identifies 3/8in (10 mm) Diameter orbit, used for aggressive sanding.

Drop-In Motor available (sold separately) to reduce costly down-time associated with routine maintenance. More Power - True 12,000 RPM air motor. Floating rotor utilizes five blades, producing more usable power (.25 hp/186 W). High-strength, composite rotor has better lubricating qualities, allowing blades to last longer. Less air (14 SCFM/396 LPM) is used more efficiently to maintain maximum power.

• HP: 0.25
• Max. RPM: 12000.0
• Motor RPM: 12000

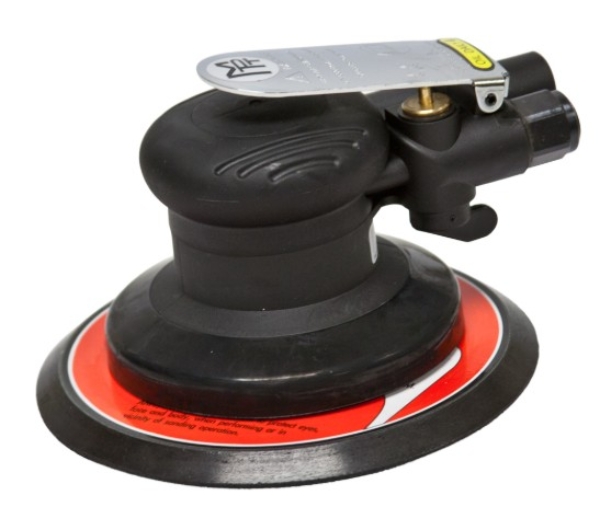

MPT MP-6133-6VSA

Sander, 6in Orbital Palm, PSA

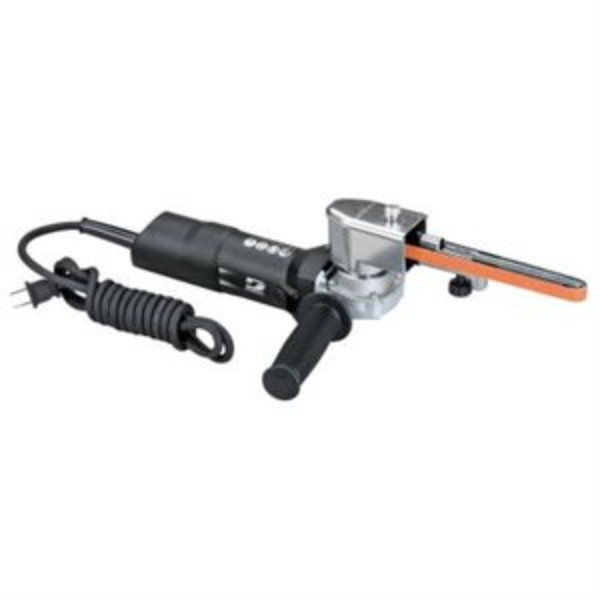

DY 40610

Electric Dynafile II Abrasive Belt Tool

10,500 RPM, 120 V (AC), 7 Amp, 60 Hz, for 1/8in -3/4in W x 18-34in L (3-19 mm x 457-864 mm) Belts

Electric Dynafile II runs coated abrasive and non-woven nylon belts, and is ideal for countless applications on metal, plastic, fiberglass, solid surface, stone, glass etc.

Grind with contact wheel or platen pad. Finish and polish using slack of belt. Tool accepts over 20 interchangeable contact arms, for use with belts 1/4in to 3/4in wide by 18in long. Can accept 1/8in wide or 24in long belts with purchase of additional contact arms (not included).

• HP: 1.0
• Max. RPM: 10500.0

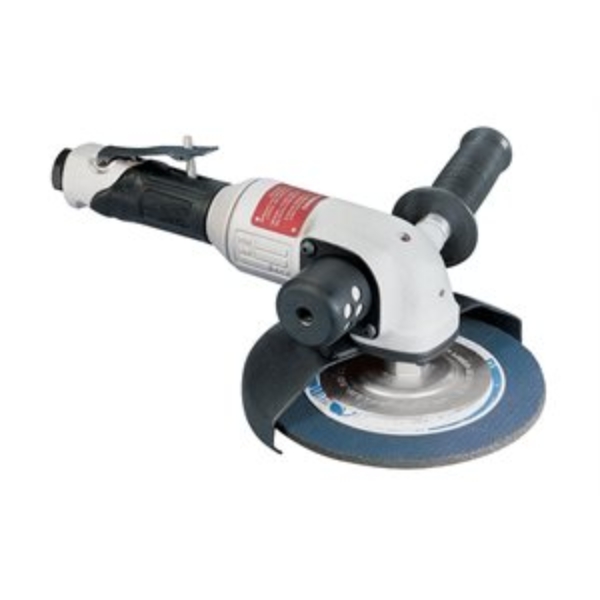

DY 50350

7in (178 mm) Diameter Right Angle Depressed Center Wheel Grinder

1.2 hp, 6,000 RPM, Side Exhaust, 5/8in -11 Spindle Thread

Depressed Center Wheel Grinder, for fast weld and stock removal, rust and scale removal, heavy deburring.

7in Diameter, Right Angle, 1.2 hp, Side Exhaust, 6,000 RPM.

• HP: 1.2
• Max. RPM: 6000.0
• Motor RPM: 6000

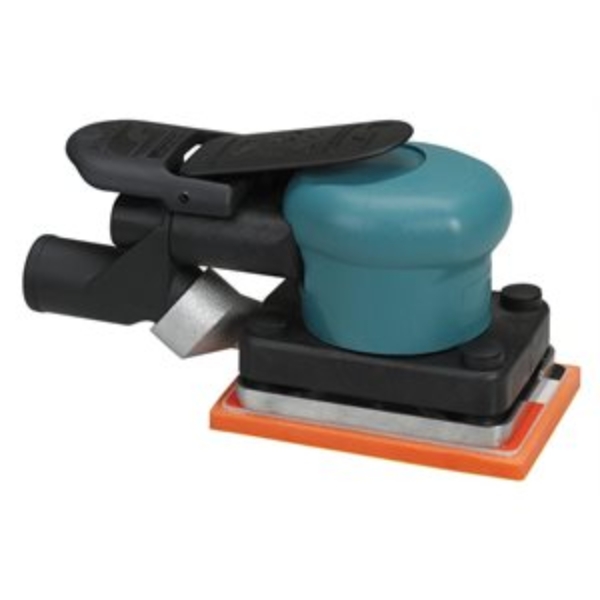

DY 58502

3in (76 mm) W x 4-1/4in (108 mm) L Dynabug II Orbital Sander, Central Vacuum

.11 hp, 10,000 RPM, 3/32in (2 mm) Diameter Orbit, Rear Exhaust

Powerful .15 hp (112 W), 10,000 RPM air motor gets the job done in countless applications, utilizing just 13 SCFM (368LPM) at 90 PSI (6.2 Bar).

Precise 3/32in orbital motion is ideal for achieving a controlled, ultra-fine finish on a variety of surfaces. Compact size is ideal for all operators, including those with smaller hands.

• HP: 0.15
• Max. RPM: 10000.0

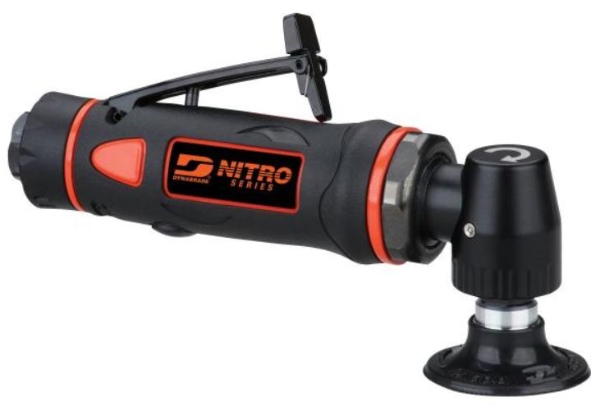

DY DS32

2in (50mm) Diameter Right Angle Disc Sander

.3 hp, 18,000 RPM, Rotational Side Exhaust, TR Locking Female Pad

Compact, lightweight contemporary tool design permits easy access to tight areas

Thermoplastic rubber tool grip reduces cold air transmission and absorbs vibration

• HP: 0.3
• Max. RPM: 18000.0
• Motor RPM: 18,000

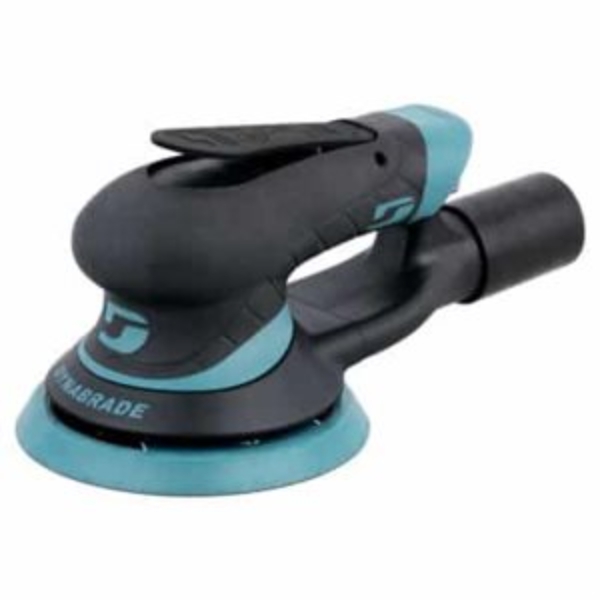

DY X52V

5in (127 mm) Diameter Vacuum-Ready Dynorbital Extreme Random Orbital Sander

.3 hp, 12,000 RPM, 3/32in (2.5 mm) Diameter Orbit, Rear Exhaust, Hook-Face

EXTREME POWER: New motor design has the highest power-to-weight ratio in the industry, with 0.3 hp at 1.8 lbs. Most consistent speed under load in industry, running at 92% of rated tool speed. New rotor design enhances power with less friction.

EXTREME COMFORT: Ergonomic design with integrated comfort platform for more wrist support and overall operator comfort. Soft grip co-molded to rigid composite base housing for maximum comfort and durability. Recessed throttle lever eliminates pinch and pressure points on an operator's palm.

• HP: 0.3
• Max. RPM: 12000.0
• Motor RPM: 12,000

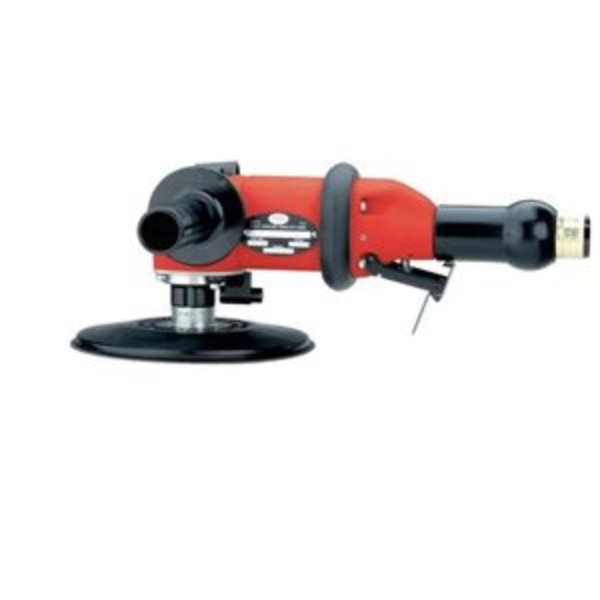

SX 1287L

7In Air Sander Lever Handle Q

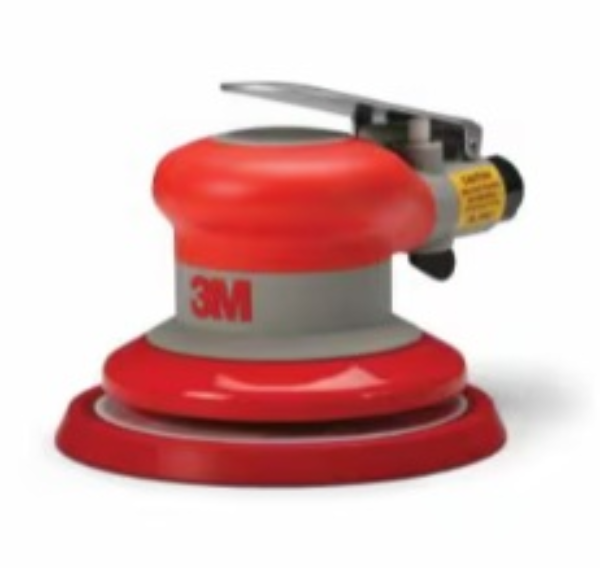

3M 20317

Non-Vacuum, 5in Random Orbital Sander, 3/16in Orbit

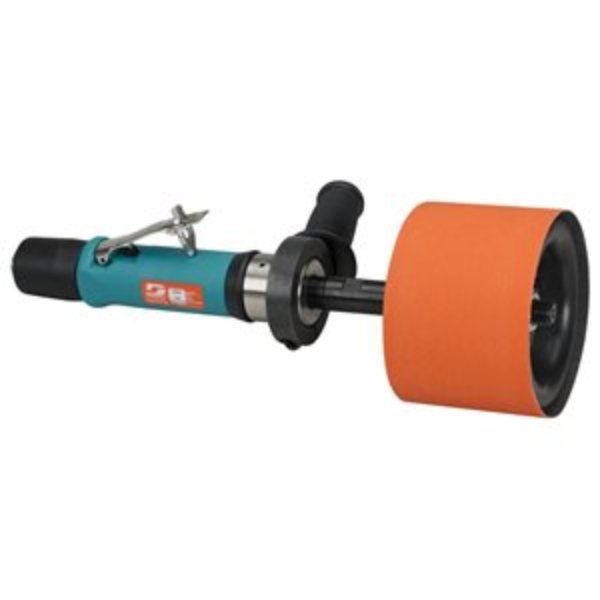

DY 13204

Dynastraight Finishing Tool

.7 hp, Straight-Line, 3,400 RPM, Rear Exhaust, 5/8in -11 Arbor

Dynastraight Air-Powered Abrasive Finishing Tool for graining, cleaning and polishing on stainless steel, aluminum, carbon steel and composites.

3,400 RPM, .7 hp. Model includes 13015 Threaded Arbor (5/8in -11), ideal for use with optional 94472 Dynacushion Pneumatic Wheel.

• HP: 0.7
• Max. RPM: 3400.0
• Motor RPM: 3400

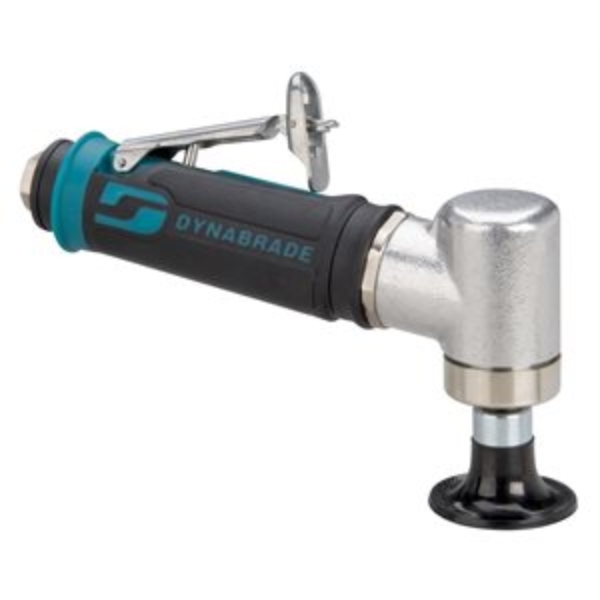

DY 48503

2in (51 mm) Diameter 7 Degree Offset Disc Sander

.4 hp, 25,000 RPM, Gearless, Rear Exhaust, Locking-Type Female Pad

Includes 51344 Locking-Type Pad (2in diameter).

Handle is offset 7 degree for greater operator comfort and control. Gearless for reduced maintenance and down-time.

• HP: 0.4
• Max. RPM: 25000.0
• Motor RPM: 25,000

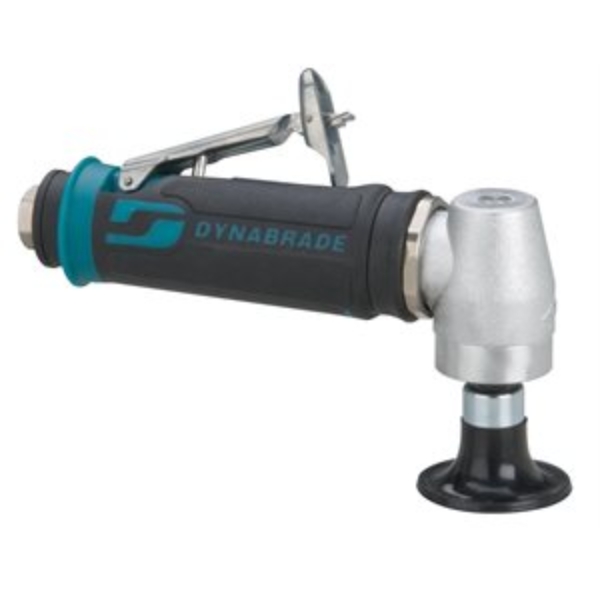

DY 48542

2in (51 mm) Diameter Right Angle Disc Sander

.4 hp, 20,000 RPM, Geared, Rear Exhaust, Locking-Type Female Pad

Includes 51344 Locking-Type Pad (2in diameter). Also accepts 3in diameter pads, sold separately.

Governor-controlled motor maintains speed under load.

• HP: 0.4
• Max. RPM: 20000.0
• Motor RPM: 20,000

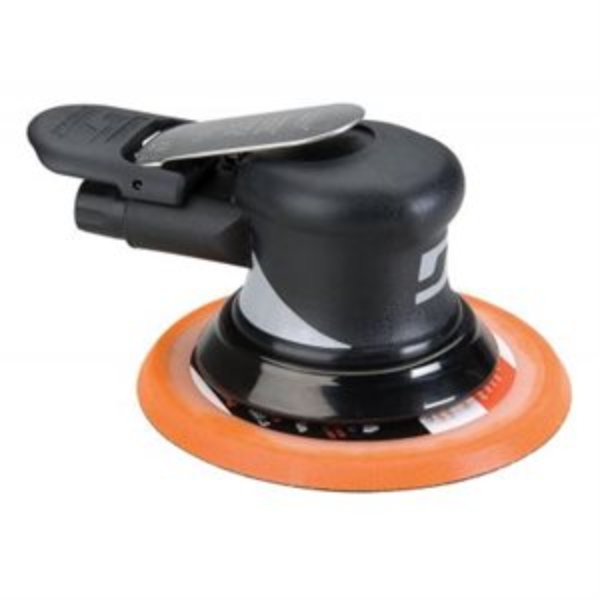

DY 56826

6in (152 mm) Diameter Non-Vacuum Dynorbital Supreme Random Orbital Sander

.28 hp, 12,000 RPM, 3/16in (5 mm) Diameter Orbit, Rear Exhaust (56107)

Non-Vacuum Dynorbital Supreme includes low profile, premium urethane weight-mated sanding pad. Optional vacuum conversion kits available, to easily convert non-vacuum tool to self-generated vacuum tool or central vacuum tool. 3/16in (5 mm) diameter orbit.

Dynorbital Supreme models run at 12,000 RPM. Rotor utilizes five blades and produces more useable power. Composite rotor is stronger and has better lubricating qualities, enabling blades to last longer.

• HP: 0.28
• Max. RPM: 12000.0
• Motor RPM: 12000

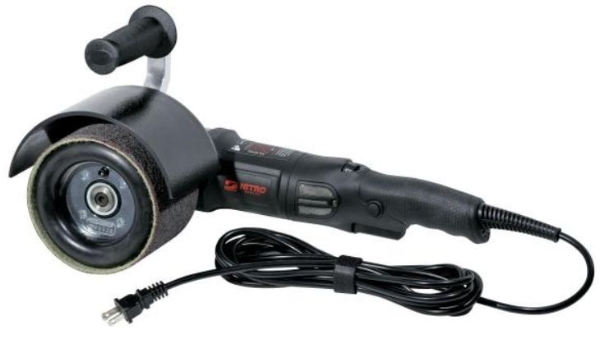

DY DYS1

Electric Dynisher Finishing Tool

800-3,000 RPM, 120 V (AC), 9 Amp, 1 Phase, 60 Hz, 3/4in (19 mm) Diameter Arbor

The Dynabrade Nitro Series Electric Dynisher will give the user the professional results they desire. This powerful tool is excellent for blending and finishing stainless steel leaving an in-line scratch pattern. Additionally, it is perfect for use on other metals, as well as plastics, composites and more.

New lower center-of-gravity makes it easier to control the tool and keep the line grain straight. Compact, right angle tool configuration with spindle lock for quick wheel changes. Multi purpose arbor accepts Dynacushion Pneumatic Wheel and Non-Woven Nylon Wheels.

• Motor RPM: 3,000

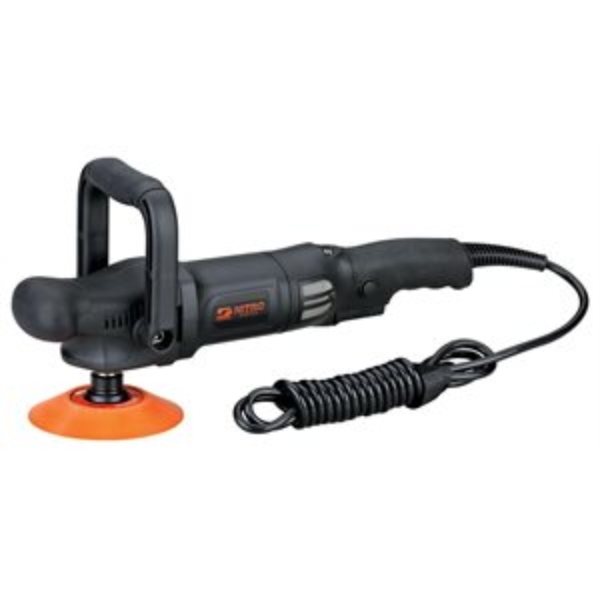

DY RB3

Electric Rotary Buffer

800 - 3,000 RPM, 110 V, 1000 Watt, 5/8in -11 Spindle Thread

Powerful 1000-watt motor is well suited detail applications

Well balanced, right angle tool configuration provides easy operator control Thumb controlled variable speed dial offers six speed selection options between 800 - 3000 RPM
