Sanders, Polishers, Buffers

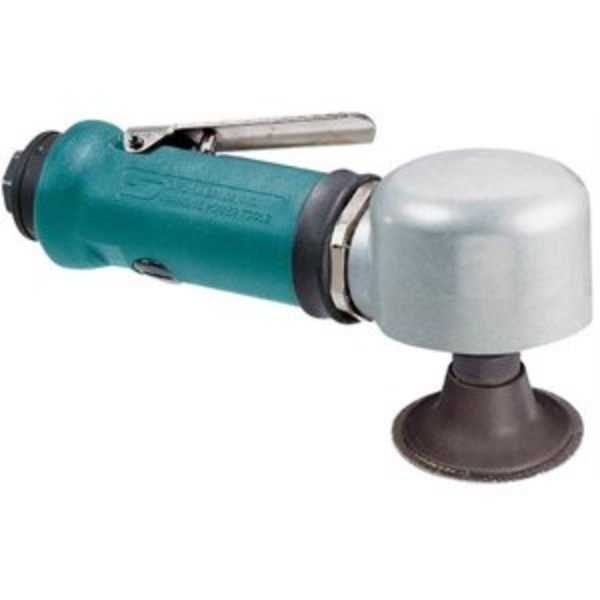

DY 52590

2in (51 mm) Diameter Right Angle Disc Sander

.33 hp, 18,000 RPM, Gearless, Rear Exhaust, Locking-Type Female Pad

Includes 51345 Locking-Type Pad (2in diameter). Also accepts 3in diameter disc pads, sold separately.

Features standard muffler for more compact design. Tool combines top efficiency with great value.

• HP: 0.33
• Max. RPM: 18000.0
• Motor RPM: 18,000

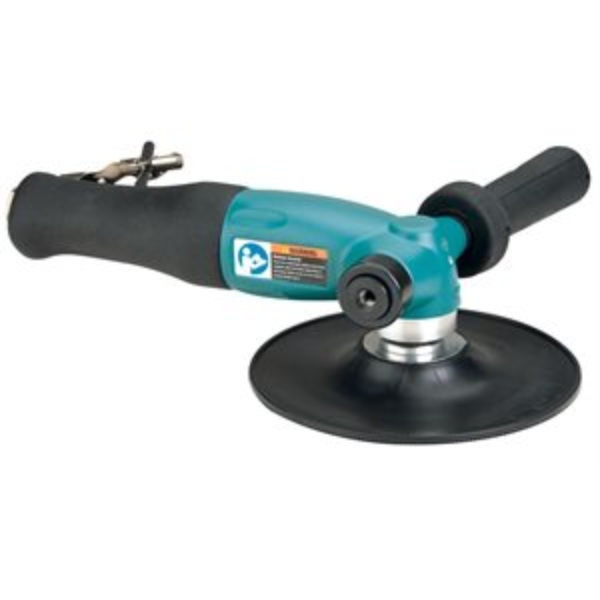

DY 52657

7in (178 mm) Diameter Right Angle Disc Sander

1.3 hp, 6,000 RPM, Rotational Exhaust, 5/8in -11 Spindle Thread

Includes 51151 Backing Pad, 7in (178 mm) diameter, plus mounting hardware. Accepts optional 7in (178 mm) diameter Abrasive Discs with 7/8in (22 mm) center hole.

Dynabrade's 1.3 hp (970 W) Right Angle Sander offer countless grinding and material removal solutions to industries such as metal/stainless steel fabrication, composites, masonry, ironwork and general welding. Designed to the Dynabrade standard of excellence, these tools offer a wide array of features to increase efficiency and maximize operator comfort!Vibration Dampening Side Handle Specially designed to reduce vibration transfer to operator. Removable for left or right hand use. Rotational Exhaust System Rotates a full 360 degree to ensure that exhaust is directed away from operator.

• HP: 1.3
• Max. RPM: 6000.0
• Motor RPM: 6,000

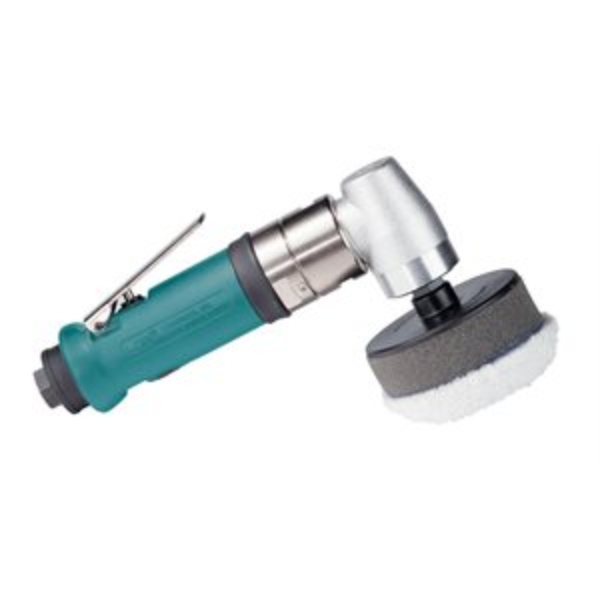

DY 53460

3in (76 mm) Diameter Right Angle Rotary Buffer

.4 hp, 3,200 RPM, Rear Exhaust, 3/8in -24 Spindle Thread

3in Diameter Buffer, .4 hp, for quick and easy spot repair on a variety of surfaces.

3in Diameter, .4 hp, 3,200 RPM, Right Angle, Rear Exhaust.

• HP: 0.4
• Max. RPM: 3200.0
• Motor RPM: 3200

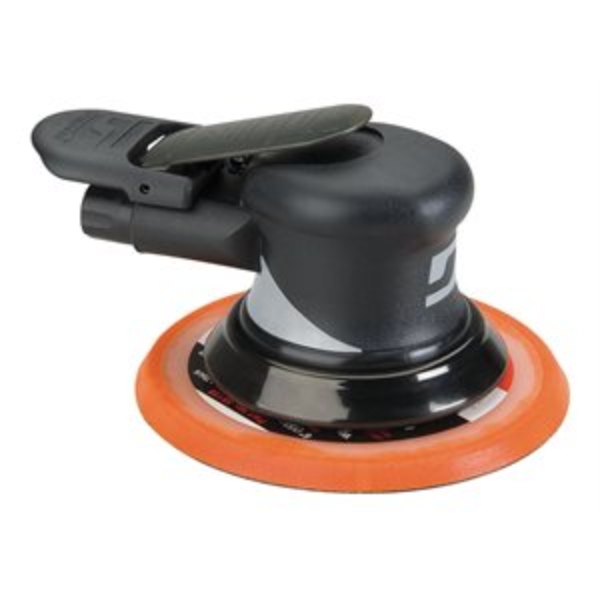

DY 56859

6in (152 mm) Diameter Non-Vacuum Dynorbital Supreme Random Orbital Sander

.28 hp, 12,000 RPM, 3/32in (2 mm) Diameter Orbit, Rear Exhaust (56107)

Non-Vacuum Dynorbital Supreme includes low profile, premium urethane weight-mated sanding pad. Optional vacuum conversion kits available, to easily convert non-vacuum tool to self-generated vacuum tool or central vacuum tool. 3/32in (2.5 mm) diameter orbit.

Dynorbital Supreme models run at 12,000 RPM. Rotor utilizes five blades and produces more useable power. Composite rotor is stronger and has better lubricating qualities, enabling blades to last longer.

• HP: 0.28
• Max. RPM: 12000.0
• Motor RPM: 12000

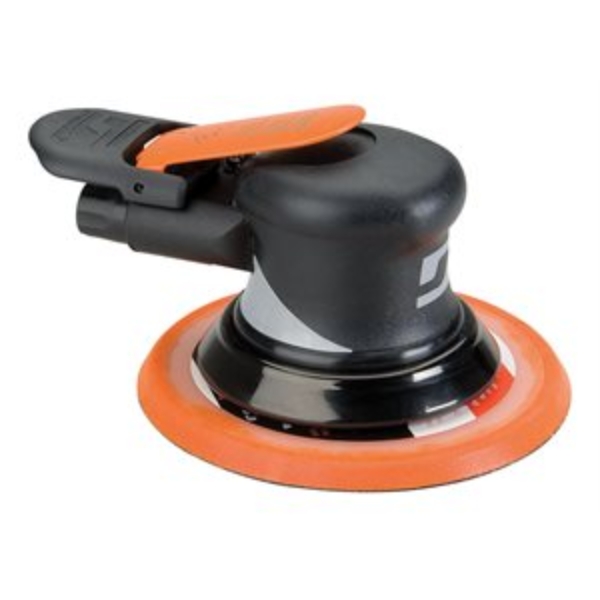

DY 56890

6in (152 mm) Diameter Non-Vacuum Dynorbital Supreme Random Orbital Sander

.28 hp, 12,000 RPM, 3/8in (10 mm) Diameter Orbit (56107)

Non-Vacuum Dynorbital Supreme includes low profile, premium urethane weight-mated sanding pad. Optional vacuum conversion kits available, to easily convert non-vacuum tool to self-generated vacuum tool or central vacuum tool. 3/8in (10 mm) diameter orbit.

Dynorbital Supreme models run at 12,000 RPM. Rotor utilizes five blades and produces more useable power. Composite rotor is stronger and has better lubricating qualities, enabling blades to last longer.

• HP: 0.28
• Max. RPM: 12000.0

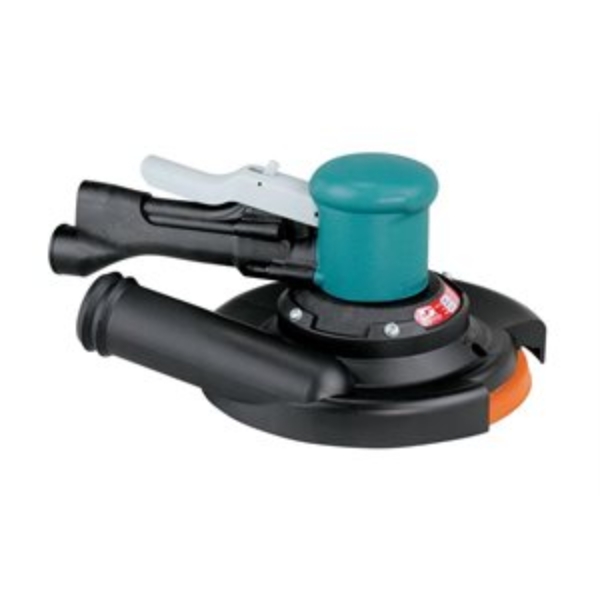

DY 58446

8in (203 mm) Diameter Two-Hand Gear-Driven Sander, Central Vacuum

.45 hp, 900 RPM, Rear Exhaust, w/56237 Hook Face Pad

Central Vacuum models are designed for use with central vacuum system or external vacuum source. Includes combination lip-seal shroud-overskirt, which allows greater workpiece visibility and enhanced vacuum capability.

Dust is extracted away from air motor (reducing contamination) for a smoother, easier path of extraction.

• HP: 0.45
• Max. RPM: 900.0
• Motor RPM: 900

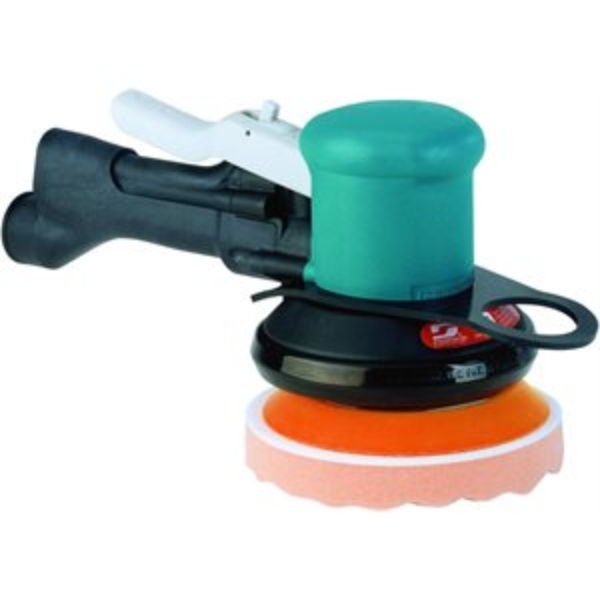

DY 58455

5in (127 mm) Diameter Dynabuffer Random Orbital Polisher

.3 hp, 10,000 RPM, Rear Exhaust, 14 mm (.55in ) Diameter Orbit, 5/16in -24 Female Thread

5in Diameter Dynabuffer Air-Powered Buffing Tool, ideal for use in Two-Step Polishing System. Excellent for buffing out sanding scratches.

Dynabuffer moves optional backup pad and optional polishing buff in 14 mm diameter offset orbit. Tool runs at 10,000 RPM free speed, then slows to 5,000 RPM under load.

• HP: 0.21
• Max. RPM: 10000.0
• Motor RPM: 10000

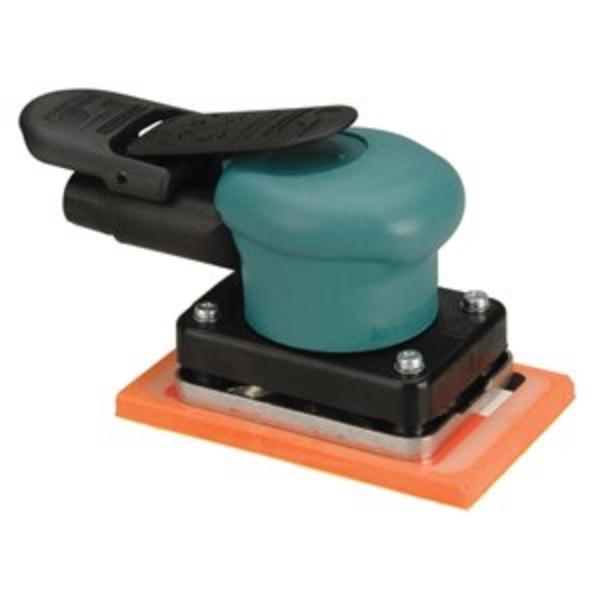

DY 58503

3-1/4in (82 mm) W x 5in (127 mm) L Dynabug II Orbital Sander, Non-Vacuum

.11 hp, 10,000 RPM, 3/32in (2 mm) Diameter Orbit, Rear Exhaust

Powerful .15 hp (112 W), 10,000 RPM air motor gets the job done in countless applications, utilizing just 13 SCFM (368LPM) at 90 PSI (6.2 Bar).

Precise 3/32in orbital motion is ideal for achieving a controlled, ultra-fine finish on a variety of surfaces. Compact size is ideal for all operators, including those with smaller hands.

• HP: 0.15
• Max. RPM: 10000.0

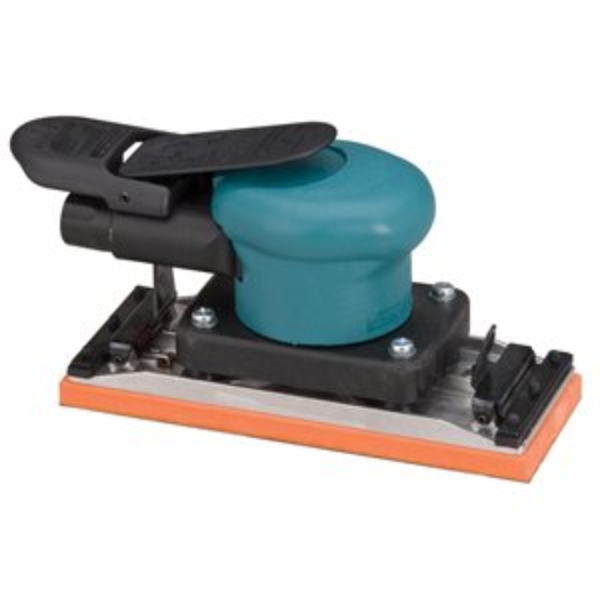

DY 58507

2-3/4in (70 mm) W x 7in (178 mm) L Dynabug II Orbital Sander, Non-Vacuum with Clips

.11 hp, 10,000 RPM, 3/32in (2 mm) Diameter Orbit, Rear Exhaust

Powerful .15 hp (112 W), 10,000 RPM air motor gets the job done in countless applications, utilizing just 13 SCFM (368 LPM) at 90 PSI (6.2 Bar). Precise 3/32in orbital motion is ideal for achieving a controlled, ultra-fine finish on a variety of surfaces.

Compact size is ideal for all operators, including those with smaller hands. Engineered and tested to ensure less tool vibration than an competitive model! Lighter tool weight minimizes hand and arm fatigue. Perfect for vertical applications.

• HP: 0.15
• Max. RPM: 10000.0

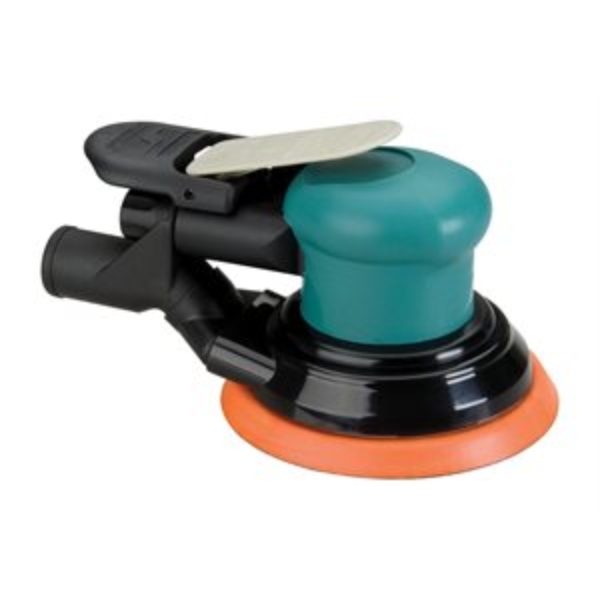

DY 59024

5in (127 mm) Diameter Central Vacuum Dynorbital-Spirit Random Orbital Sander

.25 hp, 12,000 RPM, 3/16in (5 mm) Diameter Orbit, Rear Exhaust

Includes low profile, premium urethane weight-mated sanding pad. Grey lever identifies 3/16in (5 mm) Diameter orbit, used for general sanding.

Drop-In Motor available (sold separately) to reduce costly down-time associated with routine maintenance. More Power - True 12,000 RPM air motor. Floating rotor utilizes five blades, producing more usable power (.25 hp/186 W). High-strength, composite rotor has better lubricating qualities, allowing blades to last longer. Less air (14 SCFM/396 LPM) is used more efficiently to maintain maximum power.

• HP: 0.25
• Max. RPM: 12000.0
• Motor RPM: 12000

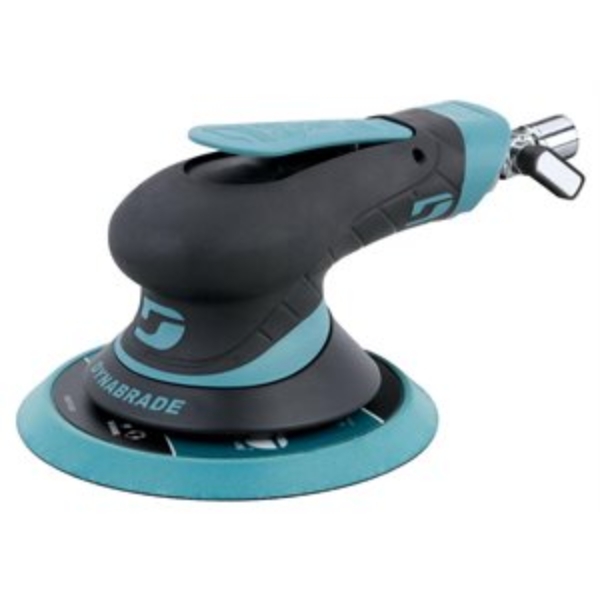

DY X61HS

6in (152mm) Diameter Non-Vacuum Dynorbital Extreme Random Orbital Sander

0.3 hp, 12,000 RPM, 3/16in (5 mm) Diameter Orbit, Rear Exhaust, Hook-Face w/Speed Regulator

Added speed control to adjust the flow of air and RPM of the tool.

EXTREME POWER: New motor design has the highest power-to-weight ratio in the industry, with 0.3 hp at 1.8 lbs. Most consistent speed under load in industry, running at 92% of rated tool speed. New rotor design enhances power with less friction.

• HP: 0.3
• Motor RPM: 12,000

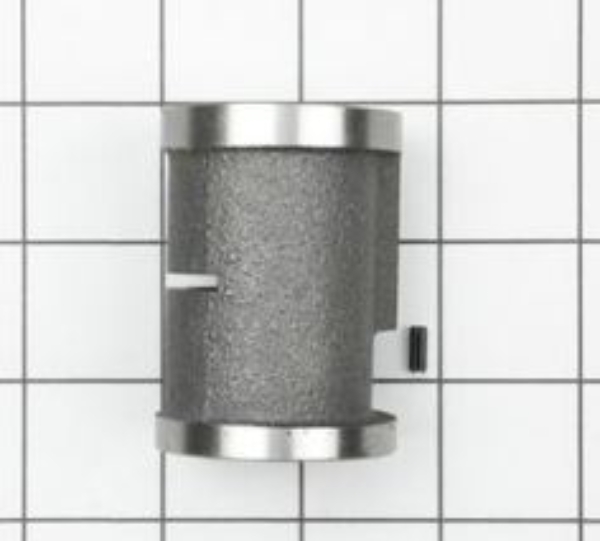

IR 313A-A3

CYLINDER ASSEMBLY

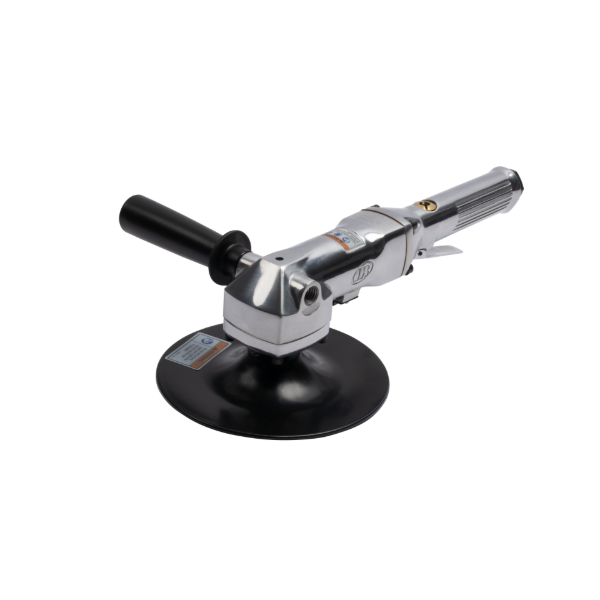

IR 314-B

Air Angle Polisher & Buffer, 7" Composite Pad, 3,000 RPM, 0.5 HP

From a range of jobs to a range of surfaces, the air angle polisher and buffer will see you through any application.

Features And Benefits

• Ease of Use: With variable speed options, you can adjust your tool for your applications as needed.
• Reach: This buffer is designed to be able to reach deep, hard to reach spaces.
• Performance: Equipped with a heavy duty .5 HP motor that is ready to handle tough jobs, you’ll perform well any time you use it.

Product Application and Uses: Buff and polish all painted surfaces
Actuation/Throttle Type/Switch Type: Lever
Air Consumption @ Load (cfm): 7.5
Air Consumption @ Load (l/min): 210
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Average Air Consumption (cfm): 6.75
Average Air Consumption (l/min): 190
Color: Silver
Configuration/Handle Type: Right Angle
Duty Rating: Maintenance Duty
Exhaust Location: Side- Handle
Housing Material: Aluminum
Max Free Speed (rpm): 3000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Pad Diameter or Size (in): 7
Power Source: Air Powered
Product Length (in): 12.2
Product Height (in): 3.94
Product Weight (lb): 4.67
Rated Power (hp): 0.5
Sound Pressure/Power Db(A): 91.3/101.3
Special Features: Variable speed for better control
Speed Setting: Variable Speed
Standards/Certifications: CE
Vibration Level (m/s2): 4.7
Warranty: 1-year

Supersedes

• 314A

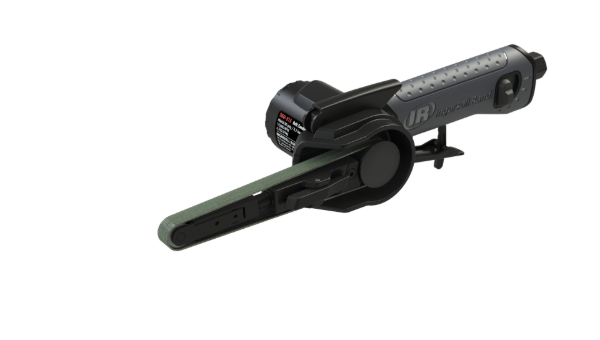

IR 360-313

Air Belt Sander, 3/8"x13", 20,000 RPM, 4700 SFPM, 0.6 HP, Rear Exhaust

The 360-313 Pneumatic Belt Sander is engineered to make quick work of material removal and deliver smooth finishes. Whether removing spot welds, rust, deposits, or burrs; or fine-tuning a finished surface, these tools get the job done fast with a 0.6HP motor - 20% more than the leading competitor. Increase your productivity with tool-free belt changes (3/8" x 13") that make switching from one abrasive to the next quick and convenient, as well as a tool-free articulating arm that ensures every nook and cranny is easily reached. 360-418 also available with a 1/2" x 18" belt.

Features And Benefits

• Strong and Reliable: .6HP motor delivers maximum removal rates to ensure you get the job done quickly and can do more jobs each day.
• Adaptable: Tool-free articulating arm ensures hard to reach areas are never overlooked and quick adjustments for whatever task is at hand.
• Adjustable: A handy power regulator ensures the right amount of power for every task.
• Ergonomic: Narrow rubber grip provides comfort to last as long as you need.
• Comfort: Built for all-day use, these lightweight sanders weigh less than 2.5 lbs. and tackle every job without sacrificing comfort and ergonomics.
• Uses: Can accomplish a wealth of sanding and finishing tasks, from removing spot welds, rust, burrs and surface deposits to final finishing and much more.
• Includes: 3/8x13" Belt Sander and (3) Norton sanding belts (60, 80 and 100 Grit)

Includes: 3/8 x 13" Sander, hex wrench, (3) Norton sanding belts (60, 80 and 100 Grit), Safety manual, web card
Product Application and Uses: For sanding on a variety of surfaces such as metal, plastic, fiberglass, wood and other materials; removing spot welds, rust, burrs and surface deposits to final surface finishing.
Actuation/Throttle Type/Switch Type: Safety Lever
Air Consumption (cfm): 28.8
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arm Rotation: 360 Degree
Arm Type: Pivoting
Average Air Consumption (cfm): 28.8
Average Air Consumption (l/min): 815
Belt Size (in): 3/8 x 13
Belt Speed (sfpm): 4700
Color: Black
Configuration/Handle Type: Straight
Duty Rating: Maintenance Duty
Exhaust Location: Rear
Housing Material: Metallic with rubber over mold
Max Free Speed (rpm): 20000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 12.4
Product Width (in): 3.5
Product Height (in): 3.4
Product Weight (lb): 2.29
Rated Power (hp): 0.6
Sound Pressure/Power Db(A): 90 / 101
Special Features: Tool-free belt changes, Tool Free articulating arm
Speed Setting: Variable Speed
Tool Type: Full-size
Vibration Level (m/s2): 1
Warranty: 1-year

Similar IR

• 360-418

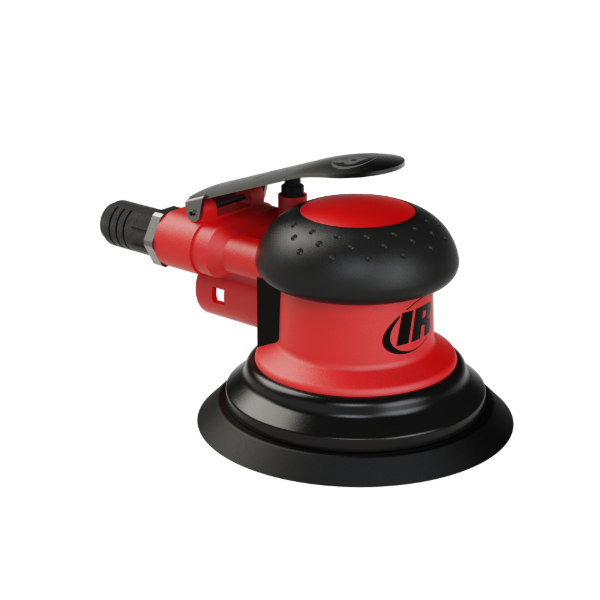

IR 5151-5

Random Orbital Air Sander, 3/16" Orbit, 5" Vinyl Pad, 12,000 RPM, 0.3 HP

The Ingersoll Rand 5100 Series Random Orbital Sander delivers the efficiency you need to improve your productivity and the power you need to get the job done.

Features And Benefits

• Power: Maximum removal rate- to get the job done quickly - allow more work to get done in a day.
• Productivity: Complete more work in a day. Our versatile sander produces a fine, swirl free finish on a variety of surfaces such as wood, composites, fiberglass, sheet metal, and other materials.
• Performance: 12000 RPM to match optimal material removal speeds for your application.
• Versatility: Comfort grip for user comfort and safety.
• Vacuum Ready: Connects to a number of central or portable vacuum systems for efficient particle removal.

Includes: Sander with pad, wrench, 25mm sleeve kit, plug, safety manual, webcard
Product Application and Uses: For sanding on a variety of surfaces such as wood, composites, fiberglass, sheet metal and other materials
Actuation/Throttle Type/Switch Type: Lever
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 5/16"-24 Thread
Average Air Consumption (cfm): 17.5
Average Air Consumption (l/min): 496
Color: Red
Configuration/Handle Type: Palm
Dust Collection Port Size: 25mm end size to connect with the hose
Dust Collection Port Size: 22mm end size to connect with the tool
Dust Collection Type: Vacuum Hose Mount
Duty Rating: Maintenance Duty
Exhaust Location: Rear
Housing Material: Composite
Max Free Speed (rpm): 12000
Max Pressure (bar): 6.2
Min Hose Size (in): 5/16
Motor: Air Gear Motor
Number of Vacuum Holes: 6
Orbit Diameter (in): 3/16
Pad Diameter or Size (in): 5
Pad Face: Adhesive
Power Source: Air Powered
Product Length (in): 6.54
Product Width (in): 3.94
Product Height (in): 4.9
Product Weight (lb): 1.8
Rated Power (hp): 0.3
Shroud Style: Short
Sound Pressure/Power Db(A): 77.9 / 88.9
Special Features: Vacuum Ready, Lube-free Motor
Speed Setting: Variable Speed
Tool Type: Full-size
Vacuum: Vacuum Ready/Central Vacuum
Vibration Level (m/s2): 10.1
Vibration Uncertainy K* (m/s2): 3.3
Warranty: 1-year

Similar IR

• 5151-5-HL
• 5151-6
• 5152-6
• 5152-5

Supersedes

• R035A-PSV

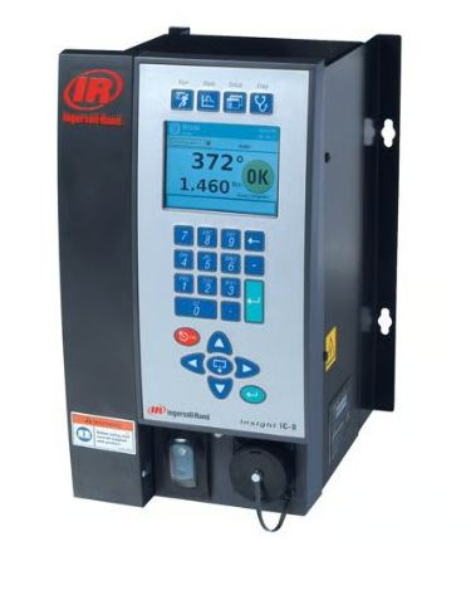

IR 77H120-A524RH

CONTROLLER (-A424RH)

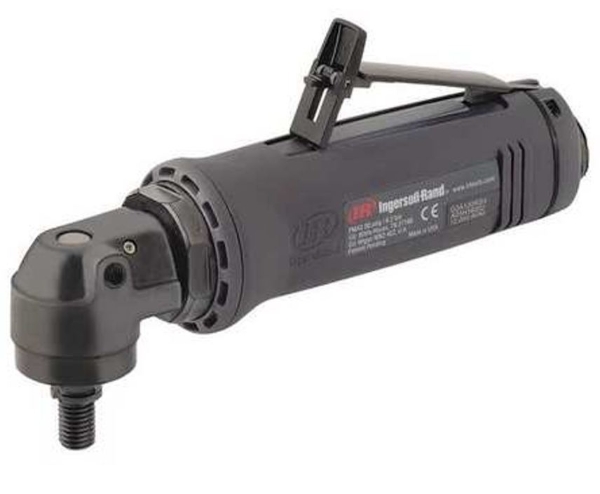

IR G1A200RS4

Angle Air Sander, 20,000 RPM, 0.4 HP, 1/4"-20 Thread, Rear Exhaust

Arbor/Collet: 1/4"-20 Thread
Configuration/Handle Type: Right Angle
Configuration/Handle Type: Auxiliary Handle
Duty Rating: Industrial Duty
Exhaust Location: Rear
Max Free Speed (rpm): 20000
Min Hose Size (in): 3/8
Mounting Type: Arbor
Product Length (in): 6
Rated Power (hp): 0.4
Sound Pressure/Power Db(A): 83.6 / 94.6
Speed Setting: Variable Speed
Vacuum: None
Vibration Level (m/s2): 3
Warranty: 1-year

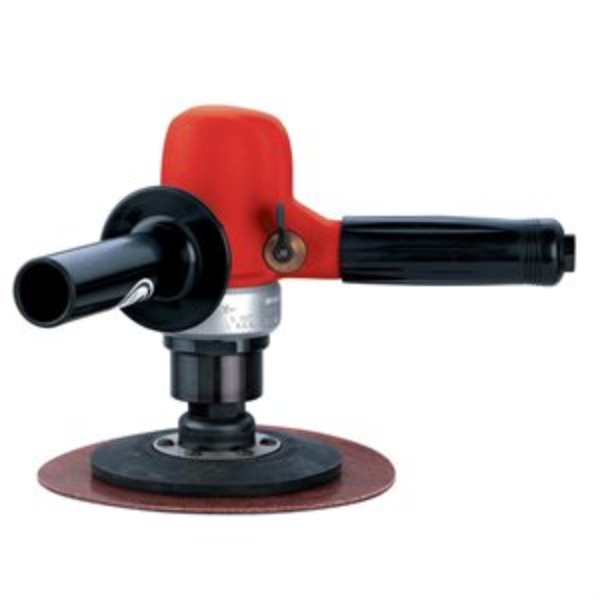

SX 1290

7in Vertical Air Sander

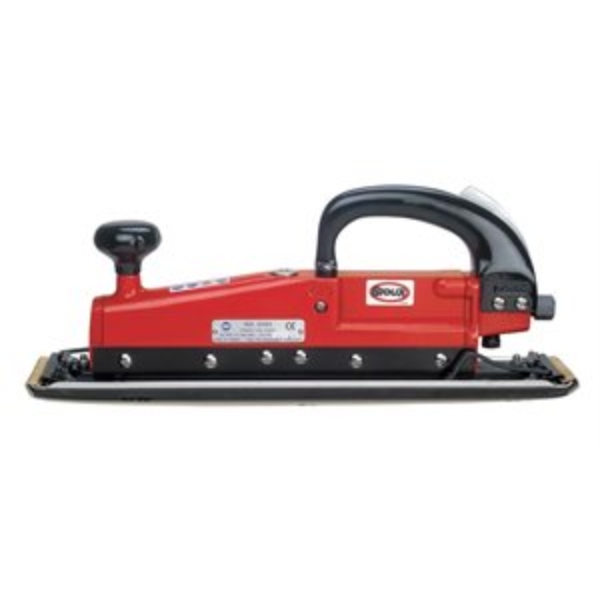

SX 5560

Inline Sander

U UT8789-5-336

5 Inch Palm Sander

U UT8789-6-336

6 Inch Palm Sander, 3/16 Orbit, PSA

U UT8791

Orbital Jitterbug Sander 4 x 6 Pad

DY 40611

Electric Dynafile II Abrasive Belt Tool Versatility Kit

10,500 RPM, 120 V (AC), 7 Amp, 60 Hz, for 1/8in -3/4in W x 18-34in L (3-19 mm x 457-864 mm) Belts

Electric Dynafile II runs coated abrasive and non-woven nylon belts, and is ideal for countless applications on metal, plastic, fiberglass, solid surface, stone, glass etc.

Grind with contact wheel or platen pad. Finish and polish using slack of belt. Tool accepts over 20 interchangeable contact arms, for use with belts 1/4in to 3/4in wide by 18in long. Can accept 1/8in wide or 24in long belts with purchase of additional contact arms (not included).

• HP: 1.0
• Max. RPM: 10500.0

DY 50349

7in (178 mm) Diameter Right Angle Disc Sander

1.2 hp, 6,000 RPM, Side Exhaust, 5/8in -11 Female Pad

Air motor is governor-controlled to maintain RPM under heavy load. Lubricated gears increase durability.

Side handle is reversible for left or right hand operation. Safety-lock throttle lever included.

• HP: 1.2
• Max. RPM: 6000.0
• Motor RPM: 6000

DY 57460

2-3/4in (70 mm) W x 8in (203 mm) L Non-Vacuum Dynaline Disc Pad with Clips, Vinyl-Face

3/8in (10 mm) Thickness Urethane, Medium Density, For PSA Discs

The premium self skinning urethane foam provide optimum support and flexibility for the widest range of sanding applications with coarse to ultra fine grit abrasives.

3/8in (10 mm) thick, medium density pads. Pads mount with four screws.
