RTS 60Nm 3/8in Pin Retainer, 2.5AH Battery Kit

IR RTS060PS6-K2

RTS 3/8" 20V Mechanical Cordless Pulse Tool 2 Battery Kit, 44ft-lb Torque, 3600PPM, 2700RPM, Pin Retainer

Description: RTS Responsive Tightening System - Transform assembly lines with the RTS Connect, where responsive action meets torque control. Infused with Ingersoll Rand torque control algorithm, this system is a game changer for reliable tightening. Experience effortless operations with its user-friendly interface, 40 distinct torque levels, seven flush levels and dual speed non-contact trigger and a 360° status beam LED ring light. The RTS Connect features reactionless performance, combined with robust wireless connectivity and programmable settings, making it the tool of choice for those who demand perfection at every turn.

Features And Benefits:

• SIMPLE: An integrated color LCD display is an easy-to-use interface that streamlines the setup process and delivers key insights to the operator. The multi-color 360° status beam LED ring light illuminates the work area and offers clear feedback to the operator on the cycle status. 3 programming methods provide faster and smarter configuration. (Basic setup via the tool display, Advanced setup via INSIGHT Connect controller or mobile app, Expert setup via INSIGHTqcx MTC controller)
• FLEXIBLE: Up to 8 P-set configurations reduce the need for multiple tools for different applications on the assembly line. Compatible with IQV20 battery and charger platform, providing flexibility and reducing costs in operations. 4 communication options available to adapt to evolving connectivity requirements. (Wi-Fi 2.4 and 5 Ghz, Radio (802.15.4), Bluetooth, USB-C)
• CAPABLE: Proprietary torque control algorithm that delivers consistent, repeatable fastening every time. 40 torque settings and 7 flush detection levels to adapt to various application types. Multi-tool connection, with up to 16 tools wirelessly connected to the INSIGHTqcx MTC controller, reduces the hardware footprint.
• ERGONOMICS: RTS Connect tools eliminate torque reaction, have best-in-class tool balance & ergonomic grip design, and their light weight design significantly reduces operator fatigue.

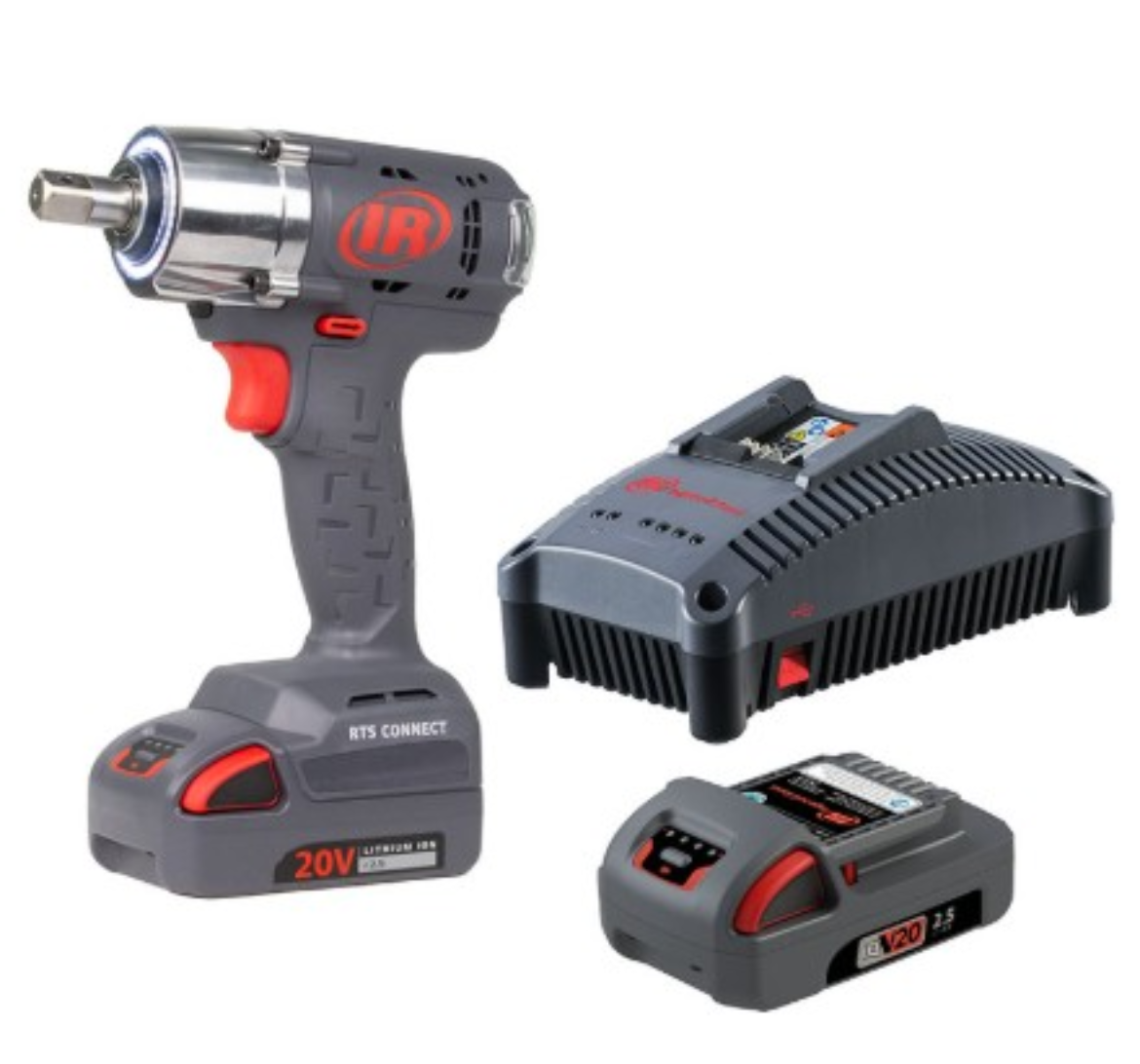

• KIT INCLUDES: 3/8" RTS Pulse Tool, (2) 2.5 Ah Batteries, Charger.

Product Application and Uses:

For use in product environments on assembly lines.

• Includes: 3/8" RTS Pulse Tool, (2) 2.5 Ah Batteries, Charger.
• Anvil Length: Standard

• Built-in Light: Yes

• Color: Grey
• Configuration/Handle Type: Pistol Grip
• Data Storage Capacity: 1200 cycles
• Drive Size (in): 3/8
• Drive Type: Square
• Duty Rating: Production Environment

• Fastener Size: M8-M10

• Housing Material: Glass-filled Nylon (PA6-GF30)

• Lumens: 11
• Max Free Speed (rpm): 2700
• Motor: Brushless Motor

• Number of Batteries Required: 1
• Power Source: Battery Powered
• Product Length (in): 6.42

• Product Weight (lb): 2.35
• Product Weight (lb) (with Battery): 3.26
• Pulses per Minute: 3600
• Recommended Forward Torque Range (ft-lb): 8.9-44
• Recommended Forward Torque Range (in-lb): 106-531
• Recommended Forward Torque Range (nm): 12-60
• Retainer Type: Pin Detent
• Reversible: Reversible

• Sound Pressure/Power Db(A): 94 / 102

• Vibration Level (m/s2): 10.5
• Vibration Uncertainy K* (m/s2): 1.8
• Voltage DC: 20
• Warranty: 1-year Tool, 2-year Battery, 3-year Charger
• Wireless Tool Tracking: Bluetooth
• Wireless Tool Tracking: 802.15.4
• Wireless Tool T
