GG 24W633
RESERVOIR, 4 PINT, 118:1, RH

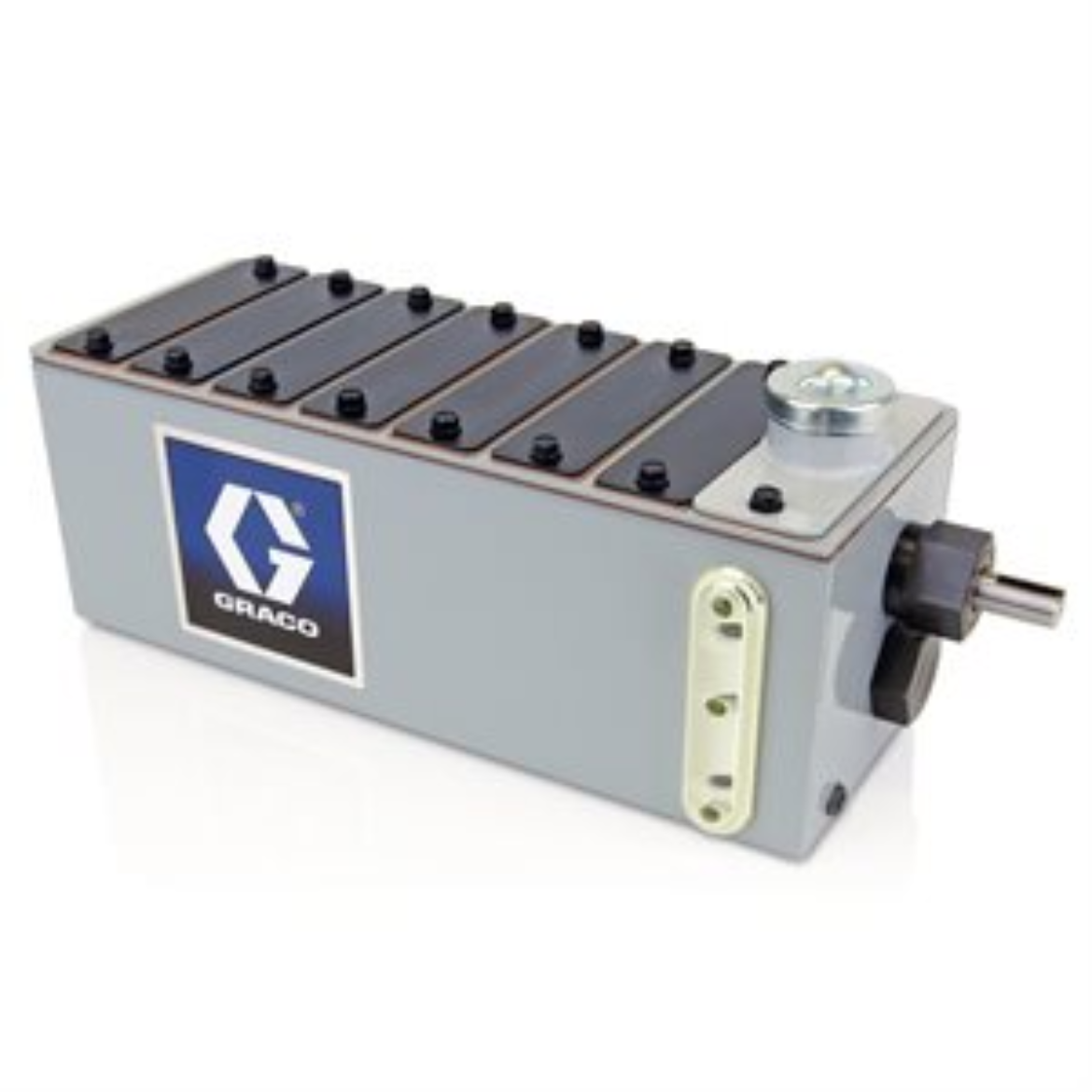

Graco 24W633 Manzel® MB118 Series Lubricator - 4 Pint (1.9 Liter) Reservoir (4 Pump Stations Max), No Pumps Installed, 118:1 drive on right hand end
Graco Manzel box lubricators – when quality and delivery matter! Made with Graco quality for long life and durability, the Manzel MB118 is the right size for triplex and quintuplex mud pump applications.
Application: MB118 is the right size for triplex and quintuplex mud pump applications.
- Provide a proven, cost-effective way to assemble customized oil systems that meet specific requirements by using standard modular components
- Increase opportunities to standardize lube system components and reduce lube maintenance and service costs
- 4 pint (1.9 liter) reservoir (4 pump stations max), no pumps installed, 118:1 drive on RH end
- Drive Location: Right Hand Mount
- Drive Option: Internal Gear Reduction
- Lubricator Gear Ratio: 118:1
- Maximum Drive Speed (RPM): 1800
- Maximum Fluid Viscosity (SUS): 5000
- Maximum Number of Pump Stations: 4
- Maximum Number of Strokes (SPM): 15
- Maximum Operating Temperature (°C): 60
- Maximum Operating Temperature (°F): 140
- Maximum Reservoir Capacity (gal): 0.5
- Maximum Reservoir Capacity (L): 1.9
- Maximum Reservoir Capacity (pt): 4
- Maximum Reservoir Capacity (qt): 2
- Maximum Working Pressure (bar): 517.1
- Maximum Working Pressure (kPa): 51710
- Maximum Working Pressure (psi): 7500
- Minimum Fluid Viscosity (SUS): 80
- Minimum Operating Temperature (°C): -29
- Minimum Operating Temperature (°F): -20
- Overall Depth (cm): 36.2
- Overall Depth (in): 14.25
- Overall Depth (mm): 362
- Overall Width (cm): 13.97
- Overall Width (in): 5.5
- Overall Width (mm): 139.7
