Regulator, Air

GG 110318

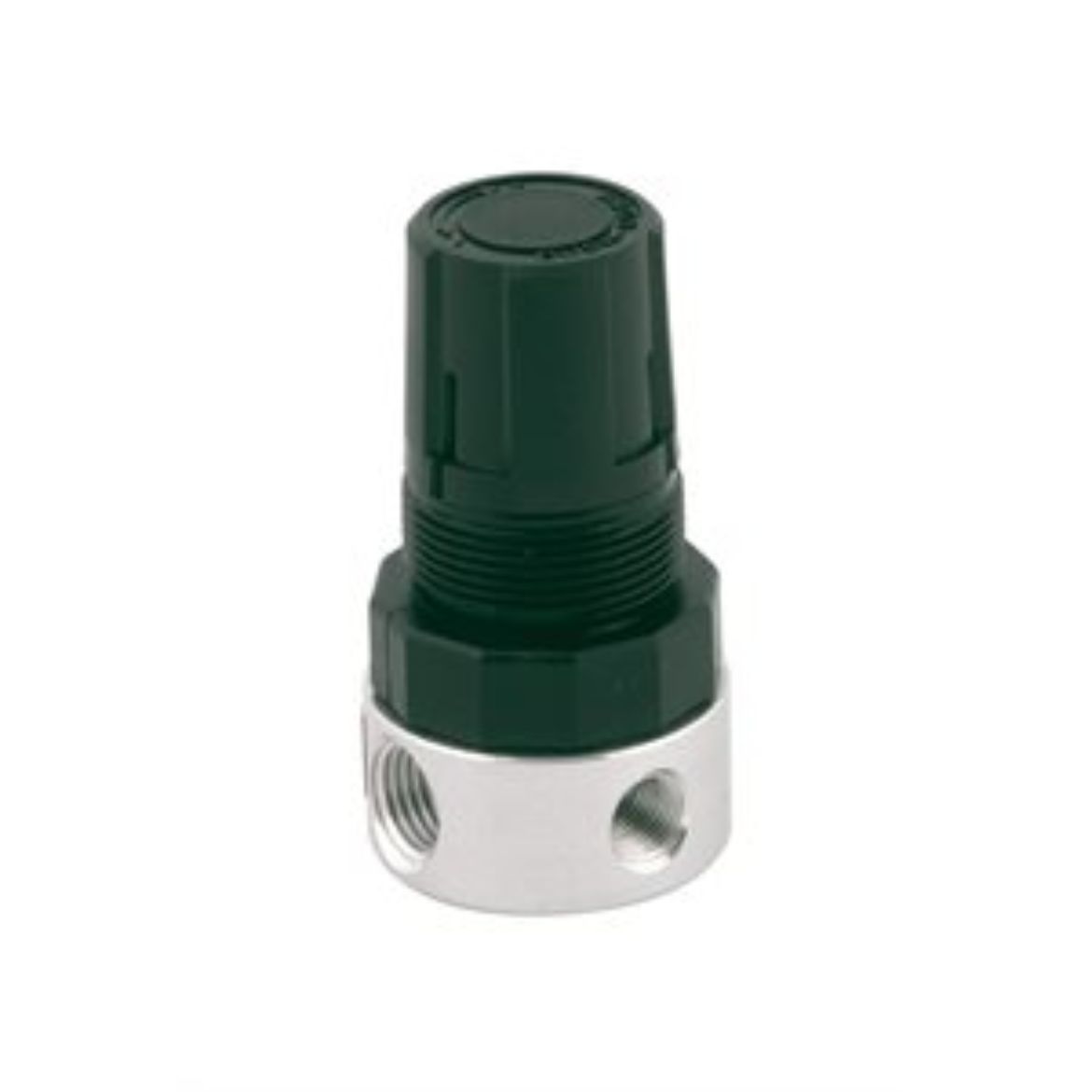

REGULATOR, AIR, 1/4" NPT

Graco 110318 Air Regulator, 1/4(f) inlet/outlet, 0-180 psi (0-12.4 bar), zinc plated

• Multiple outlets for connecting equipment, gauges, or ball valves
• Accurate adjustment of air pressure for process control

• Air Inlet Size (cm): 0.635
• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• For Use With: Mini-Flo, Standard, Fast-Ball
• Gauge Port Size (cm): 0.3175
• Gauge Port Size (in): 1/8
• Gauge Port Size (mm): 3.175

• Gauge Port Type: NPT

• Handle Type: Knob

• Includes: Regulator Only

• Maximum Air Flow Rate (SCFM): 15
• Maximum Air Inlet Pressure (bar): 21
• Maximum Air Inlet Pressure (kPa): 2100
• Maximum Air Inlet Pressure (MPa): 2.1
• Maximum Air Inlet Pressure (psi): 300

• Maximum Operating Temperature (°C): 49
• Maximum Operating Temperature (°F): 120

• Maximum Regulated Pressure (bar): 11
• Maximum Regulated Pressure (kPa): 1100
• Maximum Regulated Pressure (MPa): 1.1
• Maximum Regulated Pressure (psi): 180

• Minimum Operating Temperature (°C): 4
• Minimum Operating Temperature (°F): 40

• Minimum Regulated Pressure (bar): 0
• Minimum Regulated Pressure (kPa): 0
• Minimum Regulated Pressure (psi): 0

• Outlet Size (cm): 0.635
• Outlet Size (in): 1/4
• Outlet Size (mm): 6.35
• Outlet Thread Gender: Female
• Outlet Thread Type: NPT
