Reactor Proportioner, A-25, Wheels, and Datatrak

GG 262614

REACTOR A-25 PROPORTIONER, WHEELS, CYCLE COUNT

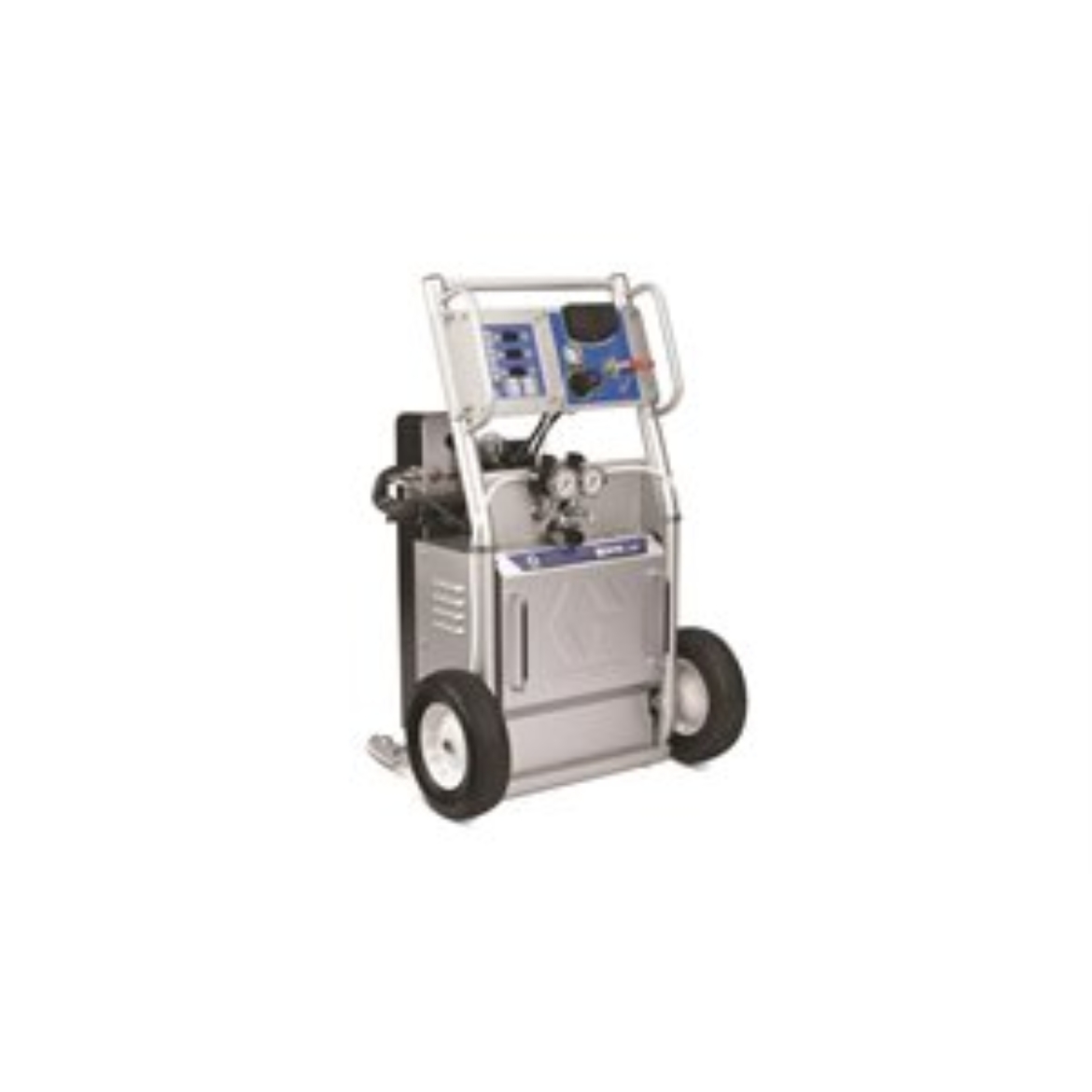

Graco 262614 Reactor A-25 Proportioner with Wheels, DataTrak

The Reactor A-25 is a Graco-engineered spray foam proportioner that gives you the reliability you expect on the jobsite. It maintains consistent temperature control, even when youre spraying at maximum flow rates - resulting in better quality foam.

• Maintains temperature setpoints for better yield
• Maintains consistent output pressure for uniform spray pattern
• Easy-to-service fluid section reduces maintenance and increases productivity
• DataTrak Control

  Resettable counter tracks material usage

• Three Heat Zones

  Three independent heat zones - ISO, resin and hose heat

  Provide accurate heat control for reliable spraying to handle different chemical viscosities

  Digital temperature controls

  • Recirculation Manifold

    A quick, easy way to balance system pressures

  • NXT Air Motor

    Low air consumption for increased efficiency

    Muffler provides low operating noise levels

    Air valve provides smooth and rapid changeover

    • Quick Knockdown Lower Pumps

      For easy disassembly and maintenance

    • ISO Pump Lube System

      Prevents isocyanate crystallization on the pump seal and shaft

    • ISO Pump Lube System

      Prevents isocyanate crystallization on the pump seal and shaft




    • Model: Reactor
    • Series: A-25
    • Air Inlet Size (cm): 1.27
    • Air Inlet Size (in): 1/2
    • Air Inlet Size (mm): 12.7
    • Air Inlet Thread Gender: Female
    • Air Inlet Thread Type: NPT
    • Amperage (A): 18.5 @ 380 V ac (3-Phase WYE), 32 @ 230 V ac (3-Phase Delta), 40 @ 230 V ac (1-Phase)
    • Application: Spray Foam
    • Applicator Type: Manual
    • Compatible Material: Plural Components
    • Component A Inlet Size (in): 3/4
    • Component A Inlet Size (mm): 19.05
    • Component A Thread Gender: Female
    • Component A Thread Type: NPT
    • Component B Inlet Size (in): 3/4
    • Component B Inlet Size (mm): 19.05
    • Component B Thread Gender: Female
    • Component B Thread Type: NPT
    • Component Type: Two Component
    • Flush Type: Solvent
    • Frequency (Hz): 50/60
    • Gun Type: No Gun
    • Includes: Proportioner, Heated Hose, Wheels, DataTrak
    • Material Application: Polyurethane Foam
    • Maximum Air Consumption (SCFM): 28 scfm at 1500 psi
    • Maximum Air Inlet Pressure (bar): 8.62
    • Maximum Air Inlet Pressure (kPa): 862
    • Maximum Air Inlet Pressure (MPa): 0.86
    • Maximum Air Inlet Pressure (psi): 125
    • Maximum Flow Rate (kg/min): 11.34
    • Maximum Flow Rate (lb/min): 25
    • Maximum Fluid Temperature ( degree C): 88
    • Maximum Fluid Temperature ( degree F): 190
    • Maximum Fluid Viscosity (cP): 1500
    • Maximum Fluid Temperature ( degree C): 88
    • Maximum Fluid Temperature ( degree F): 190
    • Maximum Fluid Viscosity (cP): 1500
    • Maximum Hose Length (ft): 210
    • Maximum Hose Length (m): 64
    • Maximum Mix Ratio: 1:1
    • Maximum Working Pressure (bar): 138
    • Maximum Working
