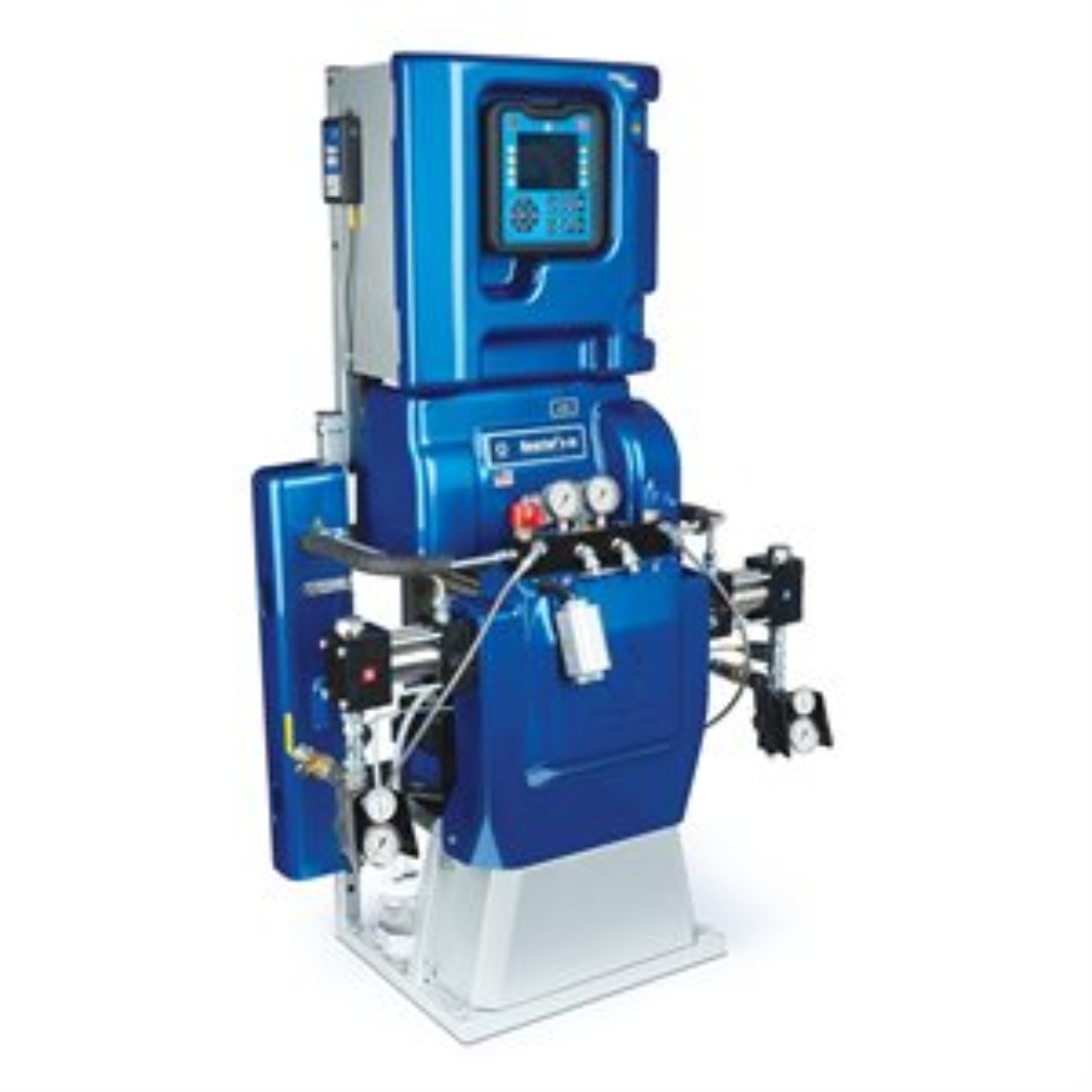

Reactor 2 H-40 Elite Proportioner Package, Fusion AP Gun, 20 KW, 230V, 3PH, 6 Heated Hoses with Wrap

GG AHH144

REACTOR 2 H-40 SYSTEM, 230V, 20KW, ELITE, AP

Graco AHH144 Reactor 2 H-40 Elite Proportioner Package, Fusion AP Gun, (6) Heated Hoses with Xtreme-Wrap, 20 kW, 230 V, 3PH

Gracos hydraulic Reactor H-40 brings increased yield and high output spraying. Ideal for in-plant OEMs or applicators that spray at high volumes.

• What a hydraulic system can do for you:


  Dependability - robust, durable, longest life spray system

  Reduce downtime - allows for longer time in between required maintenance

  Increase daily productivity - capable of extremely high duty cycle

• Reactor Connect : Communication and Control at your Fingertips


  Control your Reactor using your phone

  Improve productivity and yield by optimizing spray parameters and never having to go back to your rig

  Monitor your rigs/crews using the multi-system dashboard

  Troubleshoot an issue quickly using real-time data

  Provide documentation to a customer

  Use reports to better manage your business

  Saves all your spray data to the cloud

  Utilize account management to better manage your equipment and crews

  Reactor Connect comes standard with all Reactor 2 model

• Advanced control technology


  Tracks, monitors and saves project data

  Data can be saved and downloaded onto a USB drive

  Stores up to 24 chemical recipes

  Drum level indicators

• Sacrificial surge protector


  Protects your electronics against excessive power spikes

• Three-year warranty


  Covers user display and control modules

  One of the best in the industry

• Model: Reactor 2
• Series: H-40
• Product Series: Elite

• Amperage (A): 95
• Application: Spray Foam
• Applicator Type: Manual

• Compatible Material: Plural Components

• Component Type: Two Component

• Flush Type: Solvent

• Frequency (Hz): 50/60

• Gun Type: Fusion AP

• Hose Length (ft): 50, 10
• Hose Length (m): 15.2, 3

• Hose Package: Multi-Hose
• Includes: Proportioner, Fusion AP Gun, Heated Hose with Scuff Guard, Heated Whip Hose, Graco Insite, Fluid Inlet Sensors

• Material Application: Polyurethane Foam

• Maximum Flow Rate (kg/min): 20.41
• Maximum Flow Rate (lb/min): 45

• Maximum Fluid Temperature ( degree C): 88
• Maximum Fluid Temperature ( degree F): 190

• Maximum Fluid Temperature ( degree C): 88
• Maximum Fluid Temperature ( degree F): 190

• Maximum Mix Ratio: 1:1

• Overall Depth (cm): 53
• Overall Depth (in): 20.88
• Overall Depth (mm): 530

• Overall Height (cm): 160.8
• Overall Height (in): 63.3
• Overall Height (mm): 1608
• Overall Width (cm): 83.7
• Overall Width (in): 32.96
• Overall Width (mm): 837

• Phase: 3

• Power Rating (HP): 26.82
• Power Rating (kW): 20
• Power Rating (W): 20000
• Power Source: Hydraulic

• Pressure Type: High Pressure
• Product Type: Plural Component
