GG LTX227
RAC X LTX TIP, SPRAY, (227)

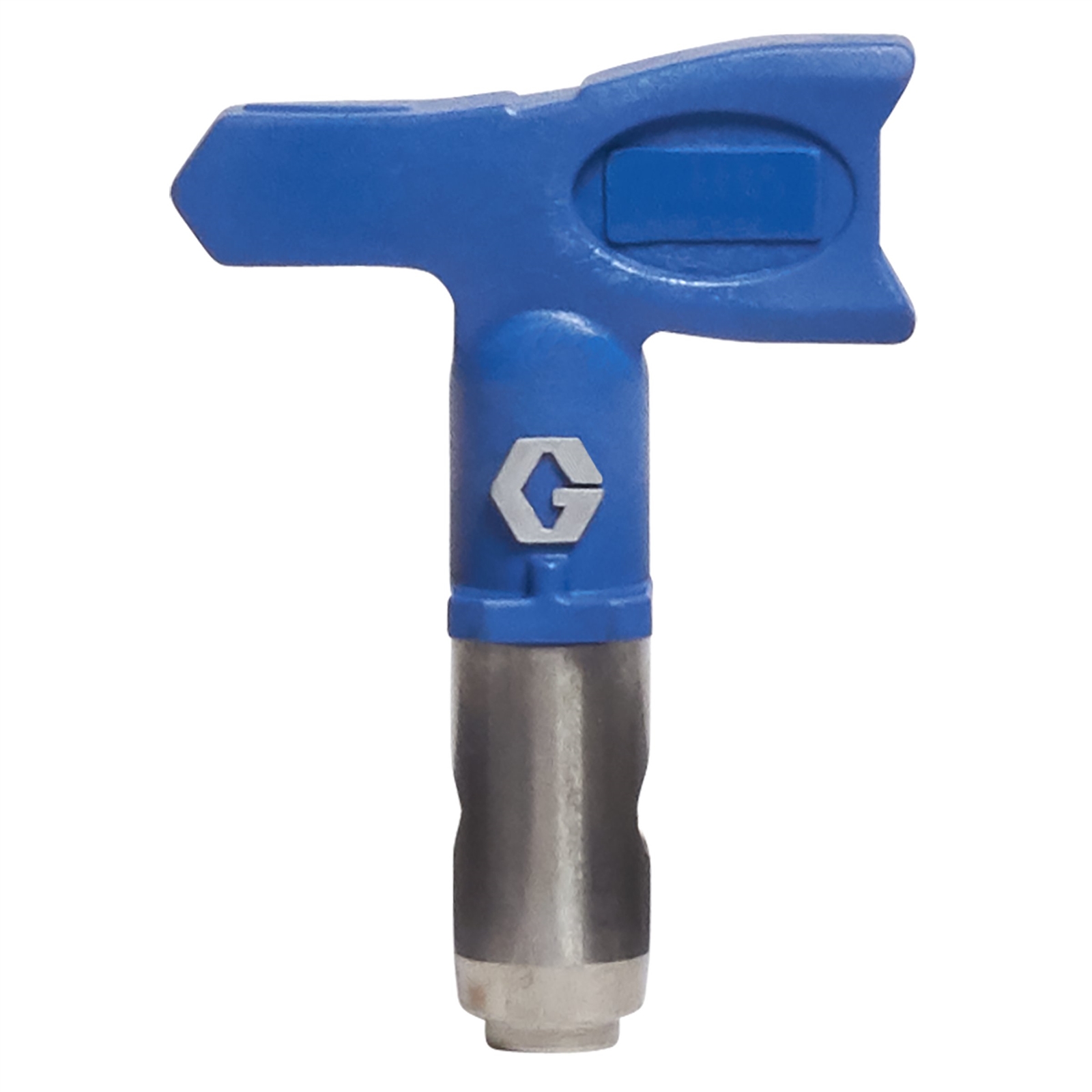

Graco LTX227 RAC X SwitchTip, 227
The Reverse-A-Clean (RAC) 227 RAC X SwitchTip is designed for narrower surfaces and thicker materials. The 227 SwitchTip has a 0.027 inch orifice and produces a 4 to 6 inch fan. Reverse the SwitchTip to easily clear clogs.
Application: Used for residential, commercial or industrial applications.
- Best Tip on the Market
- Longest lasting fan pattern
- Highest quality finish with a consistent spray pattern
- Easy to Identify Tip Size
- Large raised tip size numbers are always legible - even when covered with paint
- Superior Tip Design
- Locking tab ensures tip stays securely in guard
- Snaps tip in spray or reverse position
- OneSeal tip gasket installs with no tools
- Solvent seal available when using extremely hot solvents
- Model: RAC X
- Series: LTX SwitchTip
- Compatible Material: Lacquer to Mastic, Latex Paint
- For Use With: RAC X HandTite Tip Guard
- Maximum Fan Width (cm): 10
- Maximum Fan Width (in): 4
- Maximum Fan Width (mm): 152
- Maximum Flow Rate (GPM): 0.77
- Maximum Flow Rate (L/min): 2.91
- Maximum Working Pressure (bar): 280
- Maximum Working Pressure (kPa): 28000
- Maximum Working Pressure (psi): 4050
- Minimum Fan Width (in): 4
- Minimum Fan Width (mm): 102
- Orifice Diameter (in): 0.027
- Pattern Size (in): 4 to 6
- Pattern Size (mm): 101.6 to 152.4
