GG 286533
RAC 5 TIP, SPRAY

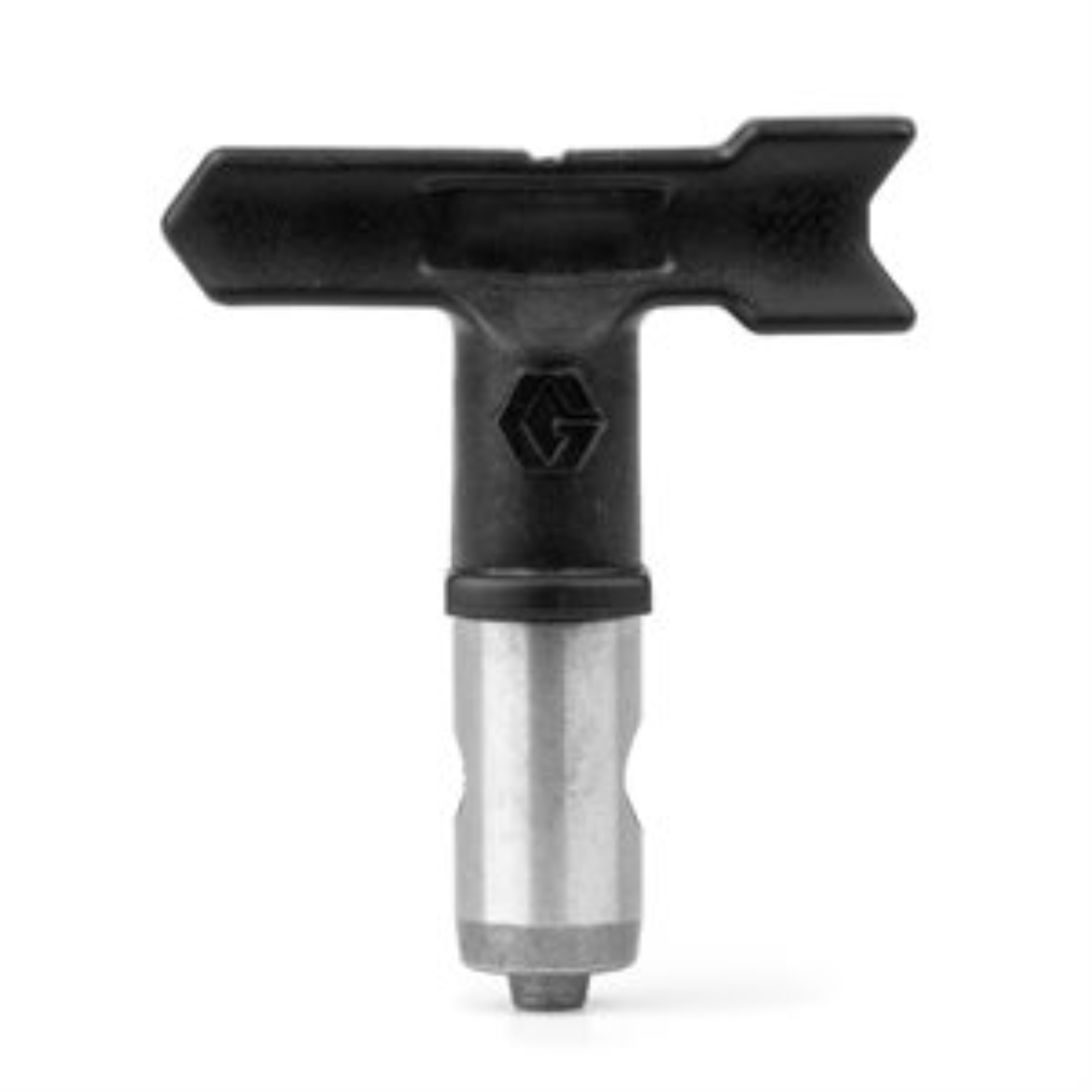

Graco 286533 RAC 5 SwitchTip, 533
The Reverse-A-Clean (RAC) 533 RAC 5 SwitchTip produces a 10 to 12 inch fan and has a 0.033 inch orifice. Reverse the SwitchTip to easily clear clogs.
- Most Widely Used Reversible Spray Tip on the Market (Black Handle)
Used for residential and commercial applications
Includes OneSeal for most common coatings
Large selection of tip sizes available
Easy to identify laser stamped tip size
Solvent seal available when using extremely hot solvents
- Model: RAC 5
- Series: SwitchTip
- Compatible Material: Lacquer to Mastic, Latex Paint
- For Use With: RAC 5 HandTite Tip Guard
- Maximum Fan Width (cm): 30.5
- Maximum Fan Width (in): 10
- Maximum Fan Width (mm): 305
- Maximum Flow Rate (GPM): 1.17
- Maximum Flow Rate (L/min): 4.43
- Maximum Working Pressure (bar): 280
- Maximum Working Pressure (kPa): 28000
- Maximum Working Pressure (psi): 4050
- Minimum Fan Width (in): 10
- Minimum Fan Width (mm): 254
- Orifice Diameter (in): 0.033
- Pattern Size (in): 10 to 12
- Pattern Size (mm): 254 to 304.8
