QXM 40V Truck Tool Bluetooth 1000Nm Trk Arm Socket

IR QXXD5PT01KPW16

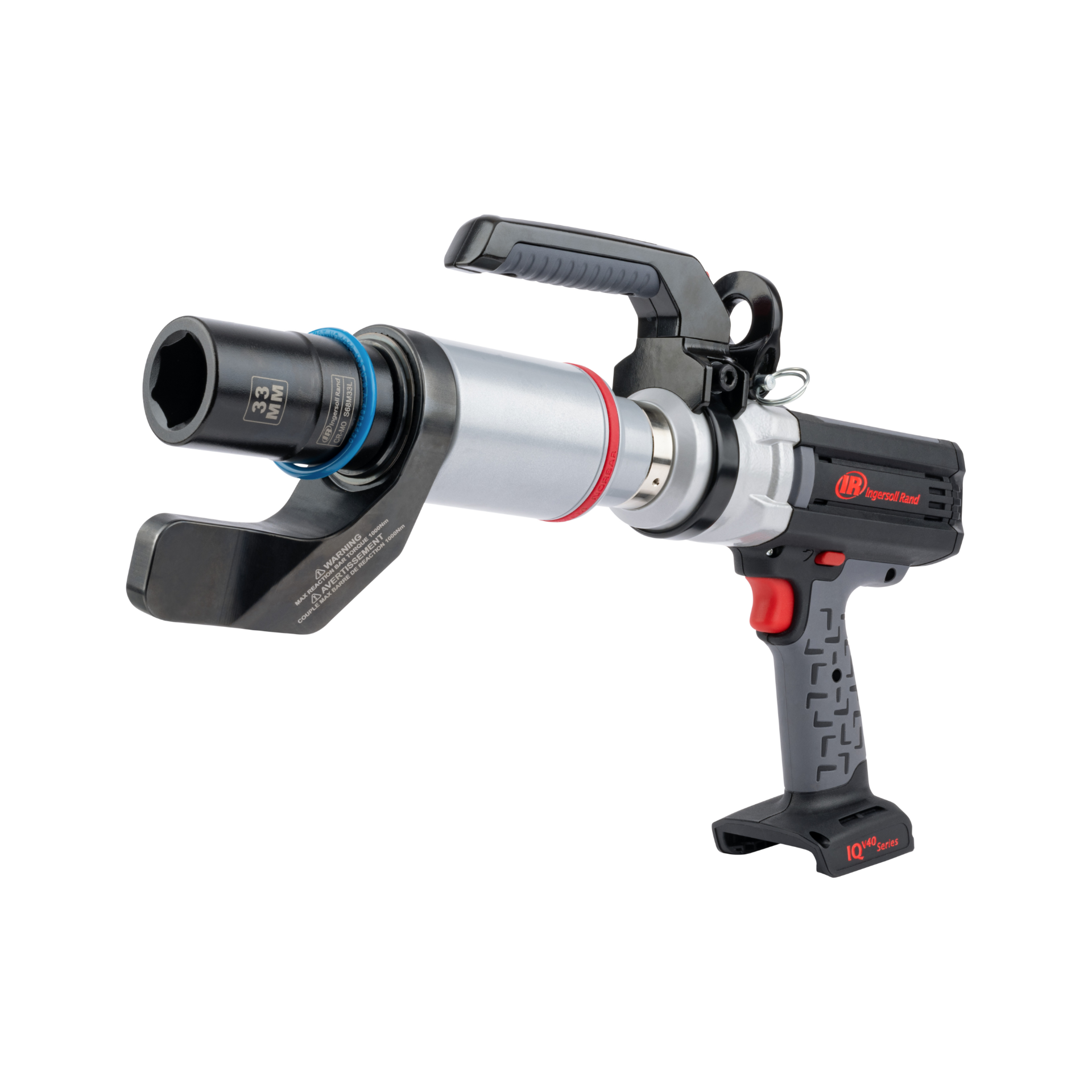

1" 40V Cordless Torque Wrench, Bare Tool, 8851 in-lb Torque, Bluetooth/802.15.4, Pistol

Description: The Ingersoll Rand QX Series 40V Cordless Torque Multiplier is built with one vital industry in mind: Heavy trucking and transportation. With a custom reaction arm optimized for commercial truck tires, programmable torque up to 750 ft-lbs, and torque recording that helps you maintain real-time records of service and proof of performance, the QX Series 40V Cordless Torque Multiplier helps increase efficiency, safety, and power on the shop floor. Even when the job is tough, our tools are tougher.

Features And Benefits:

• Power: The brushless motor and premium Norbar gearbox provide up to 750 ft-lbs of torque.
• Accuracy and Efficiency: Digitally traceable tightening provides consistent, reliable torque within 5% accuracy and reduces the need for manual torqueing and torque wrench confirmation.
• Connectivity: Real-time digital torque recording automatically generates a record of service via Wi-Fi or Bluetooth Access via the Ingersoll Rand INSIGHT Connect Mobile App whenever you need it.
• Comfort: Reaction arm crafted specifically for truck tires and an articulating top handle that moves two axes allows for mounting and maneuvering in almost any configuration.
• Durability: Chemical resistant housing reinforced with an IP5X rating for increased protection in harsh environments. Backed by a 1-year warranty and rigorously tested to ensure peak performance during tough jobs.
• Also available in the QXXD5PT01KPW16K2 kit which includes the QXXD5PT01KPW16 Torque Wrench, (2) 40V 2.5 Ah BL4011 Batteries, BC1161 40V Universal Charger, 33mm socket and retainer.

Product Application and Uses:

Designed for the heavy trucking and transportation industry in applications requiring precise torque control, accuracy, consistency and repeatability and are recommended for tightening requirements.

• Includes: 33mm socket and retainer. Bare tool only, batteries and charger sold separately or with other kits.
• Actuation/Throttle Type/Switch Type: Trigger
• Anvil Length: Standard

• Built-in Light: Yes

• Clutch Type: None
• Color: Grey
• Configuration/Handle Type: Pistol Grip
• Data Storage Capacity: 1200 cycles
• Drive Size (in): 1
• Drive Type: Square
• Duty Rating: Heavy Duty

• Gearbox Width (in): 2.8

• Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame

• Max Free Speed (rpm): 15
• Max Torque (ft-lb): 738
• Max Torque (in-lb): 8851
• Max Torque (nm): 1000
• Motor: Brushless Motor

• Number of Batteries Required: 1
• Power Source: Battery Powered
• Product Length (in): 16.5

• Product Weight (lb): 20
• Product Weight (lb) (with Battery): 21.5
• Reaction Bar: Yes
• Recommended Forward Torque Range (ft-lb): 148-738
• Recommended Forward Torque Range (in-lb): 1770-8851
• Recommended Forward Torque Range (nm): 200 - 1000
• Retainer Type: Thru-hole
• Reversible: Reversible

• Speed Setting: Variable Speed
• Standards/Certifications: UL/CSA/CE/IP5X

• Tether Style: Tether Included
• User Interface: Display
• Voltage DC: 40
• Warranty: 1-year Tool, 2-year Battery, 3-year Charger
• Wireless Tool Tracking: Bluetooth
• Wireless Tool Tracking: 802.15.4

• Accessories: BC1161
• Accessories: BL4011
