Pump, President, 4:1

GG 223183

PRESIDENT PUMP, 4:1

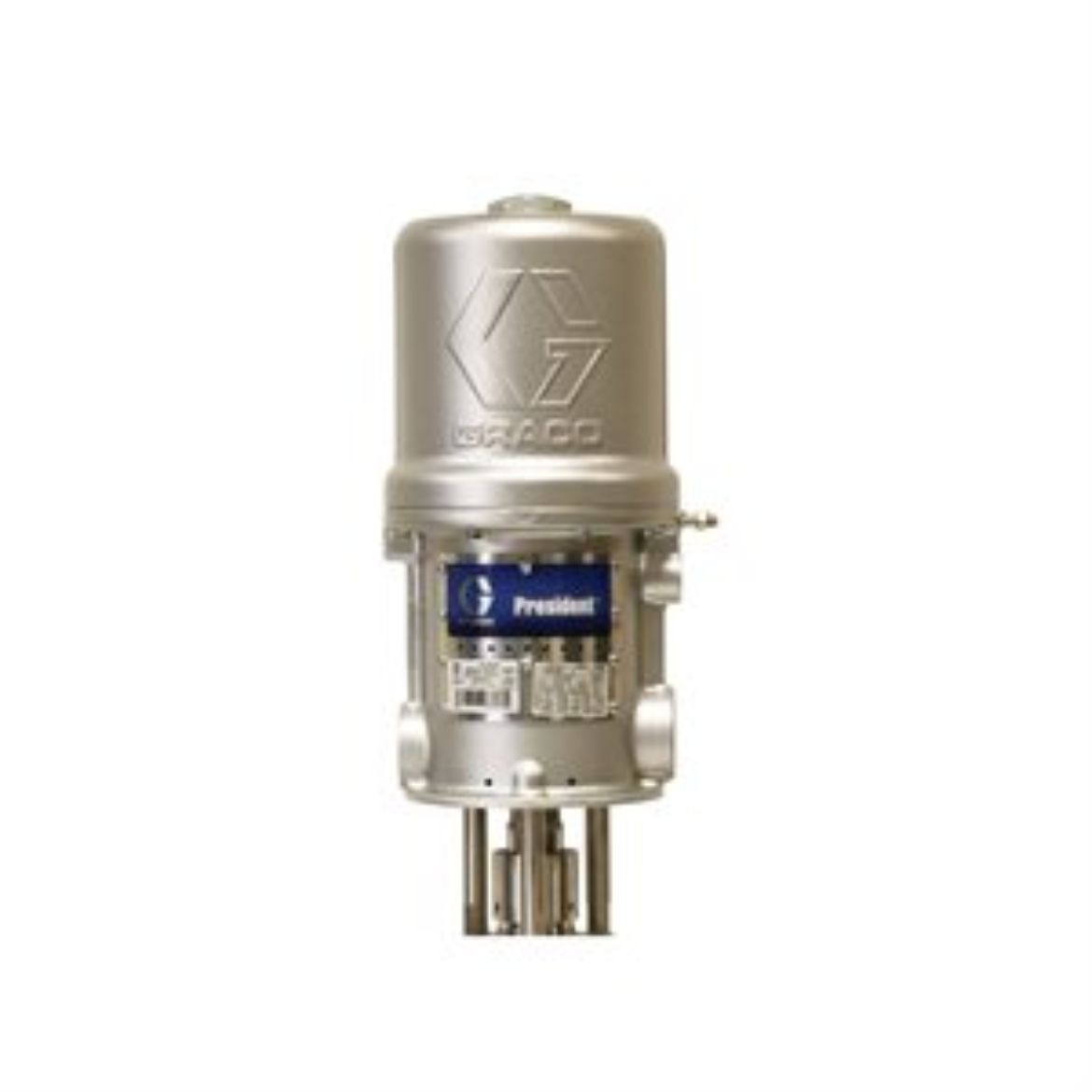

Graco 223183 President 4:1 Pneumatic 2-Ball Piston Pump, CS, Drum Length

2-ball pneumatic piston pumps for a wide range of applications.

• Reliable President air motor designed for low maintenance operation and long life
• Positive displacement, 2-ball piston design provides uniform and easily controlled delivery
• Stainless steel or carbon steel models available to handle various fluids, including catalyzed materials

• Model: President
• Series: 2-Ball

• Air Inlet Size (in): 3/8
• Air Inlet Size (mm): 9.525
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Supply

• Compatible Material: Waterborne, Solvent borne, High Solids, Xirallic, CARC, Metallics, Topcoats, Stains, Varnish

• Fluid Outlet Size (in): 1
• Fluid Outlet Size (mm): 25.4
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT
• Fluid Section Type: 2-Ball

• Includes: Drum Length

• Material: Carbon Steel

• Maximum Air Inlet Pressure (bar): 6.9
• Maximum Air Inlet Pressure (kPa): 690
• Maximum Air Inlet Pressure (psi): 100

• Maximum Continuous Cycle Rate (CPM): 60

• Maximum Flow Rate (GPM): 8
• Maximum Flow Rate (L/min): 30.28

• Maximum Operating Temperature (°C): 82
• Maximum Operating Temperature (°F): 180

• Maximum Working Pressure (bar): 25
• Maximum Working Pressure (kPa): 2500
• Maximum Working Pressure (MPa): 2.5
• Maximum Working Pressure (psi): 360

• Portable: Non-Portable

• Pump Ratio: 4:1
