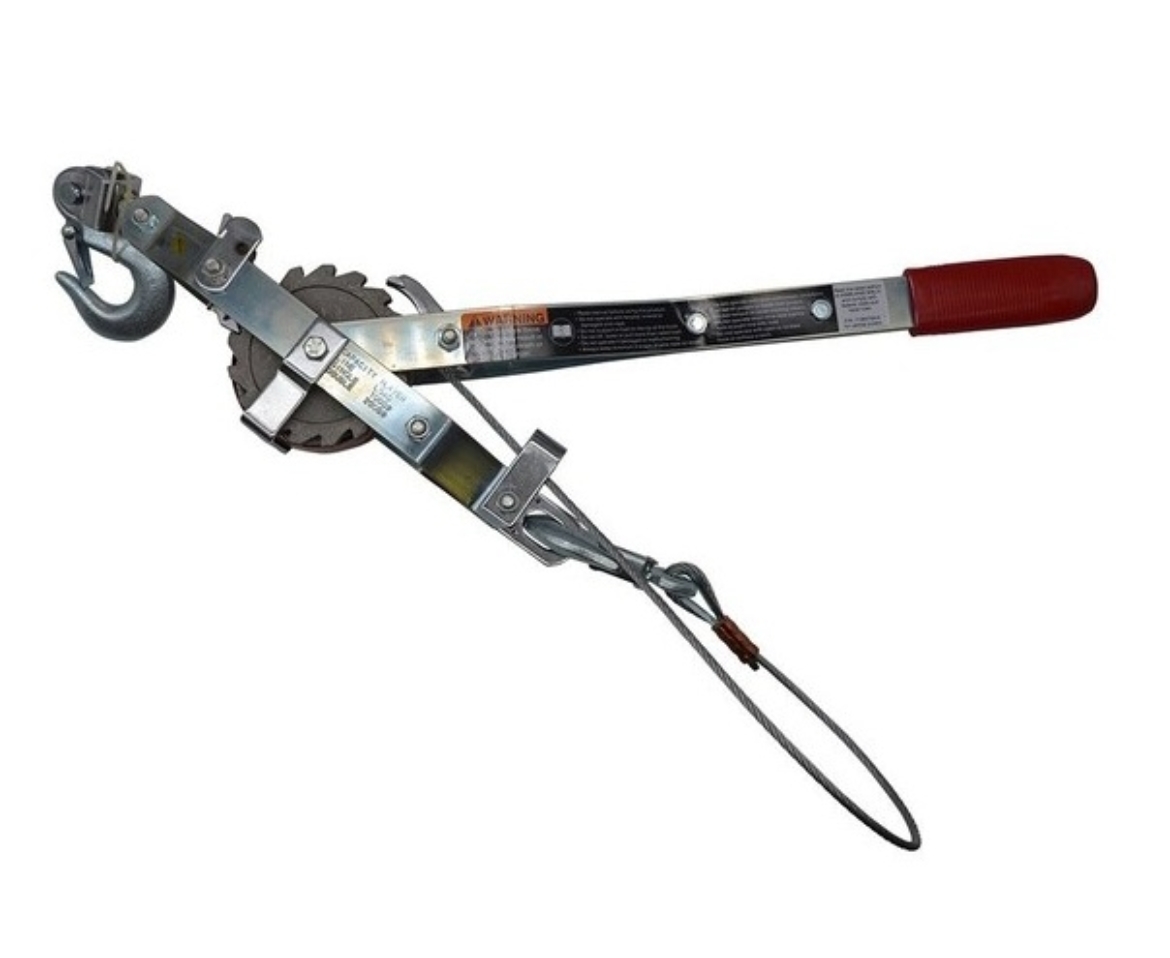

Puller, Steel Ratchet

IR P15D3H

Ratchet Puller, 1 Ton Capacity, 7.5ft Lift

Extremely strong and well made, the Ingersoll Rand P-Series pullers are high quality, dependable wire rope pullers for low- and medium-duty pulling and lifting jobs.

Includes:

Product Application/Uses:

Features and Benefits:

• 4:1 design factor. Meets Specifications
• Handle and frame are heavy gauge steel with rivet construction and slip-resistant grip. All steel parts are plated for years of useful life.
• Exclusive long-life 'buttress tooth' cast gear design has no laminated plates to separate or wear and provides maximum strength.
• Sturdy steel drive and holding pawls have long life and stainless steel springs. All pivot points are hardened steel.
• Safety latch hooks are drop-forged steel, heat treated and plated for corrosion resistance. Top hook rotates 360 degree for easy operation.
• Galvanized aircraft quality wire rope is pre-formed to prevent kinks.
• Cast aluminum drum has through the drum anchor, larger diameter, and drum guard.

Capacity (lb): 2000

Lift (ft): 7.5
