Proximity Switch, 3/4-16, 8000psi (551.6 bar)

GG 17L880

SWITCH, PROXIMITY ADAPTER, 3/4-16

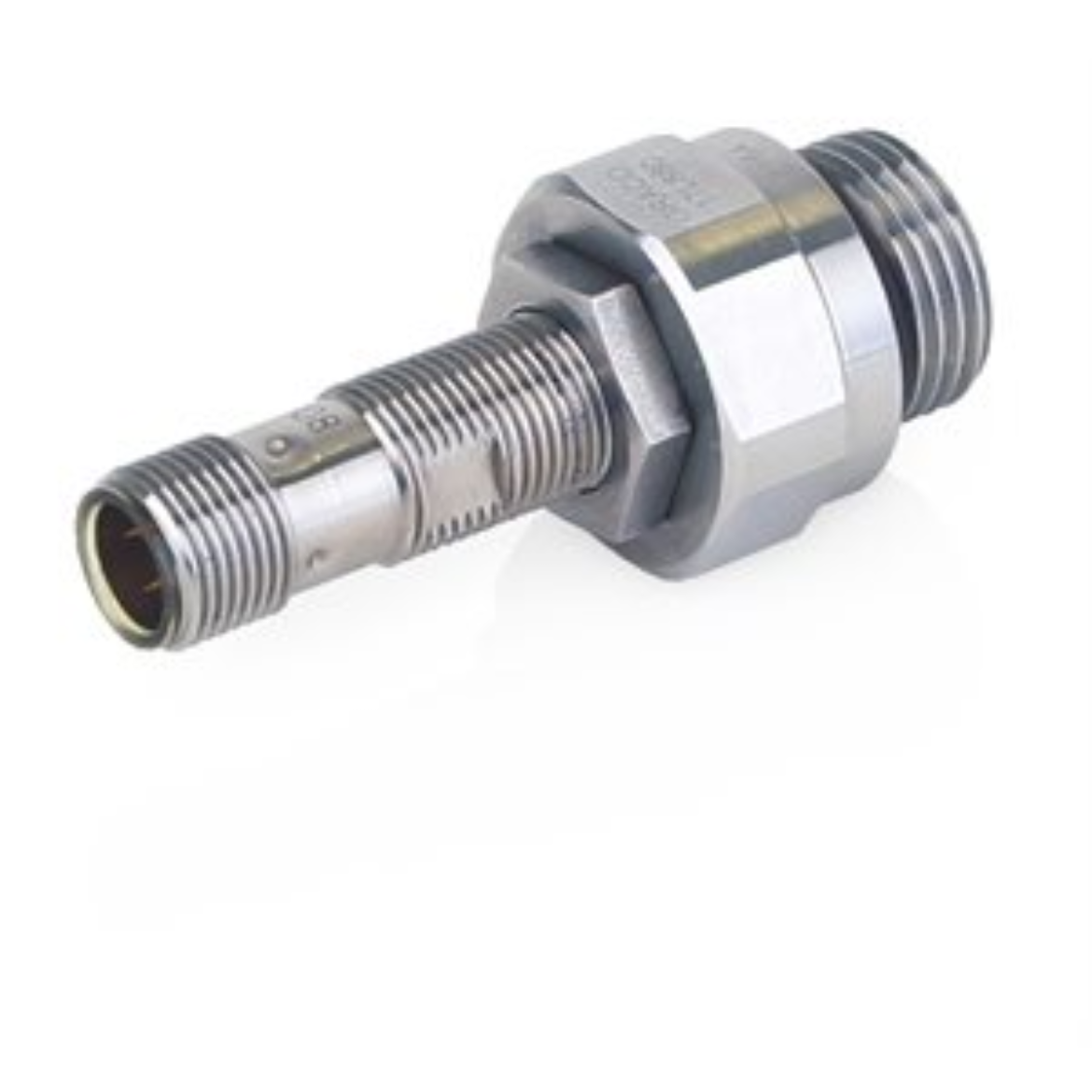

Graco 17L880 Proximity Switch, 3/4-16, 8000 psi (551.6 bar)

Magnetically-operated sensing devices for sending system data to the controller or PLC.

• Available in 115 VAC or 12-32 VDC
• Available for all series progressive families to provide cycle rates up to 200 CPM
• Pressure ratings up to 10,000 psi (690 bar)
• Select models available with UL and CSA approvals

• Model: Trabon

• Application: In-Plant Machinery

• Compatible Material: Oil, Grease

• Material: PBT (Pocan), PC (Makrolon), FPM, Stainless Steel

• Maximum Voltage (V dc): 32

• Maximum Working Pressure (bar): 551.6
• Maximum Working Pressure (kPa): 55160
• Maximum Working Pressure (MPa): 55.2
• Maximum Working Pressure (psi): 8000

• Minimum Voltage (V dc): 9.6

• Power Connection Type: M12
