GG 24Z013
PROMIX 2KE PROPORTIONER, METER, ACID

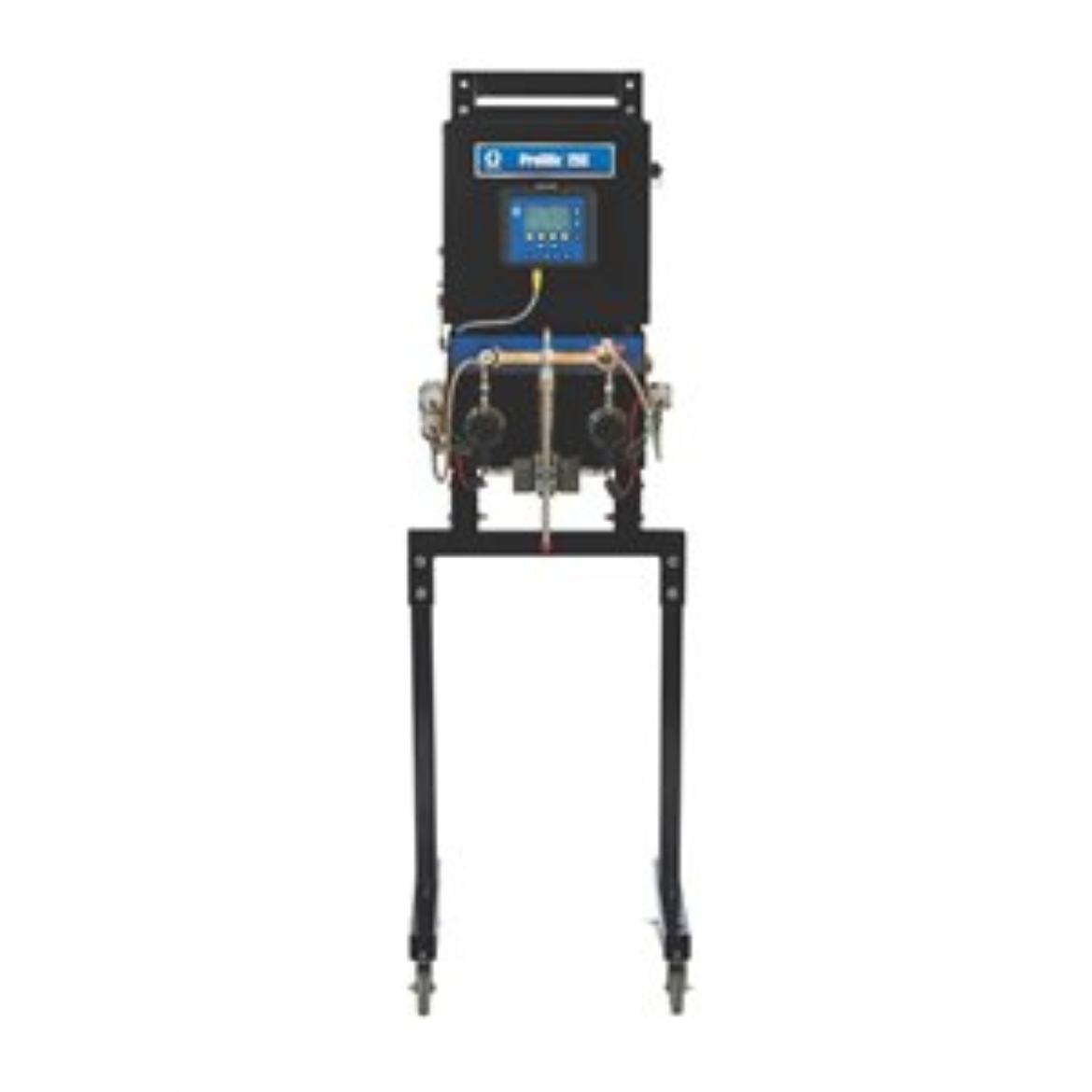

Graco 24Z013 ProMix 2KE Acid Catalyst Meter, 1 color/1 catalyst, IS, intrinsically safe alternator power
The ProMix 2KE meter-based system manages tough acid catalyst materials, such as conversion varnish for cabinetry and bar counter tops. The compact, entry-level proportioner easily handles strong acid catalysts with its corrosion resistant fluid section and smart fluid plate.
- Made with durable, high grade, stainless steel components like gears with ceramic bearings, the G3000A meter gauges the exact mix ratio while withstanding corrosion.
- Choose between pump-based or meter-based plural component systems with mix ratios up to 30:1
- Stay on ratio within predefined tolerance limits, down to ±2% with the pump version, ±1% with meter
- Easy-to-use LCD display allows you to track material usage, display mix ratio, program maintenance reminders operate, control operation functions and more
- Air Inlet Size (cm): 0.9525
- Air Inlet Size (in): 3/8
- Air Inlet Size (mm): 9.525
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPT
- Component Type: Two Component
- Includes: 2KE Meter-Based Proportioner, G3000 (A), G3000A (B), 1 Color, 1 Catalyst, Intrinsically Safe Alternator Power
- Material Type: Two Component
- Maximum Air Inlet Pressure (bar): 6.9
- Maximum Air Inlet Pressure (kPa): 690
- Maximum Air Inlet Pressure (psi): 100
- Maximum Fluid Viscosity (cP): 5000
- Maximum Fluid Viscosity (cP): 5000
- Maximum Number of Colors: Up to 3
- Maximum Working Pressure (bar): 206.8
- Maximum Working Pressure (kPa): 20680
- Maximum Working Pressure (MPa): 20.7
- Maximum Working Pressure (psi): 3000
- Measuring Type: Meter
- Minimum Fluid Viscosity (cP): 20
- Minimum Mix Ratio: 0.1:1
- Number of Catalysts: 1
- Number of Color Valves: N/A
- Number of Colors: 1
- Number of Resin Colors: 1
- Proportioning Type: Manual Electronic
