PROMIX 3KS PROPORTIONER, G3000 METER SINGLE COLOR

GG TK1000

PROMIX 3KS PROPORTIONER

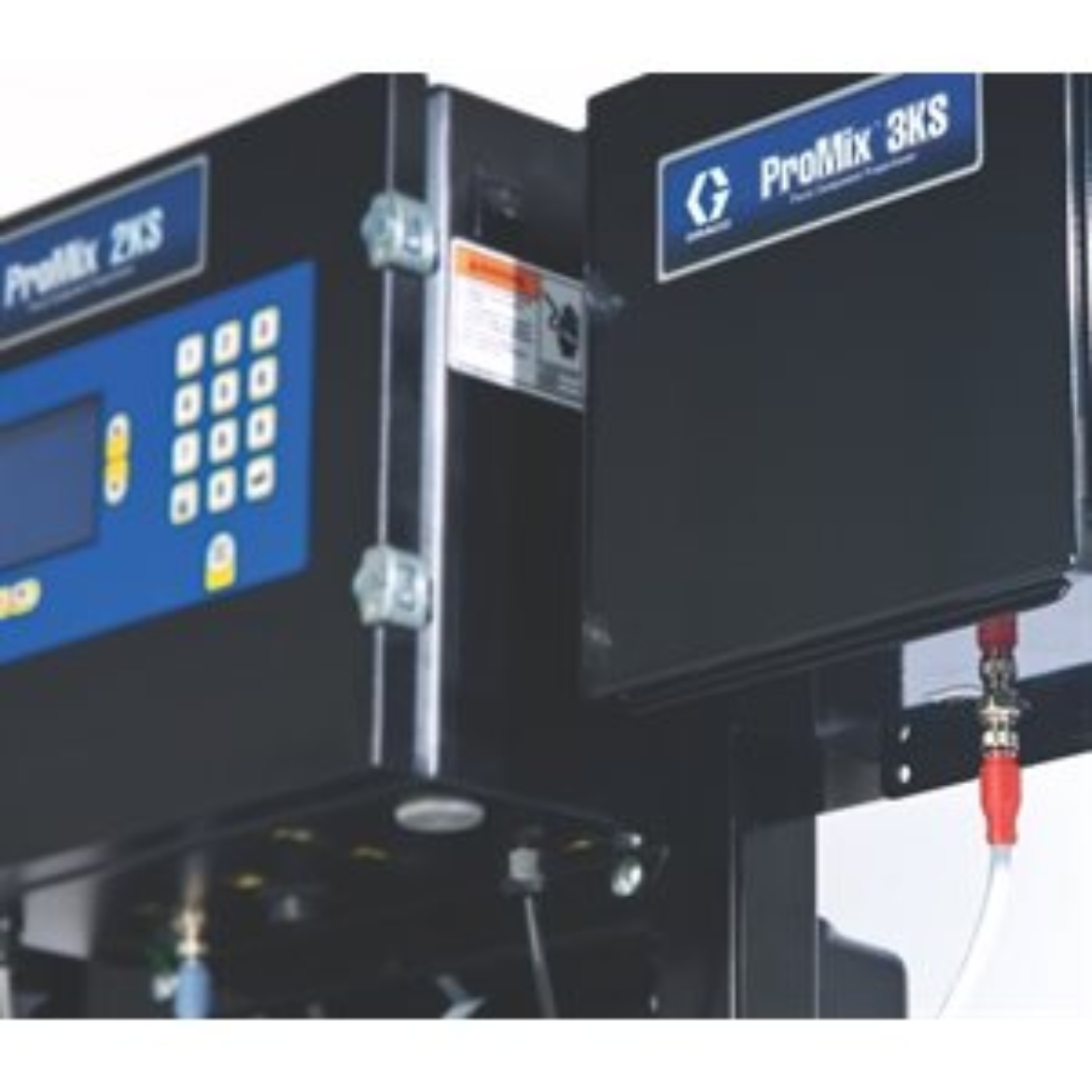

Graco TK1000 ProMix 3KS Proportioner, G3000 Meter, Single Color

ProMix 3KS offers precision mixing of a broad range of three component materials, even tough acid catalysts. It accurately reduces your material to the correct spray viscosity as conditions change with the highest degree of ratio assurance for superior quality on both manual and automatic applications. Efficient tracking and reporting along with effective color changes reduces wasted material.

• Purchase with a ProMix 2KS system or upgrade an existing 2KS system
• Advanced web interface provides consolidated system management and reporting
• Intrinsically safe fluid panels easily integrate into hazardous areas

• Model: ProMix
• Series: 3KS

• Air Inlet Size (cm): 0.9525
• Air Inlet Size (in): 3/8
• Air Inlet Size (mm): 9.525
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Amperage (A): 2

• Component Type: Three Component

• Fluid Inlet Size (cm): 0.635
• Fluid Inlet Size (in): 1/4
• Fluid Inlet Size (mm): 6.35
• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (cm): 0.635
• Fluid Outlet Size (in): 1/4
• Fluid Outlet Size (mm): 6.35
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT
• Flush Type: Air/Solvent

• Frequency (Hz): 50/60

• Gun Activation: Manual

• Material Type: Three Component

• Maximum Flow Rate (cc/min): 3790

• Maximum Flow Rate (GPM): 1
• Maximum Flow Rate (L/min): 3.79

• Maximum Fluid Viscosity (cP): 3000

• Maximum Fluid Viscosity (cP): 3000

• Maximum Mix Ratio: 50:1
• Maximum Number of Colors: Up to 25

• Maximum Operating Temperature ( degree C): 50
• Maximum Operating Temperature ( degree F): 122

• Maximum Working Pressure (bar): 276
• Maximum Working Pressure (kPa): 27600
• Maximum Working Pressure (MPa): 27.6
• Maximum Working Pressure (psi): 4000
• Measuring Type: Meter
• Meter Type: G3000

• Minimum Flow Rate (cc/min): 75
• Minimum Flow Rate (GPM): 0.02
• Minimum Flow Rate (L/min): 0.075

• Minimum Fluid Viscosity (cP): 20
• Minimum Mix Ratio: 0.1:1

• Mix Accuracy (%): 1

• Number of Catalysts: 4
• Number of Color Valves: No Valves
• Number of Colors: 1

• Number of Reducers: 4

• Number of Resin Colors: 1

• Power Source: Electric

• Proportioning Type: Manual Electronic, Automatic Electronic
