GG 25B298
KIT, PROCONTROL 1KE PLUS

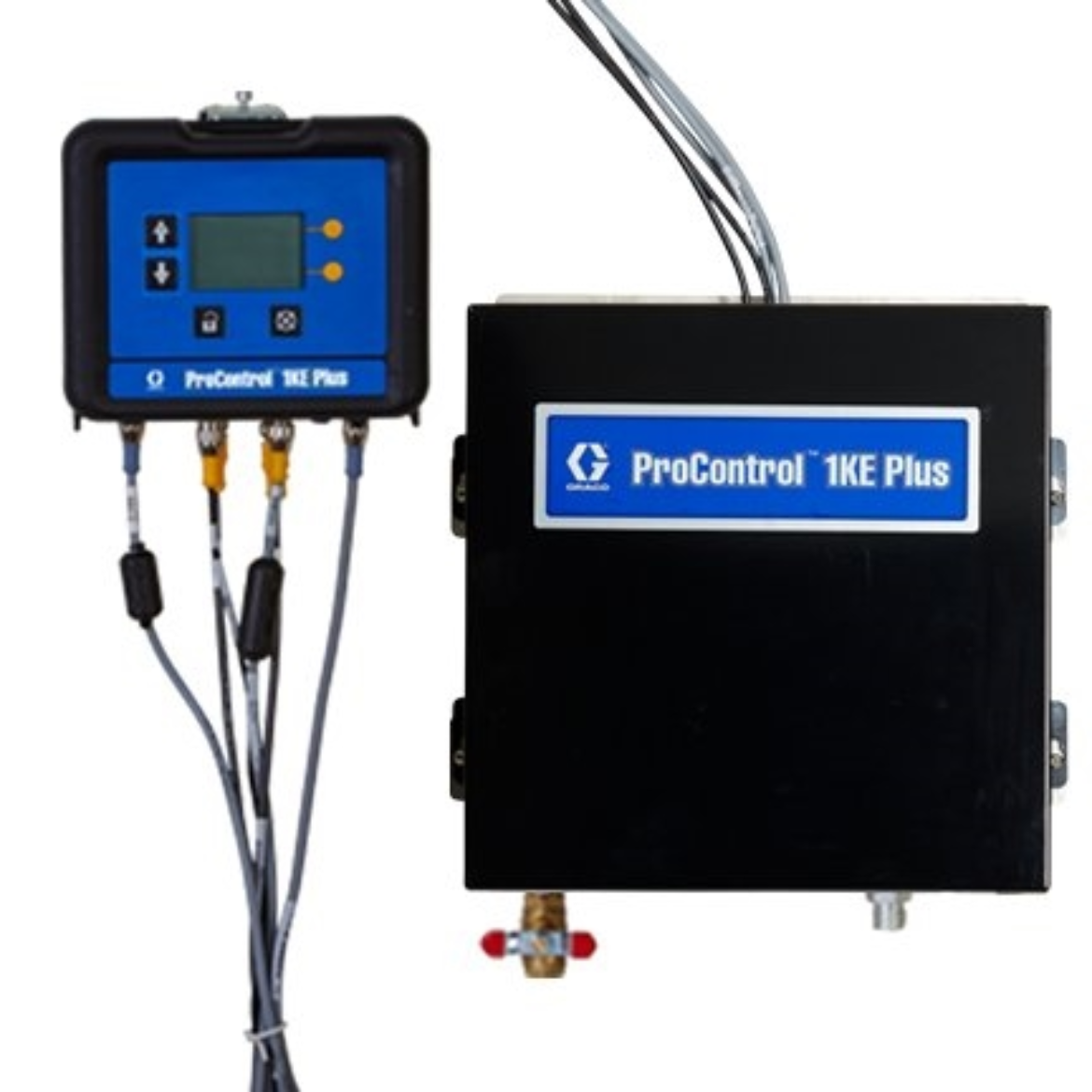

Graco 25B298 ProControl 1KE Plus Closed Loop Fluid Pressure/Flow & Atomizing Air Control, ADCM, G3000, Air Regulator, Pressure Transducer, 2 I/P's
This ProControl 1KE Plus package makes one component (1K) fluid management simple and cost-effective. Add component(s) to customize for specific finishing needs.
- Atomizing air control helps manual or automatic paint spray guns consistently produce a high quality finish.
- Flow monitor tracks precisely how much material goes through fluid lines, so that you can improve finishing processes and reduce waste.
- Advanced Display Control Module (ADCM) gives operator instant feedback by showing comprehensive system parameters and material usage on an easy-to-read screen.
- Model: ProControl
- Series: 1KE Plus
- Control Box Voltage (V dc): 15
- Flow Control Type: Fluid Flow Control with Atomizing Air Control
- Maximum Air Inlet Pressure (bar): 7
- Maximum Air Inlet Pressure (psi): 100
- Maximum Fluid Inlet Pressure (bar): 7
- Maximum Fluid Inlet Pressure (psi): 100
- Maximum Fluid Inlet Pressure (bar): 7
- Maximum Fluid Inlet Pressure (psi): 100
- Maximum Operating Temperature ( degree C): 50
- Maximum Operating Temperature ( degree F): 120
- Maximum Working Pressure (bar): 7
- Maximum Working Pressure (MPa): 0.7
- Maximum Working Pressure (psi): 100
- Minimum Operating Temperature ( degree C): 0
- Minimum Operating Temperature ( degree F): 32
- Power Source: Order separate
