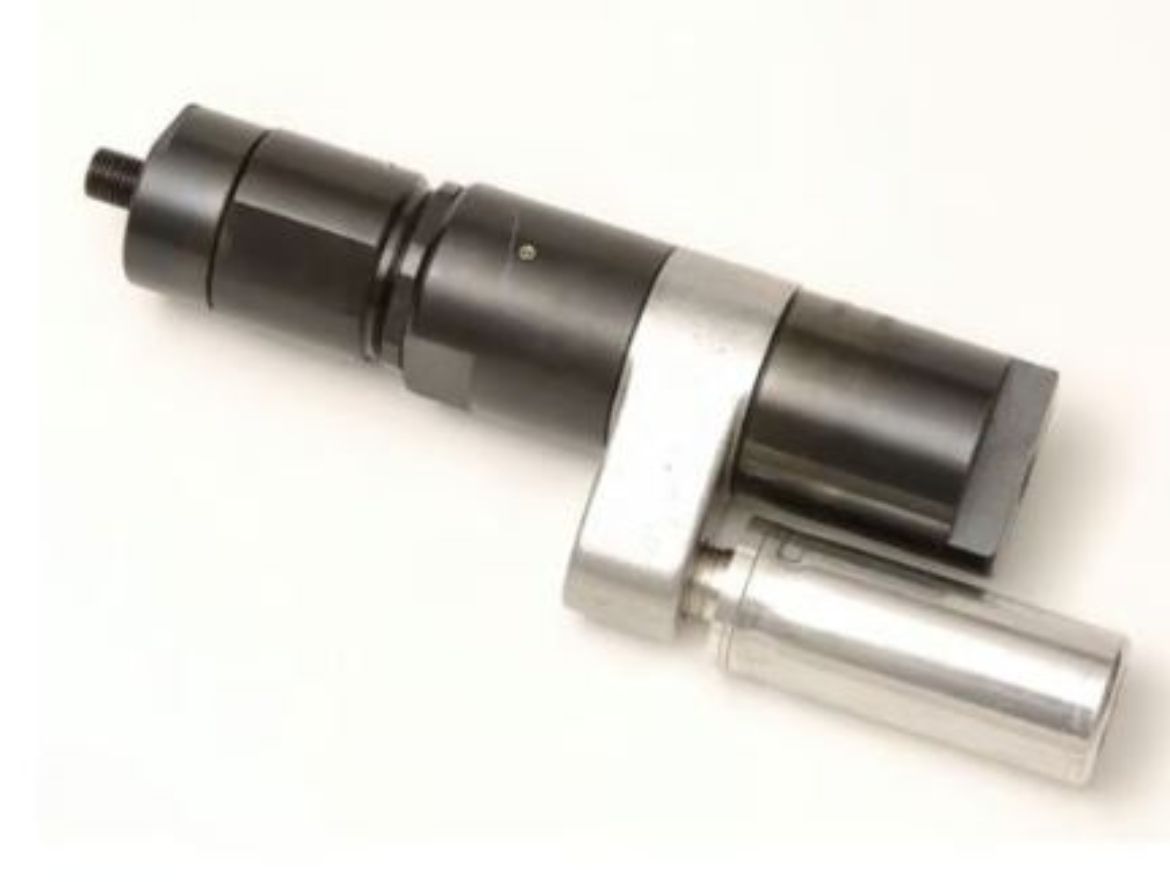

AA 8274-5A
Inline Multi-Vane Air Motor, 7/8" Keyed Shaft, 65 RPM, 0.65 HP, 206 NM, Reversible
Product Application and Uses:
Max torque recommendation requires shear key with 150 ft-lbs shear strength
- Air Consumption at Max HP (scfm): 35
- Air Inlet: 1/4" NPT
- Air Pressure (psi): 90
- Drive Size (in): 7/8
- Drive Type: Round Keyed
- Exhaust Location: Exterior Muffler
- Finish: Black Oxide
- Gear Reduction: Triple
- Gear Train: Planetary
- Max Free Speed (rpm): 65
- Max Pressure (bar): 6.2
- Max Torque (ft-lb): 152
- Max Torque (in-lb): 1823
- Max Torque (nm): 206
- Motor: Rotary Vane
- Motor: In line
- Mounting Type: Face
- Number of Mounting Holes: 4
- Power Source: Air Powered
- Product Weight (lb): 14.5
- Rated Power (hp): 0.65
- Rated Power (kW): 0.48
- Reversible: Reversible
- Sound Level dB(A): 83
- Speed at Max Power (rpm): 35
- Torque Output @ Max HP (ft-lb): 99
- Torque Output @ Max HP (nm): 134
- Warranty: 1-year
