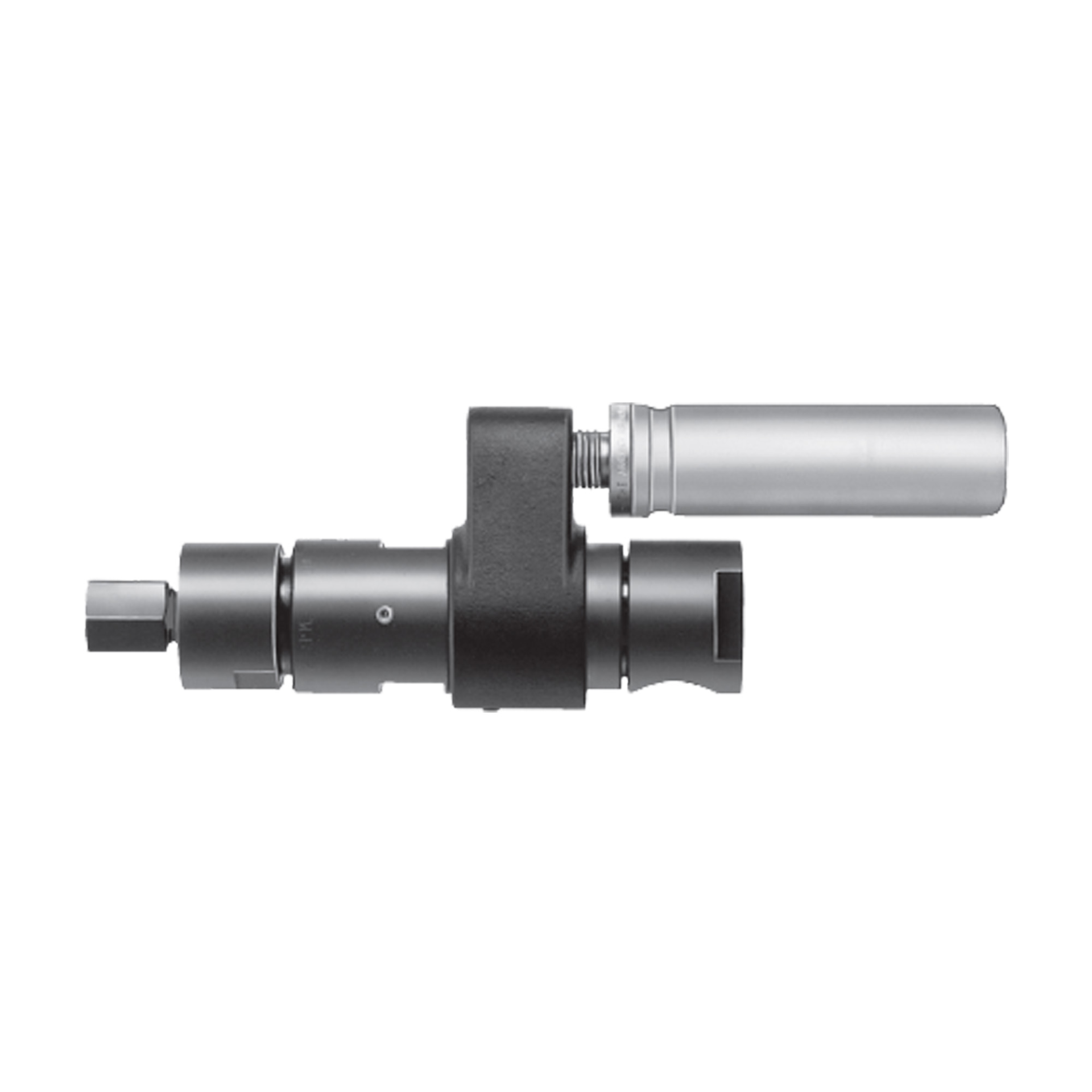

IR 7803-4B
Milling Air Motor, 3/8" Collet, 1200 RPM, 0.85 HP, 21.9 NM, Non-reversible
Air Consumption at Max HP (scfm): 41.7
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Drive Size (in): 3/8
Drive Type: Collet
Exhaust Location: Exterior Muffler
Finish: Black Oxide
Gear Reduction: Double
Gear Train: Planetary
Housing Material: Steel
Max Free Speed (rpm): 1200
Max Pressure (bar): 6.2
Max Torque (ft-lb): 16
Max Torque (in-lb): 194
Max Torque (nm): 21.9
Motor: Rotary Vane
Motor: Milling
Mounting Type: Base
Number of Mounting Holes: 4
Power Source: Air Powered
Product Weight (lb): 6.39
Rated Power (hp): 0.85
Rated Power (kW): 0.63
Reversible: Non-reversible
Sound Level dB(A): 78
Speed at Max Power (rpm): 600
Torque Output @ Max HP (ft-lb): 7.5
Torque Output @ Max HP (nm): 10.2
Warranty: 1-year
