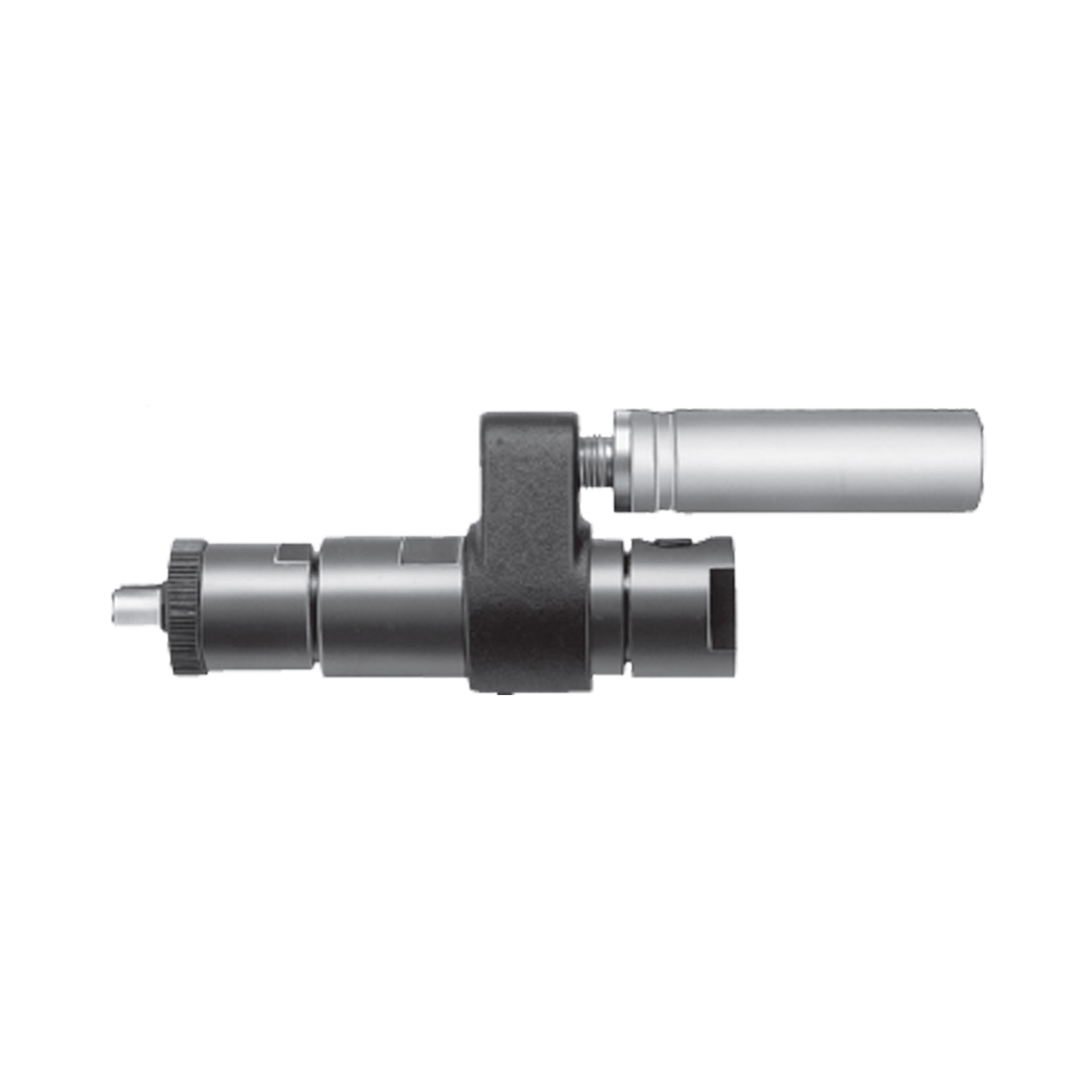

IR 7541-B
Inline Multi-Vane Air Motor, 3/8"-24 Thd Spindle, 4500 RPM, 0.25 HP, 1.4 NM, Non-reversible
Air Consumption at Max HP (scfm): 18.1
Air Inlet: 1/8" NPT
Air Pressure (psi): 90
Arbor/Collet: 3/8"-24 Thread
Drive Type: Round Keyed
Exhaust Location: Exterior Muffler
Finish: Black Oxide
Gear Ratio: 4.83:1
Gear Reduction: Single
Gear Train: Planetary
Housing Material: Steel
Max Free Speed (rpm): 4500
Max Pressure (bar): 6.2
Max Torque (ft-lb): 1.0
Max Torque (in-lb): 12
Max Torque (nm): 1.4
Motor: Rotary Vane
Motor: In line
Mounting Type: Foot Mount Optional
Power Source: Air Powered
Product Weight (lb): 1.52
Rated Power (hp): 0.25
Rated Power (kW): 0.19
Reversible: Non-reversible
Sound Level dB(A): 75
Speed at Max Power (rpm): 2700
Torque Output @ Max HP (ft-lb): 0.5
Torque Output @ Max HP (nm): 0.66
Warranty: 1-year
