IR 7534-2-B

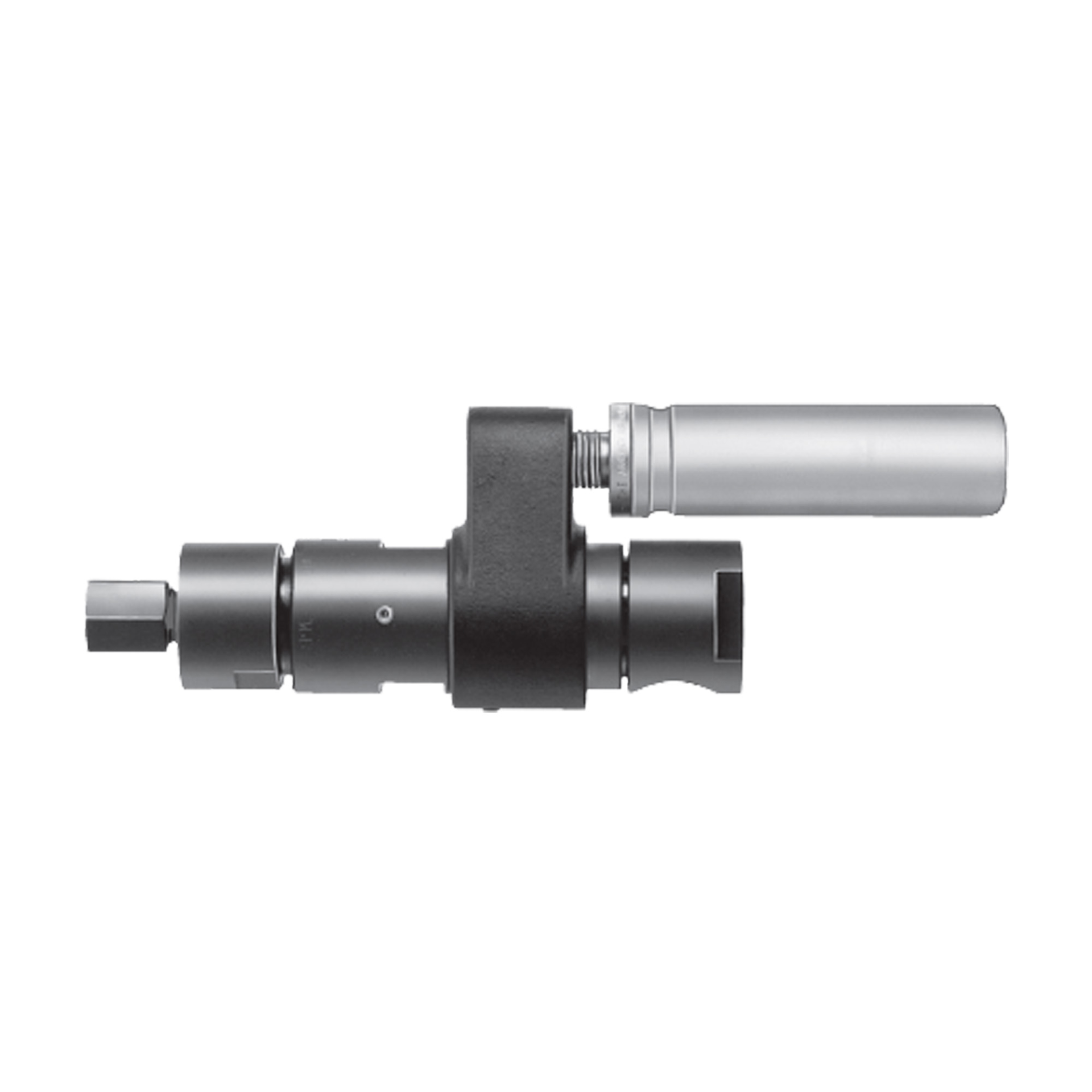

Milling Air Motor, 1/4" Collet, 900 RPM, 0.25 HP, 6.4 NM, Non-reversible
Air Consumption at Max HP (scfm): 18.1
Air Inlet: 1/8" NPT
Air Pressure (psi): 90
Drive Size (in): 1/4
Drive Type: Collet
Exhaust Location: Exterior Muffler
Finish: Black Oxide
Gear Ratio: 23.3:1
Gear Reduction: Double
Gear Train: Planetary
Housing Material: Steel
Max Free Speed (rpm): 900
Max Pressure (bar): 6.2
Max Torque (ft-lb): 4.7
Max Torque (in-lb): 57
Max Torque (nm): 6.4
Motor: Rotary Vane
Motor: Milling
Mounting Type: Foot Mount Optional
Power Source: Air Powered
Product Weight (lb): 0.93
Rated Power (hp): 0.25
Rated Power (kW): 0.19
Reversible: Non-reversible
Sound Level dB(A): 75
Speed at Max Power (rpm): 550
Torque Output @ Max HP (ft-lb): 2.4
Torque Output @ Max HP (nm): 3.2
Warranty: 1-year
