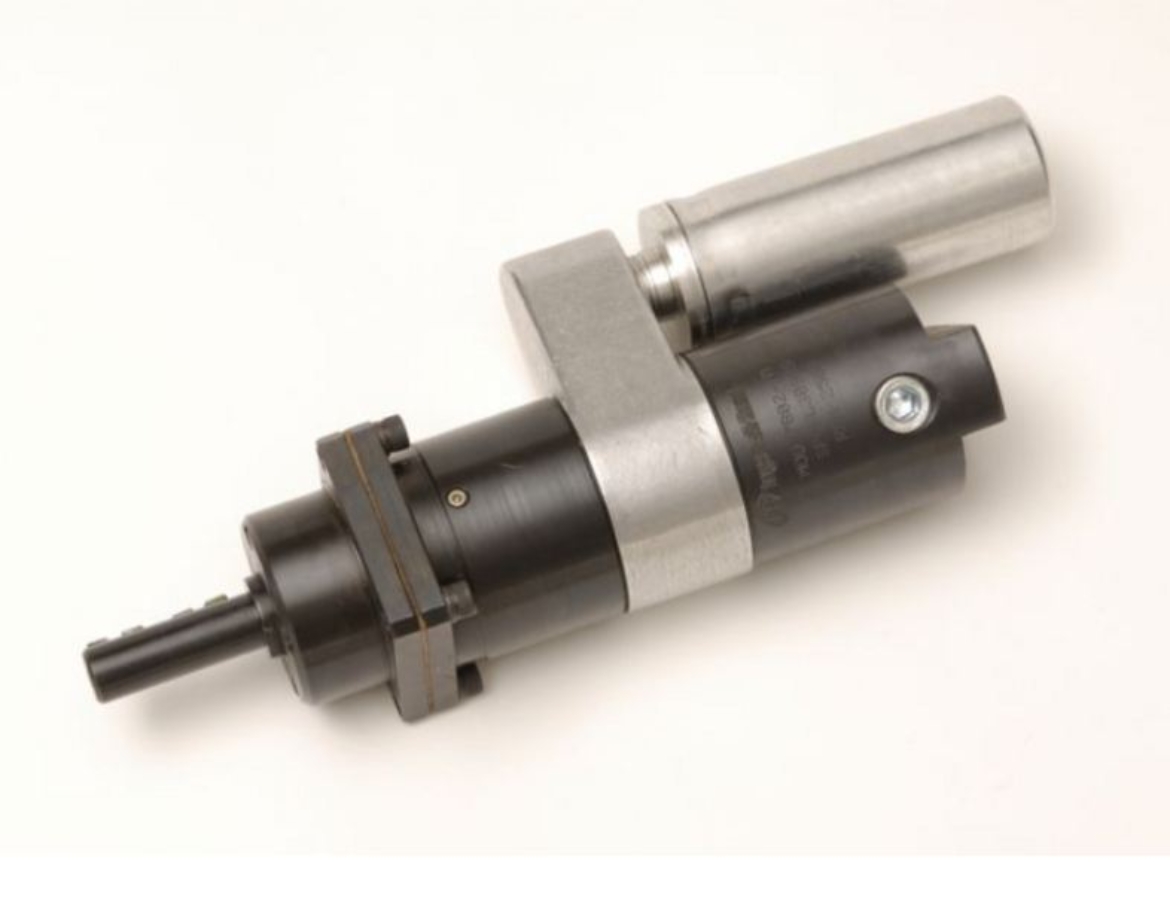

AA 8229-2A
Inline Multi-Vane Air Motor, 3/8"-24 Thd Spindle, 5700 RPM, 0.6 HP, 2.9 NM, Non-reversible
- Air Consumption at Max HP (scfm): 41
- Air Inlet: 1/4" NPT
- Air Pressure (psi): 90
- Arbor/Collet: 3/8"-24 Thread
- Exhaust Location: Exterior Muffler
- Finish: Black Oxide
- Gear Ratio: 3.4:1
- Gear Reduction: Single
- Gear Train: Planetary
- Max Free Speed (rpm): 5700
- Max Pressure (bar): 6.2
- Max Torque (ft-lb): 2.1
- Max Torque (in-lb): 26
- Max Torque (nm): 2.9
- Motor: Rotary Vane
- Motor: In line
- Mounting Type: Foot Mount Optional
- Power Source: Air Powered
- Product Weight (lb): 2.45
- Rated Power (hp): 0.6
- Rated Power (kW): 0.45
- Reversible: Non-reversible
- Sound Level dB(A): 80
- Speed at Max Power (rpm): 2900
- Torque Output @ Max HP (ft-lb): 1.1
- Torque Output @ Max HP (nm): 1.5
- Warranty: 1-year
